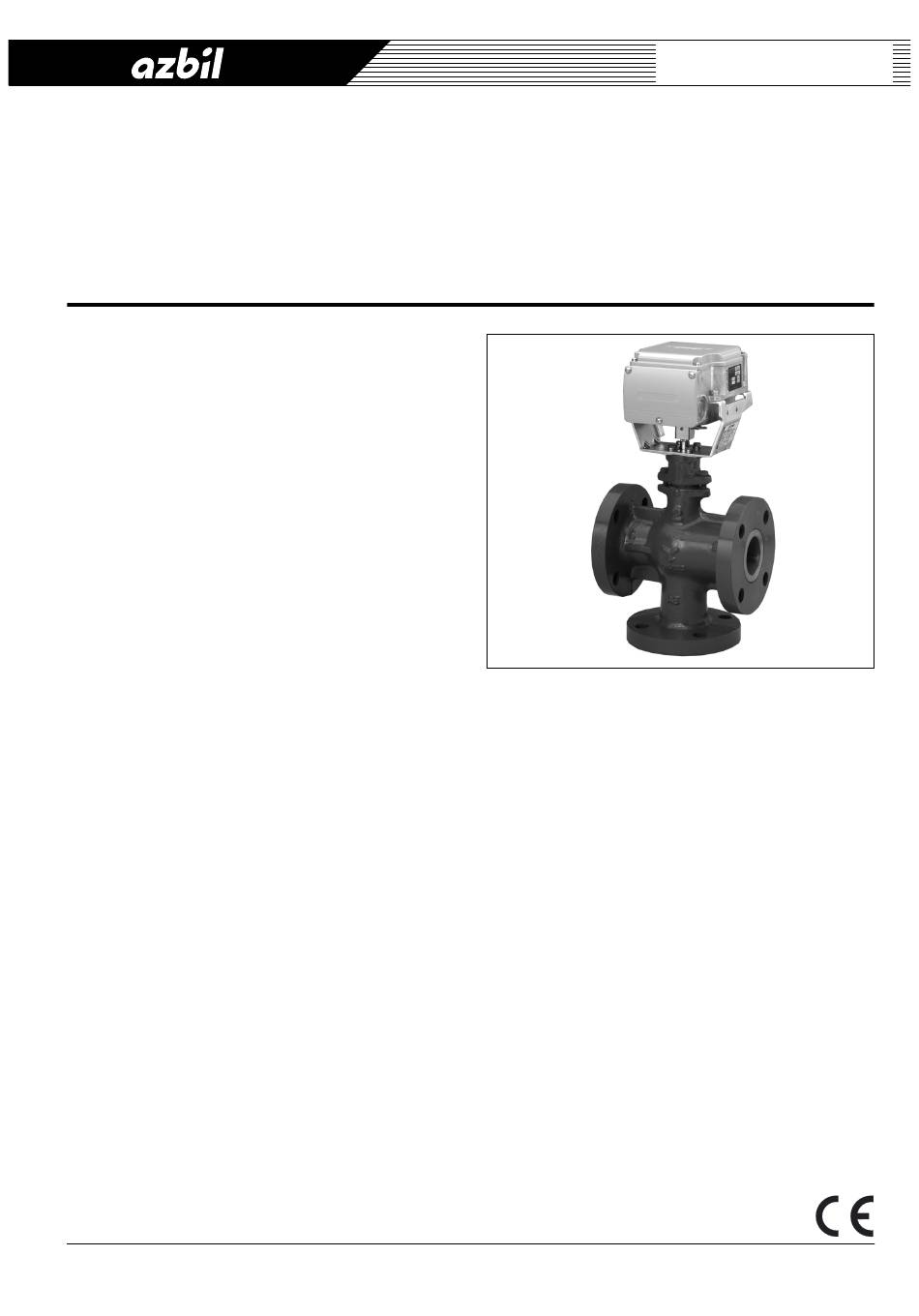

with Flanged-End Connection (JIS 10K / FC200)
General
™
ACTIVAL

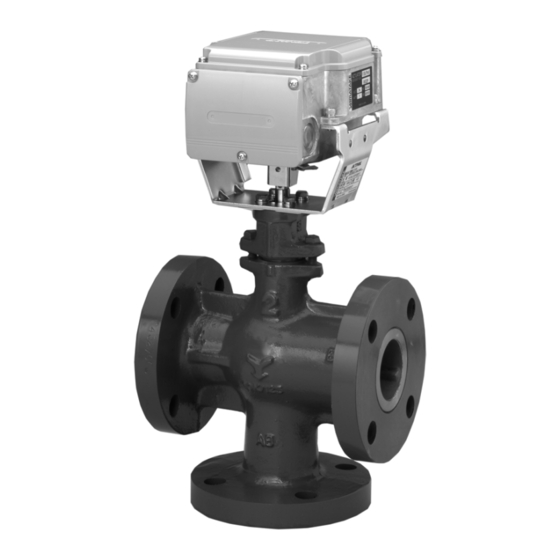

Model VY5460F is a series of motorized three-
way valves with flanged-end connection. Rotary valve and
actuator are integrated in a single unit.
Valve size ranges from DN50 (2") to DN80 (3"), and valve
body rating corresponds to JIS 10K.
Actuator has a reversible synchronous motor, which
operates at a low voltage of 24 V AC.
Model VY5460F communicates with a controller via SAnet
(Azbil Corporation's communication protocol).
∗ Note
JIS: Japanese Industrial Standards
Features
•
Compact and lightweight:
Rotary valve actualizes small body and light weight.
•
Valve and actuator integrated in a single unit:
•
SAnet communication:
Intelligent Component Series ACTIVAL communicates
with a controller via SAnet, and thus position control
signal/ position feedback signal is input/output from/to
the controller.
Intelligent Component Series
ACTIVAL
Motorized Three-Way Valve
™
•
Durable actuator with low power consumption.
•
Linear flow characteristic.
•
Sub-DI and sub-DO for wire saving:
Sub-DIO (digital input and output) provided takes signals,
including humidifying output and differential pressure
switch of neighboring devices, leading to wire saving.
•
CE Marking certified product:
Model VY5460F conforms to all the applicable standards
of CE Marking.
1
AB-6675
Specifications/Instructions
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Azbil ACTIVAL VY5460F Series
Summary of Contents for Azbil ACTIVAL VY5460F Series
- Page 1 JIS 10K. Actuator has a reversible synchronous motor, which operates at a low voltage of 24 V AC. Model VY5460F communicates with a controller via SAnet (Azbil Corporation’s communication protocol). ∗ Note JIS: Japanese Industrial Standards Features •...
-
Page 2: Safety Instructions
This product is targeted for general air conditioning. Do not use this product in a situation where human life may be affected. If this product is used in a clean room or a place where reliability or control accuracy is particularly required, please contact Azbil Corporation’s sales representative. -
Page 3: System Configurations
AB-6675 System Configurations Client PC ® BACnet NC-bus (Max. 25 units and 500 m, but extendable up to 1000 m with the repeater module.) ™ Infilex Model WY5117C SC-bus (Max. 50 units and 1000 m) ™ Infilex Model WY5122 ™ ™... -
Page 4: Model Numbers
AB-6675 Model Numbers Model VY5460F00XX is the model for the valve and actuator integrated into a single unit. The model number label is attached to the yoke. Base Actuator/valve Actuator Valve ⎯ model Description Control Rating/ Nominal ⎯ Type number signal material size/Cv... -
Page 5: Actuator Specifications
AB-6675 Actuator specifications Item Specification 24 V AC ± 15 %, 50 Hz/60 Hz Power supply Power consumption 10 VA 63 ± 5 sec (50 Hz) / 53 ± 5 sec (60 Hz) Timing Control signal SAnet Sub-DI Input type Potential free (dry) contact input (contact input) Voltage, current... -
Page 6: Wire Specifications
AB-6675 Valve and actuator (as a single unit) specifications Item Specification Transport/storage conditions Environmental conditions Rated operating condition Limit operating condition (packaged* -20 °C to 50 °C -20 °C to 60 °C -20 °C to 70 °C Ambient temperature* Ambient humidity 5 %RH to 95 %RH Vibration 4.9 m/s... -
Page 7: Parts Identification
AB-6675 CE Marking Conformity This product complies with the following Electromagnetic Compatibility (EMC). EMC : EN61000-6-2, EN55011 Class A Dimensions Min. 300 Min. 300 Min. 600 Min. 300 Min. 300 N × φh φC Note: Leave enough clearance for maintenance and wire connection after installation. -
Page 8: Installation Location
AB-6675 Installation Precautions for installation CAUTION • Installation and wiring must be performed by qualified personnel in accordance with all applicable safety standards. • Install the product in the position as specified in this manual. Excessively tight connection of piping and improper ... -
Page 9: Mounting Position
AB-6675 Mounting position The ACTIVAL can be mounted in any position ranging from upright to sideways (90° tilted). The ACTIVAL should be installed with its actuator vertically positioned above the valve body. (See Fig. 7.) However, the ACTIVAL must be installed always in upright position outdoors. -
Page 10: Application Examples
AB-6675 Application examples For diverting valve application For mixing valve application Figure 9. Example of diverting valve application Figure 10. Example of mixing valve application Installation examples For diverting valve installation For mixing valve installation Upright Upright 90° tilted 90° tilted Figure 11. - Page 11 AB-6675 Procedure to change the actuator mounting position IMPORTANT: • Do not change the combination of the valve, yoke, and actuator. • Set the ACTIVAL (actuator and valve) in 100 % position when changing the mounting position. If the valve in 0 % position is assembled with the actuator in 100 % position, the actuator puts torque on the closed valve, and the gear of the actuator gets damaged.
- Page 12 AB-6675 Wiring WARNING • DANGER: To prevent the risk of severe or fatal electrical shock, always disconnect power source and product power supply before performing any wiring. CAUTION • Installation and wiring must be performed by qualified personnel in accordance with all applicable safety standards.
- Page 13 - For cable connection, use a water-proof connector. Following is the recommended parts Azbil Corporation supplies. Seal connector: Part Nos. 83104346-003, 83104346-004, 83104346-005 - To daisy-chain the SAnet line, use the SAnet cable gland with three ports and the seal connector Azbil Corporation supplies.
- Page 14 AB-6675 Address Setting (Addressing) To SAnet interface module, ACTIVAL Model VY5460F and other Intelligent Component Series devices including ACTIVAL PLUS and damper actuators are connected via SAnet. Set address for the terminal devices (Intelligent Component Series devices) so that the SAnet interface module can recognize all the terminal devices connected. Follow the procedure below to set the address.
-
Page 15: Manual Operation Mode
AB-6675 System Indication Label A part of the product code label can be a system indication label. Clip the part, and write down the name of the system, host controller number of the system, SAnet line number, and address. Then attach the part, as the system indication label, to a location where you can easily check. -
Page 16: Inspection And Troubleshooting
Visually inspect the fluid leakage of the valve and the actuator operations every six months. If any of the problems described in Table 4 are found, take corresponding actions shown in the table. If your problem is not solved by the corresponding action, please contact Azbil Corporation near you. Table 3. Inspection items and details...
