Motorized two-way valve with flanged-end connection (spring return type actuator)

Advertisement

Quick Links

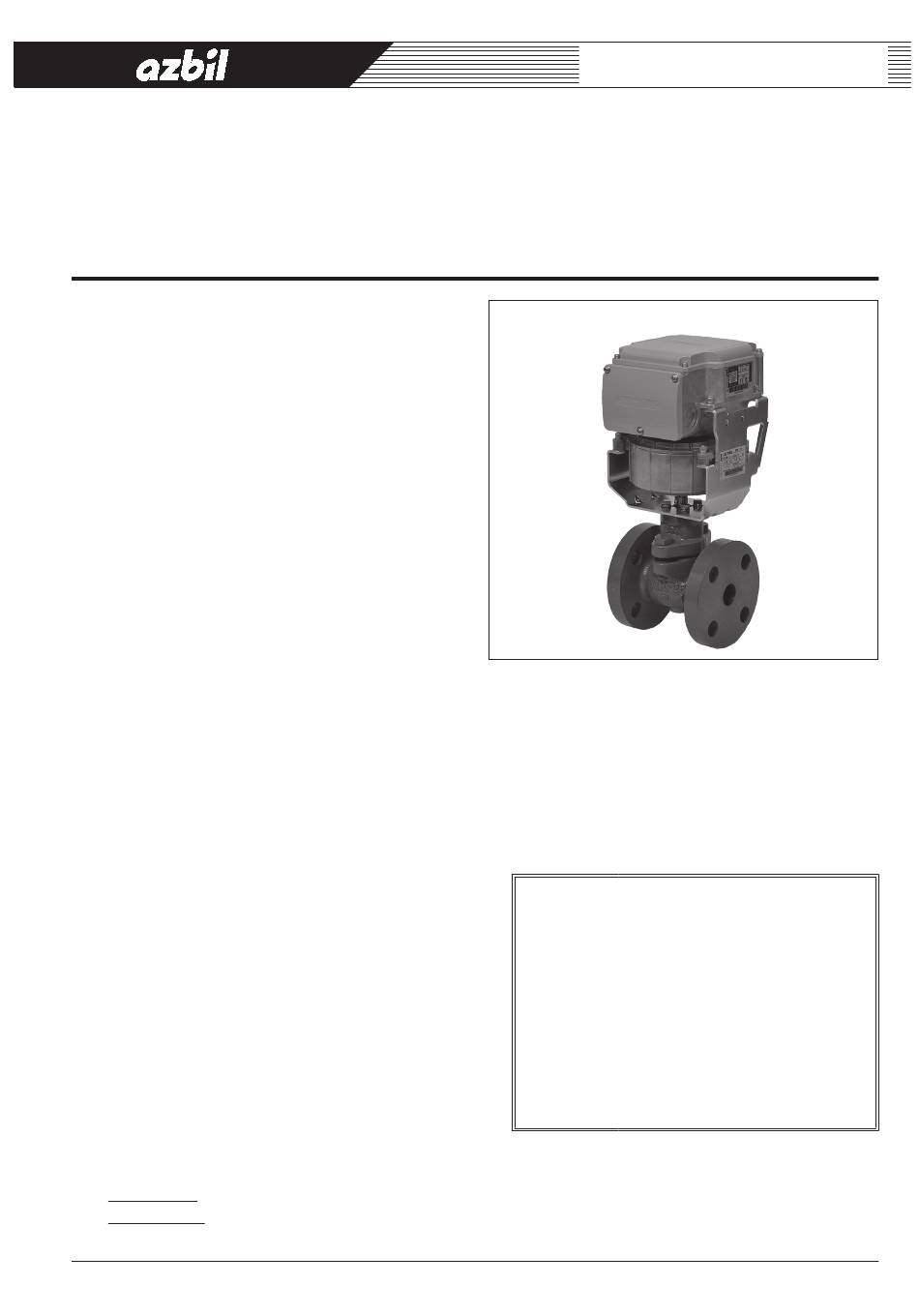

Motorized Two-Way Valve with Flanged-End Connection
<4-20 mA DC Input with 4-20 mA DC Feedback Output>
„ Overview
ACTIVAL model VY519XH/VY519XK is a series
of motorized two-way valves with flanged-end
connection. The valve and actuator are integrated
in a single unit.
Valve size ranges from DN15 (1/2") to DN80 (3"),
and valve body rating corresponds to JIS 10K.
The actuator has a reversible synchronous motor,
which operates at a low voltage of 24 V AC. Since
the actuator fully closes the valve in case of power
failure, it is suitable for failsafe application.
4-20 mA DC input control signal provides proportional
control in combination with a PLC (e.g., Model R35/R36).
* JIS: Japanese Industrial Standards
PLC: Programmable Logic Controller
„ Features
• Compact and lightweight
Rotary motor actualizes small body and light weight.
• Valve and actuator integrated in a single unit
Pre-assembled body requires no adjustment.
• Dust- and splash-proof structure (IEC IP54)
Installable in an AHU.
Note: Waterproof connectors are required to ensure IP54.
• Valve for water/steam control applicable to high
differential pressure, large Cv value, high rangeability,
and low leakage.
• Durable actuator with low power consumption.
• Equal percentage flow characteristics.
• 4-20 mA DC output available for position feedback.
• Open/close changeover for input signal failure:
Actuator fully opens/closes valve in case that the
control signal is not input to the actuator. (Default: Fully
open)
• Direction changeover of control action:
Open/close action by 4-20 mA DC input signal is
reversely controllable.
Normal action 4 mA: 0 % to 20 mA: 100 %
Reverse action 20 mA: 0 % to 4 mA: 100 %.
(Default: Normal action)
ACTIVAL™
(Spring Return Type Actuator)
(JIS 10K-FC200, -SCS13A)
Specifications/Instructions
• Adjustable dead band*:
Dead band width can be narrowed to more precisely
operate valve actuator.
* Actuator is not operated by input signal changed less than
a certain amount. This amount of change is called dead
band.
• Spring return actuator:
Actuator automatically closes the valve in 0 % position
in case that the power is down.
IMPORTANT
• The service life of ACTIVAL operated
w i t h s m a l l d e a d b a n d c a n b e
shortened since the ACTIVAL operates
more frequently with small dead band
than with normal dead band.
• Use shielded cable for the ACTIVAL
with small dead band. Noise may
a ff e c t t h e s i g n a l t r a n s m i s s i o n
causing operation error, otherwise.
• To control ACTIVAL with a third-party
controller, please consult with Azbil
Corporation's sales personnel.
© 2007-2020 Azbil Corporation. All Rights Reserved.
1
AB-6912

Advertisement

loading
Need help?

Need help?

Do you have a question about the ACTIVAL VY519XH and is the answer not in the manual?

Questions and answers

Summary of Contents for Azbil ACTIVAL VY519XH

  • Page 1 Open/close action by 4-20 mA DC input signal is reversely controllable. Normal action 4 mA: 0 % to 20 mA: 100 % Reverse action 20 mA: 0 % to 4 mA: 100 %. (Default: Normal action) © 2007-2020 Azbil Corporation. All Rights Reserved.
  • Page 2 Azbil Corporation. When handling or transporting any heavy product (more than 18 kg), carefully move Azbil Corporation bears no responsibility for any the product with a hand truck or the like, or  result, or lack of result, deriving from the customer's with 2 or more people.
  • Page 3 AB-6912 CAUTION CAUTION Install, wire, and use this product under Before wiring, setting, maintenance, or  the conditions specified by this manual. replacement, be sure to turn off the power to  Failure to do so may cause fire or device this product.
  • Page 4 AB-6912 „ Model Numbers Model VY519XK00XX/VY519XH00XX is the model for the valve and actuator integrated into a single unit. The model number label is attached to the yoke. Base Actuator/valve Actuator Valve Description model Control Rating/ Type — Nominal number signal material size/Cv...
  • Page 5 * 2 Either of an auxiliary switch or an auxiliary potentiometer can be added, but not both. For details, refer to the user's manual attached to the product. * 3 If the applied current exceeds 100 mA, please contact Azbil Corporation.
  • Page 6 AB-6912 „ Specifications z Valve and actuator Item Specification Operating conditions Rated operating conditions Ambient −20 to 50°C (Fluid temperature: 0 to 150°C) temperatu- −20 to 40°C (Fluid temperature: 150 ~ 175°C) Ambient 5 to 95 %RH humidity Vibration 4.9 m/s (10 to 150 Hz) Transport storage conditions Ambient...
  • Page 7 AB-6912 z Valve Item Specification Type Two-way valve with flanged-end connection Body pressure rating JIS 10K (Max. pressure: 1.0 MPa) Size, Cv, Close-off Model number Nominal size Close-off ratings ratings VY519_K00 DN15 (1/2”) 1.0 MPa Note: Close-off ratings DN15 (1/2”) of the actuator in DN15 (1/2”) combination are...
  • Page 8 AB-6912 z Actuator Item Specification Power supply 24 V AC ± 15 %, 50 Hz/60 Hz Power consumption 16 VA Type Spring return actuator for standard and high differential pressure application Service life of spring 30,000 operations return action Valve travel time 63 ±...
  • Page 9 AB-6912 „ Dimensions z Model VY5195K/VY5195H (JIS FC200 valve) Min. 500 Min. 300 N×φh φC φD Flow direction *1 Clearance for maintenance. *2 If you do not need to open the top cover and set the selector switches after installing the valve, it is OK to leave only 100 mm of clearance. Figure 1 Dimensions (mm) Table1 Dimensions (mm) Model VY5195K00_ _...
  • Page 10 AB-6912 z Model VY5196K/VY5196H (JIS SCS13A valve) Min. 500 Min. 300 N×φh φC φD Flow direction *1 Clearance for maintenance. *2 Leave a clearance of 100 mm if you do not open the top cover (to set the selector switches) after the ACTIVAL is installed Figure 2 Dimensions (mm) Table3 Dimensions (mm) Model VY5196K...
  • Page 11 AB-6912 „ Parts Indication Top cover Top cover Actuator Terminal cover Knockout hole Pointer Spring unit Yoke Gland packing Stem Bonnet Valve body Seat ring Plug Figure 3 Parts indication...
  • Page 12 AB-6912 „ Setting On the PCB (printed circuit board) of the actuator, the selector switches are provided. CAUTION  Before beginning setup work, be sure to turn off the power to this product. Failure to do so may result in electric shock or device failure. ...
  • Page 13: Precautions For Installation

    AB-6912 „ Installation IMPORTANT • Position the pipes so that drainage does not accumulate next to the valve.If there WARNING is remaining drainage, the valve or pipes may be damaged by steam hammer or When handling or transporting any heavy corrosion.
  • Page 14: Heat Insulation

    AB-6912 z Piping (3) Fully open the valve and flush the pipes at the maximum flow rate. When fluid flows for the first time, it is to clean out the foreign matter and refuse in the pipes. WARNING The valve is set to fully open when it is shipped from When handling or transporting any heavy the factory.
  • Page 15: Wiring Procedure

    AB-6912 „ Wiring z Wiring procedure (1) Select a knockout hole according to the wire outlet CAUTION direction, and open a knockout hole. Two knockout holes are provided on the bilateral sides Provide a circuit protector (e.g., a fuse or of the actuator.
  • Page 16 - Note: Terminals 2, 5, and 7 are connected inside the actuator Figure 9 Terminals connection of Model VY519XK/VY510XH „ Connection Examples (Connection to Azbil Corporation’s R series controller) Connection to Model R35TC0/R36TC0 Connection to Model R35TC0/R36TC0 (Parallel operation) Isolation...
  • Page 17 AB-6912 Figure 10 „ Internal Connection of Auxiliary Switch / Auxiliary Potentiometer z Auxiliary switch Part No. 83174063-101 N.C. Common N.O. N.C. Common N.O. Switches A and B actuating position: Adjustable between 0 % (fully closed) and 100 % (fully open) Figure 11 Internal connection of auxiliary switch z Auxiliary potentiometer Part No.
  • Page 18 • Visually inspect the fluid leakage of the valve and the actuator operations every six months. If any of the problems described in Table 6 are found, take corresponding actions shown in the table. If your problem is not solved by the corresponding action, please contact Azbil Corporation near you. Table5 Inspection items and details...
  • Page 19 AB-6912 Table6 Troubleshooting Problem Part to check Action Fluid leaks from the flange face. Loosened flange bolts Tighten the flange bolts. Gasket on the flange face Replace the gasket. Misaligned piping Redo piping. Fluid leaks from the gland part. — Consult with our sales personnel.
  • Page 20 Directive (EMCD) and the RoHS Directive (RoHSD) EMCD: EN61000-6-2 EN55011 Class A, Group RoHSD: EN 50581 ACTIVAL is a trademark of Azbil Corporation Japan or in other countries. Building Systems Company https://www.azbil.com/ AB-6912 Rev. 7.0 Jul. 2020 Specifications are subject to change without notice.
