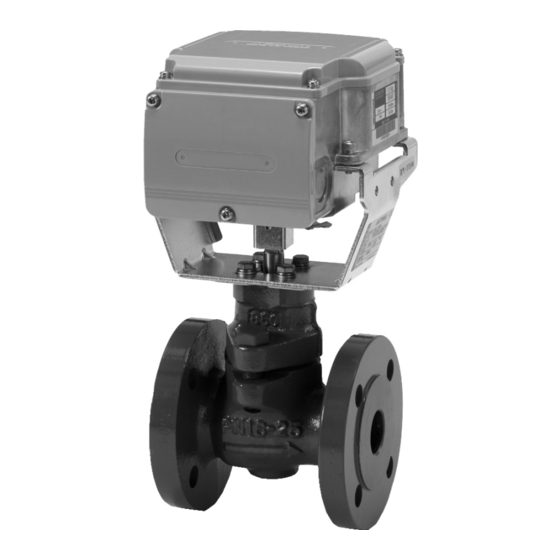

Motorized two-way valve with flanged-end connection
Hide thumbs Also See for ACTIVAL VY51 J Series:

Advertisement

Quick Links

Download this manual

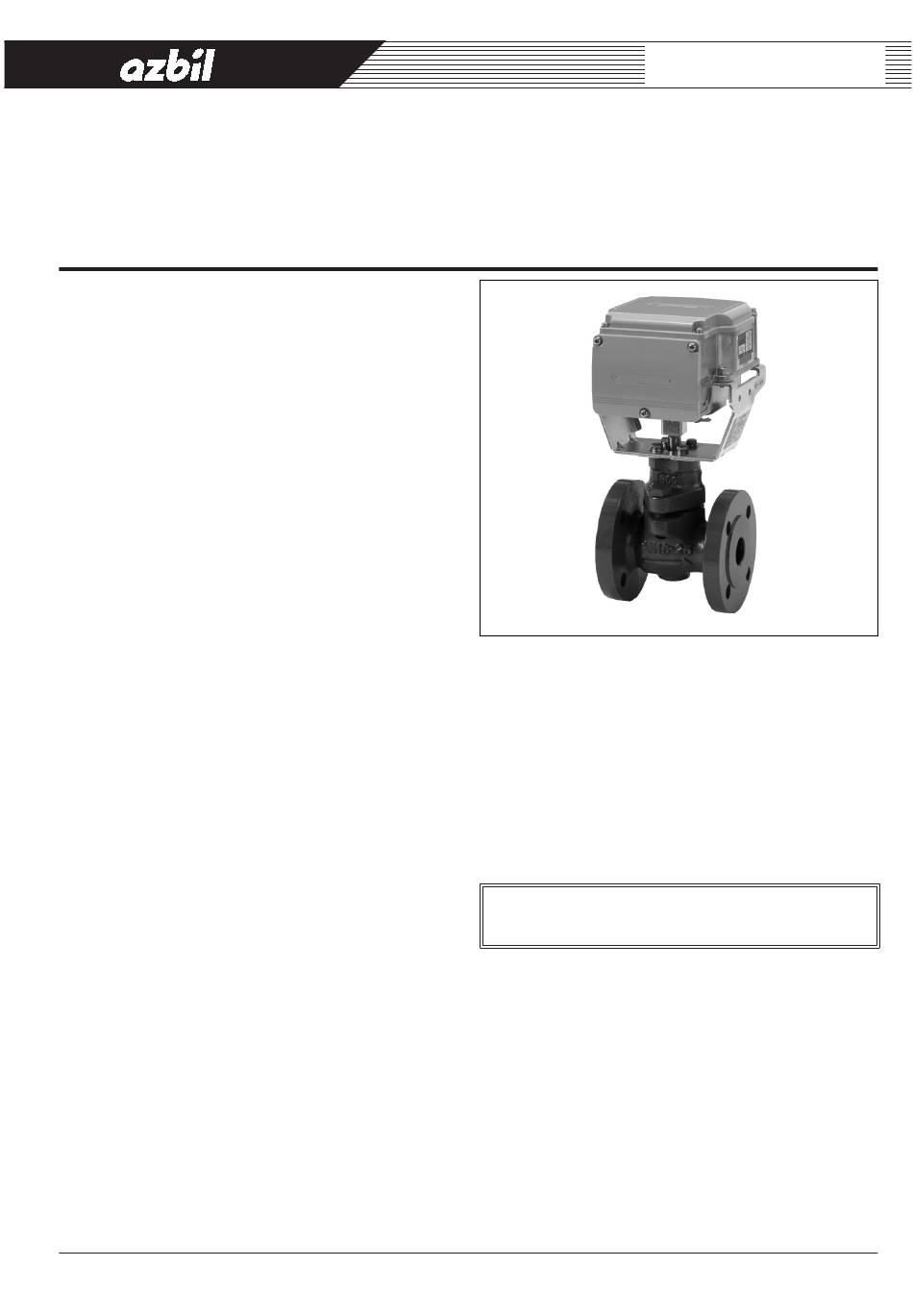

Motorized Two-Way Valve with Flanged-End Connection
„ Overview
TM
ACTIVAL
Model VY51_ _J is a series of motorized two-
way valves with flanged-end connection. Rotary valve and
actuator are integrated in a single unit.
Valve size ranges from DN15 (1/2") to DN80 (3"), and
valve body rating corresponds to ISO PN16.
Actuator has a reversible synchronous motor, which
operates at a low voltage of 24 V AC.
5 kinds of control signals are available to operate
ACTIVAL.
● Nominal 135 Ω feedback potentiometer (built-in):
Provides proportional control in combination with a
DDC controller (e.g., Infilex
● Nominal 135 Ω resistance input:
Provides proportional control in combination with a
proportional controlled electric controller (e.g., Neostat
Model TY900_Z, Model TY9800).
● 4-20 mA DC input:
Provides proportional control in combination with a
DDC controller (e.g., Infilex
Model R35/ R36).
● 2-10 V DC input:
Provides proportional control in combination with a
DDC controller (e.g., Infilex
● 0-10 V DC input:
Provides proportional control in combination with a
DDC controller.
„ Features
● Compact and lightweight
● Valve and actuator integrated in a single unit
● Dust- and splash-proof structure (IEC IP54)
Installable in an AHU.
Note: Waterproof connectors are required to ensure IP54.
● A variety of control signals available
● Durable actuator with low power consumption
● 2–10 V DC output with feedback signal
Only for the 4–20 mA DC input type (model VY513_),
the 2–10 V DC input type (model VY514_), and the
0–10 V DC input type (model VY515_)
● Equal percentage flow characteristic
● Valve for water/steam control applicable to high
differential pressure, with large Cv value, wide
rangeability, and low leakage.
ACTIVAL
(PN16 / GG-20)
TM
GC Model WY5111).
TM
GC Model WY5111,
TM
AC Model WY5117).
TM
IMPORTANT
• If you want to use this product combined
with a third party's controller, please
contact Azbil corporation.
© 2010–2020 Azbil Corporation. All Rights Reserved.
1
AB-7057
Specifications/Instructions

Advertisement

loading
Need help?

Need help?

Do you have a question about the ACTIVAL VY51 J Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Azbil ACTIVAL VY51 J Series

Summary of Contents for Azbil ACTIVAL VY51 J Series

  • Page 1 2–10 V DC input type (model VY514_), and the 0–10 V DC input type (model VY515_) ● Equal percentage flow characteristic ● Valve for water/steam control applicable to high differential pressure, with large Cv value, wide rangeability, and low leakage. © 2010–2020 Azbil Corporation. All Rights Reserved.

  • Page 2: Safety Precautions

     CAUTION For system design, application design, instructions Provide a circuit protector (e.g., a fuse or circuit for use, or product applications, please contact Azbil breaker) for the power source.  Corporation. Failure to do so may cause a short circuit leading to fire or device failure.
  • Page 3 AB-7057  CAUTION Use crimp terminals with insulation for connections to the product terminals.  Failure to do so may cause short circuit leading to fire or device failure. Tighten the terminal screws with the specified torque.  Insufficient tightening of the terminal screws may cause fire or overheating.
  • Page 4 *1 Required to maintain IP54. *2 Either the auxiliary switch or auxiliary potentiometer can be added, but not both. For details, refer to the user's manual attached to the product. *3 If the applied current exceeds 100 mA, please contact Azbil Corporation.
  • Page 5 AB-7057 „ Specifications  Valve and actuator Item Specification −20 to 50 °C Operating conditions (Fluid temperature 0 °C to 150 °C) Ambient temperature −20 to 45 °C Rated operating condition (Fluid temperature 150 to 175 °C) Ambient humidity 5 to 95 %RH Vibration 4.9 m/s (10 to 150 Hz)
  • Page 6 AB-7057  Valve Item Specification Type Two-way valve with flanged-end connection (raised face flange), proportional control Body pressure rating PN16 (Max. working pressure: 1.6 MPa) Size, Cv, Close-off rating Model number Nominal size Close-off ratings VY51_ _J00 DN15 (1/2”) 1.0 MPa DN15 (1/2”) DN15 (1/2”) DN15 (1/2”)
  • Page 7 AB-7057  Actuator Item Specification Power supply 24 V AC ± 15 %, 50 Hz/60 Hz Power consumption Nominal 135 Ω feedback 7 VA potentiometer type Nominal 135 Ω resistance input type 8 VA 4-20 mA DC input type 2-10 V DC input type Type For valve size DN15 to Standard torque type...
  • Page 8 AB-7057 „ Dimensions Min. 300* Min. 100* N × φh Flow direction *1 Clearance for maintenance. *2 Leave a clearance of 300 mm if you open the top cover after installation (e.g., to set the auxiliary switch). Figure 1. Dimensions (mm) Table 1.
  • Page 9 AB-7057 „ Installation In addition, observe the following cautions. ● Install a bypass pipe and gate valves on the inflow,  WARNING outflow, and bypass sides. When handling or transporting any heavy product ● Install the product in a position allowing easy access for (more than 18 kg), carefully move the product with maintenance and inspection.
  • Page 10 AB-7057  Piping  Factory preset position Actuator shaft: fully open  CAUTION Pointer: competely turned clockwise When installing this product, hold it in the proper position and securely fasten it to the pipes.  Excessive tightening or improper installation position may damage the valve.
  • Page 11 AB-7057  Changing the actuator mounting position 5) Align the yoke to the desired orientation. Orientation of the actuator can be changed by 90° steps IMPORTANT • Do not change the combination of the from the factory preset position. (0°/90°/180°/270°) valve, yoke, and actuator.
  • Page 12 AB-7057 „ Wiring  Control signals type The type of control signals is printed on the actuator label  CAUTION and the wiring diagram label as shown below. Provide a circuit protector (e.g., a fuse or circuit Nominal 135 Ω feedback potentiometer (F F.B.
  • Page 13 AB-7057 „ Terminals connection  Nominal 135 Ω feedback potentiometer  Nominal 135 Ω resistance input (Model VY511_J) (Model VY512_J) CLOSE OPEN CLOSE OPEN Free Free Free ～ ⊥ ～ Feedback outputs 24 V AC power ～ (to controller) To controller 24 V AC power Figure 11 Note: Controller that receives voltage between the terminals 4 and 6 as...
  • Page 14 AB-7057 „ Wiring Examples  4–20 mA DC input (Model VY513_)  Nominal 135 Ω feedback potentiometer Power transformer ～ (Model VY511_J) ～ ⊥ CLOSE(0) ① OPEN(100) ② ＊2 ＋ AC24V ⑬ ＋ ③ ＊1 － ④ CLOSE ⑭ － ⑤...
  • Page 15 AB-7057  0–10 V DC input (Model VY515_) Single [ACTIVAL + a third-party controller with 0–10 V DC output + transformer) ～ Power ⊥ Isolation transformer ＋ ＋ ＋ ＋ － ＊2 － － － Controller Isolator ＋ ＊1 0-10 V DC output (if necessary) －...
  • Page 16 AB-7057 „ Advanced Wiring Examples Summer-winter changeover  Nominal 135 Ω resistance input Power transformer (Model VY512_) ～ ～ Minimum opening setting ⊥ Power transformer ～ ～ CLOSE × ⊥ × OPEN Proportional controller for summer CLOSE (Model TY900_Z) ＊ OPEN ACTIVAL 135 Ω...
  • Page 17 AB-7057  4–20 mA DC input Power is shared (Model VY513_) 1 ～ ⊥ Precautions ● Power transformer is shared ⑬ ＋ ＋ ＋ ＋ ＊2 If a power transformer is shared by two products, connect － ⑭ － － －...
  • Page 18 AB-7057  2–10 V DC input Power is shared (Model VY514_) 1 ～ ＊3 ⊥ Precautions Model WY5117 ● Power transformer is shared (＋)  ＋ ＋ ＋ If a power transformer is shared by two products, connect ＊2 － (com) ...
  • Page 19 AB-7057  0-10 V DC input) (Model VY515_) Multiple [ACTIVAL + third-party controller with 0-10 V DC output] + single transformer ～ ⊥ Isolator* Controller with 0-10 V DC output (if necessary) Model VY515_ (0-10 V DC input with Isolator* 2-10 V DC output type) Position indicator (if necessary)
  • Page 20 AB-7057 Multiple ACTIVAL + single third-party controller with 0-10 V DC output + single transformer Isolation transformer ～ Power ⊥ Isolator* Controller with (if necessary) 0-10 V DC output Model VY515_ (0-10 V DC input with Isolator* 2-10 V DC output type) Position indicator (if necessary) ～...
  • Page 21 AB-7057 ACTIVAL × 2 + single third-party controller (0-10 V DC output)+ single transformer shared with controller (System common wiring) ～ ∼ ⊥ ⊥ Controller with 0-10 V DC output Isolator* Position indicator Model VY515_ (if necessary) (0-10 V DC input with 2-10 V DC output type) ～...
  • Page 22 AB-7057 „ Internal Connection of Auxiliary Switch / Auxiliary Potentiometer  Auxiliary switch Part No. 83174063-101 N.C. Common N.O. N.C. Common N.O. Switches A and B actuating position: Adjustable between 0 % (fully closed) and 100 % (fully open) Figure 31. Internal connection of auxiliary switch ...
  • Page 23 ● Visually inspect the fluid leakage of the valve and the actuator operations every six months. If any of the problems described in Table 3 are found, take corresponding actions shown in the table. If your problem is not solved by the corresponding action, please contact Azbil Corporation near you. Table 2. Inspection items and details...
  • Page 24 Dispose of this product as industrial waste in accordance with your local regulations. Do not reuse all or any part of the product. Building Systems Company 1-12-2 Kawana, Fujisawa, Kanagawa 251-8522 JAPAN https://www.azbil.com/ AB-7057 Rev. 6.0 Jul. 2020 Specifications are subject to change without notice. (J: AI-7057MJ Rev.0.0)
