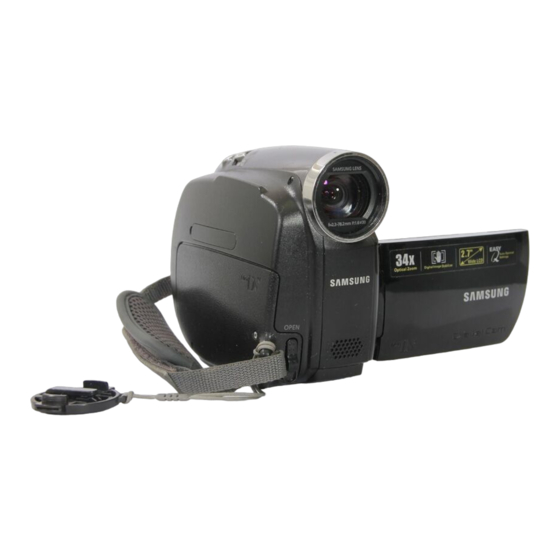

Samsung VP-D391 User Manual

Digital video camcorder
Hide thumbs Also See for VP-D391:
Table of Contents

Advertisement

Quick Links

Digital Video Camcorder

user manual

imagine
the possibilities
Thank you for purchasing this Samsung product.
To receive more complete service, please register
your product at
www.samsung.com/global/register
VP-D391( i )
VP-D3910
VP-D392( i )
VP-D395i

Advertisement

Table of Contents
loading

Related Manuals for Samsung VP-D391

Summary of Contents for Samsung VP-D391

  • Page 1: User Manual

    Digital Video Camcorder user manual imagine the possibilities Thank you for purchasing this Samsung product. To receive more complete service, please register your product at www.samsung.com/global/register VP-D391( i ) VP-D3910 VP-D392( i ) VP-D395i...
  • Page 2 key features of your miniDV camcorder FEATURES OF YOUR NEW MINIDV CAMCORDER Digital Data Transfer Function with IEEE1394 By incorporating the IEEE 1394 (i.LINK™: i.LINK is a serial data transfer protocol and interconnectivity system, used to transmit DV data) high speed data transport port, both moving and photo images can be transferred to a PC, making it possible to produce...

  • Page 3: Safety Warnings

    safety warnings What the icons and signs in this user manual mean : Means that death or serious personal injury is a risk. WARNING Means that there is a potential risk for personal injury or material damage. CAUTION To reduce the risk of fi re, explosion, electric shock, or personal injury when using your miniDV camcorder, follow these basic safety precautions: CAUTION Means hints or referential pages that may be helpful when operating the miniDV camcorder.

  • Page 4: Notes And Safety Instructions

    notes and safety instructions NOTES REGARDING THE VIDEO HEAD CLEANING • To ensure normal recording and a clear picture, clean the video heads regularly. If a square block-shape distorts playback, or only a blue screen is displayed, the video heads may be dirty. If this happens, clean the video heads with a dry type cleaning cassette.

  • Page 5: Notes Regarding Camcorder

    SERVICING & REPLACEMENT PARTS • Do not attempt to service this camcorder yourself. • Opening or removing covers may expose you to dangerous voltage or other hazards. • Refer all servicing to qualifi ed service personnel. • When replacement parts are required, be sure the service technician has used replacement parts specifi ed by the manufacturer and having the same characteristics as the original part.

  • Page 6: Table Of Contents

    contents GETTING TO KNOW YOUR MINIDV CAMCORDER PREPARATION INITIAL SETTING : SYSTEM MENU SETTING 02_ English What is included with your miniDV camcorder Front & left view Left side view Right & top view Rear & bottom view Using the remote control (VP-D392( i )/D395i only) Using the hand strap &...
  • Page 7 INITIAL SETTING : DISPLAY MENU SETTING BASIC RECORDING ADVANCED RECORDING Setting the guideline (Guideline) Adjusting the LCD screen (LCD Bright/LCD Colour) Displaying the date/time (Date/Time) Setting the tv display (TV display) Inserting / ejecting a cassette Various recording techniques Making your fi rst recording Recording with ease for beginners (EASY.Q mode) Zooming in and out Searching quickly for a desired scene...
  • Page 8 contents CONNECTION DIGITAL STILL CAMERA MODE (VP-D395 i ONLY) 04_ English Setting the digital image stabilizer (DIS) Using back light compensation mode (BLC) Zooming in and out with digital zoom (Digital Zoom) Using the colour nite (C.Nite) Using the light (Light) (VP-D392( i )/D395i only) Recording a photo image on a tape -tape photo recording Searching for a photo image on a tape (Photo Search) Playing back a tape on the LCD screen...

  • Page 9: Specifications

    PICTBRIDGE™ (VP-D395 i ONLY) IEEE 1394 DATA TRANSFER USB INTERFACE (VP-D385 i ONLY) MAINTENANCE TROUBLESHOOTING SPECIFICATIONS Formatting a memory card (Format) Recording moving images (MPEG) on a memory card Playing the moving images (MPEG) on a memory card (M.Play select) Recording an image from a tape as a photo image Copying a photo image from a tape to a memory card (Photo Copy)

  • Page 10: Getting To Know Your Minidv Camcorder

    (VP-D392( i )/D395i only) • The contents may vary depending on the sales region. • Parts and accessories are available at your local Samsung dealer. • (Option) : This is an optional accessory. To buy this one, contact your nearest Samsung dealer.
  • Page 11 FRONT & LEFT VIEW Lens Remote sensor (VP-D392( i )/D395i only) Light (VP-D392( i )/D395i only) OPEN switch Be careful not to cover the internal microphone and lens during recording. CAUTION O P E N EASY Q button ➥ page 36 Display ( TFT LCD screen Internal microphone...

  • Page 12: Left Side View

    getting to know your miniDV camcorder LEFT SIDE VIEW M E N U MENU button / Select), (W/T) ➥ page 23 Joystick ( Recording start/stop button Jack cover (AV/DV jack) When you close LCD panel with the LCD screen facing out, Joystick ( / / 08_ English B A T Built-in speaker...

  • Page 13: Right & Top View

    RIGHT & TOP VIEW Zoom(W/T) / Volume (VOL) lever PHOTO button ➥page 60,78 Recording start/stop button POWER switch P O W C H G Jack cover (DC IN, USB (VP-D395i only) jack) Cassette compartment cover Hand strap English _09...

  • Page 14: Rear & Bottom View

    getting to know your miniDV camcorder REAR & BOTTOM VIEW MODE POWER DC IN AV jack MODE button Mode indicator (Camera ( DC IN Jack DV (IEEE1394) jack Charging (CHG) indicator USB jack (VP-D395i only) Memory card slot (VP-D395i only) Tripod receptacle 10_ English ) / Player (...
  • Page 15 USING THE REMOTE CONTROL (VP-D392 PHOTO button ➥ page 60,78 REC button SELF TIMER button ➥ page 39 ZERO MEMORY button ➥ page 38 PHOTO SEARCH button ➥page 61 A.DUB button ➥ page 65 (FF) button (REW) button (PLAY) button The buttons on the remote control function the same as those on the miniDV camcorder.

  • Page 16: Preparation

    preparation This section provides information on using this miniDV camcorder: such as how to use the provided accessories, how to charge the battery, how to set up the operation and screen indicators in each mode. USING THE HAND STRAP & LENS COVER It is very important to ensure that the hand strap has been correctly adjusted before you begin your recording.

  • Page 17: Installing The Button-Type Battery

    ATTACHING THE CORE FILTER To reduce electrical interference, attach the core fi lter to the AC power adaptor. • To attach the core fi lter to power adapter, roll the cable over core fi lter once. • Be careful not to damage the cable when attaching the core fi lter. INSTALLING THE BUTTON-TYPE BATTERY Button-type battery installation for the remote control (VP-D392...

  • Page 18: Using The Battery Pack

    It is recommended that you purchase one or more additional battery packs to allow continuous use of your miniDV camcorder. Use only Samsung-approved battery packs. Do not use batteries from other manufacturers. Otherwise, there is a danger of overheating, fi re or explosion.

  • Page 19: Charging Indicator

    • The time is only for reference. Figures shown in the table are measured under Samsung’s test environment, and may differ from your actual use. • The recording time shortens dramatically in a cold environment. The continuous recording times in the operating instructions are measured using a fully charged battery pack at 25 °C (77 °F).

  • Page 20: Battery Level Display

    preparation The amount of continuous recording time available depends on: • The type and capacity of the battery pack you are using. • Ambient temperature. • How often the zoom function is used. • Type of use (camcorder/camera/With LCD screen etc.) •...

  • Page 21: Connecting A Power Source

    • When purchasing a new battery pack, we recommend buying the same battery pack that is provided with this camcorder. The battery pack is available at SAMSUNG retailers. • When the battery reaches the end of its life, please contact your local dealer.

  • Page 22: Basic Minidv Camcorder Operation

    preparation BASIC MINIDV CAMCORDER OPERATION Turning the miniDV camcorder on and off You can turn the camcorder on or off by sliding the POWER switch downward. • Slide the POWER switch repeatedly to toggle the power on or off. Setting the operating modes •...

  • Page 23: Screen Indicators In Camera/Player Modes

    SCREEN INDICATORS IN CAMERA / PLAYER MODES 0:00:00 0:00:00 STBY STBY No Tape ! No Tape ! 1/50 1/50 19 19 C.Nite 1/25 C.Nite 1/25 00:00 1.JAN.2008 00:00 1.JAN.2008 16:9 Wide 16:9 Wide 10Sec 10Sec 0:00:46:06 0:00:46:06 STOP STOP Sound[2] Sound[2] No Tape ! No Tape !
  • Page 24 preparation SCREEN INDICATORS IN M.CAM / M.PLAYER MODES (VP-D395 OSD in M.Cam Mode 10314 10314 60min 60min 10Sec No Memory Card ! No Memory Card ! No Tape ! 19 19 00:00 1.JAN.2008 00:00 1.JAN.2008 0:00:00 0:00:00 STOP STOP No Memory Card ! No Memory Card ! [10] [10]...

  • Page 25: Using The Display ( ) Button

    USING THE DISPLAY ( You can switch between the on-screen information display modes: Press the Display ( Switching the information display mode You can switch between the on-screen information display modes: Press the Display ( ) button. The full and minimum display modes will alternate. •...

  • Page 26: Using The Joystick

    preparation USING THE JOYSTICK Used for playback, pausing, fast forwarding, and rewinding. Also used as directional buttons (up, down, left, right) and to make a selection when selecting movie, photo images or menus. 1. Move the Joystick ( ) up or down. 2.
  • Page 27 HANDLING QUICK MENUS WITH THE JOYSTICK Quick Menu In Camera /Player modes Joystick Camera ( Status Input Return / Selection / Exit the menu Quick Menu In M.Cam / M.Player modes (VP-D395 Joystick M.Cam ( ) Mode Status Input Exposure Focus Return/ Selection/Exit...

  • Page 28: Setting The Clock (Clock Set)

    initial setting : system menu setting SETTING THE CLOCK (CLOCK SET) • Clock setup works in Camera / Player / M.Cam / M.Player modes. ➥page 18 • Set the date and time when using this camcorder for the fi rst time. 1.

  • Page 29: Setting The Wireless Remote Control Acceptance (Remote)

    SETTING THE WIRELESS REMOTE CONTROL ACCEPTANCE (REMOTE) (VP-D392 ( i ) /D395 i only) • The remote function works in Camera / Player / M.Cam / M.Player modes. ➥page 18 • The remote function allows you to enable or disable the remote control for use with the camcorder.

  • Page 30: Setting The Beep Sound (Beep Sound)

    initial setting : system menu setting SETTING THE BEEP SOUND (BEEP SOUND) • The beep sound function works in Camera / Player / M.Cam / M.Player modes. ➥page 18 • You can turn the beep sound on or off, when on, each press of a button sounds a beep.

  • Page 31: Setting The Shutter Sound (Shutter Sound)

    SETTING THE SHUTTER SOUND (SHUTTER SOUND) • The shutter sound function works in Camera / Player / M.Cam modes. ➥page 18 • You can turn the shutter sound on or off, when on, with each press of the PHOTO button, the shutter will sound. 1.

  • Page 32: Selecting The Osd Language (Language)

    initial setting : system menu setting SELECTING THE OSD LANGUAGE (LANGUAGE) • The Language function works in Camera / Player / M.Cam / M.Player modes. ➥page 18 • You can select the desired language to display the menu screen and the messages. 1.

  • Page 33: Viewing The Demonstration (Demonstration)

    Language Demonstration Move Sele lect Exit MENU Camera Mode System System Clock Set Remote Beep Sound Shutter Sound Language ✔ Demonstration Move Sele lect Exit MENU SAMSUNG Camcorder is... 34x Optical Zoom 1200x Digital Zoom Multi-Visual Effect Demonstration English _29...

  • Page 34: Setting The Guideline (Guideline)

    initial setting : display menu setting SETTING THE GUIDELINE (GUIDELINE) • Adjusting the LCD screen works in Camera / M.Cam modes. ➥page 18 • Guideline displays a certain pattern on the LCD screen so that you can easily set the image composition when recording movie or photo images. •...

  • Page 35: Adjusting The Lcd Screen (Lcd Bright/Lcd Colour)

    ADJUSTING THE LCD SCREEN (LCD BRIGHT/LCD COLOUR) • Adjusting the LCD screen works in Camera / Player / M.Cam / M.Player modes. ➥page 18 • Your camcorder is equipped with a 2.7 inch wide colour Liquid Crystal Display (LCD) screen, which enables you to view what you are recording or playing back directly. •...

  • Page 36: Initial Setting:display Menu Setting

    initial setting:display menu setting DISPLAYING THE DATE / TIME (DATE / TIME) • The date/time function works in Camera / Player / M.Cam / M.Player modes. ➥page 18 • The date and time are automatically recorded on a special data area of the tape. 1.

  • Page 37: Setting The Tv Display (Tv Display)

    SETTING THE TV DISPLAY (TV DISPLAY) • The TV Display function works in Camera / Player / M.Cam / M.Player modes. ➥page 18 • You can select the output path of the OSD (On Screen Display). - "Off": The OSD appears in the LCD screen only. - "On": The OSD appears in the LCD screen and TV.

  • Page 38: Basic Recording

    basic recording INSERTING / EJECTING A CASSETTE • When inserting a tape or closing the cassette compartment, do not apply excessive force, as it may cause a malfunction. • Do not use any tape other than DV cassettes. 1. Connect a power source and slide the OPEN switch. •...

  • Page 39: Making Your First Recording

    MAKING YOUR FIRST RECORDING 1. Connect a power source to the camcorder. (A battery pack or a AC power adapter) • Insert a cassette. ➥page 34 • If you want to record on a memory card, insert the memory card. (VP-D395i only) ➥page 74 2.
  • Page 40 basic recording RECORDING WITH EASE FOR BEGINNERS (EASY Q MODE) • The EASY Q function works only in Camera mode. ➥page 18 • With the EASY Q function, most of the miniDV camcorder settings are automatically adjusted, which frees you from making detailed adjustments.

  • Page 41: Zooming In And Out

    ZOOMING IN AND OUT • The zoom function works in both Camera and M.Cam modes. ➥page 18 • Use the zoom function for close-up or wide-angle recording. • This miniDV camcorder allows you to record using optical 34x power zoom and 1200x digital zoom.
  • Page 42 basic recording SEARCHING QUICKLY FOR A DESIRED SCENE (SETTING THE ZERO MEMORY) (VP-D392( i )/D395i only) • The zero memory function works in both Camera and Player modes. ➥page 18 • You can mark a point on a tape that you want to return to following playback. 1.

  • Page 43: Self Record Using The Remote Control (Setting The Self Timer)

    SELF RECORD USING THE REMOTE CONTROL (SETTING THE SELF TIMER) (VP-D392( i )/D395i only) • The SELF TIMER function works only in Camera mode. ➥page 18 • When you use the SELF TIMER function on the remote control, the recording begins automatically in 10 seconds. 1.

  • Page 44: Reviewing And Searching A Recording

    basic recording REVIEWING AND SEARCHING A RECORDING • The Rec Search function works only in Camera mode. ➥page 18 • Used to review previously recorded images or to fi nd a point to record a new image in the STBY mode. Record Search (Joystick) 1.

  • Page 45: To Start Recording

    USING THE FADE ON AND OFF • The Fade function works only in Camera mode. ➥page 18 • You can give your recording a professional look by using special effects such as fade in at the beginning of a sequence or fade out at the end of a sequence. To Start Recording 1.

  • Page 46: Auto Focus / Manual Focus

    basic recording AUTO FOCUS / MANUAL FOCUS • The Auto Focus/Manual Focus function works in both Camera and M.Cam modes. ➥page 18 • In most situations, it is better to use the automatic focus feature, as it enables you to concentrate on the creative side of your recording.

  • Page 47: Setting The Shutter Speed & Exposure

    SETTING THE SHUTTER SPEED & EXPOSURE • The Shutter Speed function works only in Camera mode. ➥page 18 • The Exposure function works in both Camera and M.Cam modes. ➥page 18 • Adjust the Shutter Speed and Exposure functions only by using the Joystick. 1.

  • Page 48: Advanced Recording

    advanced recording SELECTING THE RECORD MODE & AUDIO MODE (Rec Mode & Audio Mode) • The Record mode function works in both Camera and Player modes. ➥page 18 • This camcorder records and plays back in SP (standard play) mode and in LP (long play) mode. "SP"...

  • Page 49: Cutting Off Wind Noise (Windcut Plus)

    CUTTING OFF WIND NOISE (WINDCUT PLUS) • The windcut plus function works in both Camera and Player (Audio dubbing) modes. ➥page 18 • Use the windcut plus when recording in windy places such as the beach or near buildings. • The windcut plus function minimises wind or other noises while recording.

  • Page 50: Selecting The Real Stereo Function (Real Stereo)

    advanced recording SELECTING THE REAL STEREO FUNCTION (REAL STEREO) • The Real Stereo function works only in Camera mode. ➥page 18 • Real stereo enhances the left and right input signals when using the internal microphone. 1. Set the Select switch to TAPE. (VP-D395i only) 2.

  • Page 51: Setting The Program Ae (Program Ae)

    SETTING THE PROGRAM AE (PROGRAM AE) • The Program AE function works only in Camera mode. ➥page 18 • The Program AE mode allows you to adjust shutter speeds and apertures to suit different recording conditions. • They give you creative control over the depth of fi eld. 1.
  • Page 52 advanced recording SETTING THE PROGRAM AE (PROGRAM AE) Settings - Auto balance between the subject and the background. - To be used in normal conditions. Auto - The shutter speed is automatically adjusted from 1/50 to 1/250 per second, depending on the scene. - Reduces blurring when recording rapidly moving subjects such as in golf or tennis Sports games.

  • Page 53: Setting The White Balance (White Balance)

    SETTING THE WHITE BALANCE (WHITE BALANCE) • The White Balance function works in both Camera and M.Cam modes. ➥page 18 • The White Balance is a recording function that preserves the unique image colour of the object in any recording condition. •...
  • Page 54 advanced recording Settings Auto This option is generally used to control the white balance automatically. This controls the white balance according to the outdoor ambience, especially for Daylight close up and when the subject is of one dominant colour. Cloudy This option is used when you make a recording in cloudy weather.

  • Page 55: Applying Visual Effects (Visual Effect)

    APPLYING VISUAL EFFECTS (VISUAL EFFECT) • The visual effect function works only in Camera mode. ➥page 18 • The visual effects enable you to give a creative look to your recording. • Select the appropriate visual effect for the type of picture that you wish to record and the effect you wish to create.
  • Page 56 advanced recording Settings Disables the function. This mode gives the images a coarse effect. Mosaic This mode gives the images a mosaic effect. Sepia This mode gives the images a reddish-brown pigment. Negative This mode reverses the colours, creating a negative image. Mirror This mode cuts the picture in half, using a mirror effect.

  • Page 57: Setting The 16:9 Wide Mode (16:9 Wide)

    SETTING THE 16:9 WIDE MODE (16:9 WIDE) • The 16:9 wide function works only in Camera mode. • Recordings in 16:9 wide will play back naturally only when the TV supports 16:9 aspect ratio. • This product is set to 16:9 wide by the factory default. 1.

  • Page 58: Using The Tele Macro (Macro)

    advanced recording USING THE TELE MACRO (MACRO) • Tele Macro function works in both Camera and M.Cam mode. • Effective focal distance in Tele Macro mode is 50 cm (19.7 inches) to 100 cm (39.4 inches). 1. Set the Select switch to CARD or TAPE. (VP-D395i only). 2.
  • Page 59 SETTING THE DIGITAL IMAGE STABILIZER (DIS) • The DIS function works only in Camera mode. • DIS (Digital Image Stabilizer) is a function that compensates for any shaking or hand movement while holding the camcorder (within reasonable limits). • It provides more stable pictures when: - Recording with the zoom - Recording a small object close-up - Recording and walking at the same time...
  • Page 60 advanced recording USING BACK LIGHT COMPENSATION MODE (BLC) • BLC works in both Camera and M.Cam modes. • Back lighting exists when the subject is darker than the background: - The subject is in front of a window. - The person to be recorded is wearing white or shiny clothes and is placed against a bright background;...

  • Page 61: Selecting The Digital Zoom

    ZOOMING IN AND OUT WITH DIGITAL ZOOM (DIGITAL ZOOM) • Maximum Digital Zoom works only in Camera mode. • You can select the maximum zoom level in case you want to zoom to a level greater than 34x (the default setting) during recording. Up to 34x zoom is performed optically, and after that, up to 1200x zoom is performed digitally.
  • Page 62 advanced recording USING THE COLOUR NITE (C.NITE) • C.Nite function works only in Camera mode. • You can take a shot of an object in slow motion by controlling the shutter speed, or a brighter image in dark places without compromising colours. 1.
  • Page 63 USING THE LIGHT (LIGHT) (VP-D392( i )/D395i ONLY) • The Light function works only in Camera and M.Cam mode. • The Light function enables you to record a subject in a dark place without compromising colours. For example, you can satisfactorily record the environment of nocturnal animals for observation when you use this function.
  • Page 64 advanced recording RECORDING A PHOTO IMAGE ON A TAPE -TAPE PHOTO RECORDING • Tape photo recording works only in Camera mode. ➥page 18 • You can record a photo image on a tape. The photo image is recorded on a tape for about 6~7 second.
  • Page 65 SEARCHING FOR A PHOTO IMAGE ON A TAPE (PHOTO SEARCH) • The photo search works only in Player mode. ➥page 18 1. Set the Select switch to TAPE. (VP-D395i only) 2. Press the MODE button to set Player ( 3. Press the MENU button. •...

  • Page 66: Playing Back A Tape On The Lcd Screen

    playback PLAYING BACK A TAPE ON THE LCD SCREEN • The playback function and speaker works only in Player mode. • You can monitor the playback picture on the LCD screen. 1. Insert the tape you wish to view. 2. Set the Select switch to TAPE. (VP-D395i only) 3.

  • Page 67: Various Functions While In Player Mode

    VARIOUS FUNCTIONS WHILE IN PLAYER MODE • This function works only in Player mode. ➥page 18 • The PLAY, PAUSE, STOP, FF and REW buttons are located on the remote control (VP-D392( i )/D395i only) and all of which you can manipulate with the Joystick (▲/▼/ / ) on the camcorder. •...
  • Page 68 playback Frame Advance (To play back frame by frame) (VP-D392( i )/D395i only) • Press the F.ADV button on the remote control while in pause mode. - Video sequence advances frame by frame each time you press the F.ADV button or - The F.ADV function works in pause mode only.
  • Page 69 AUDIO DUBBING (VP-D392( i )/D395i ONLY) • This feature enables you to dub your voice through the internal microphone or other audio equipment onto a pre-recorded camcorder tape. The original sound on the tape will not be erased. • The Audio Dubbing function works only in Player mode. ➥page 18 •...
  • Page 70 playback DUBBED AUDIO PLAYBACK (AUDIO SELECT) • The dubbed Audio playback function works only in Player mode. 1. Set the Select switch to TAPE. (VP-D395i only). 2. Press the MODE button to set Player ( 3. Insert the dubbed tape and press the MENU button. •...

  • Page 71: Audio Effect

    AUDIO EFFECT • Audio effect function works only in Player mode. • Audio effect provides various playback effects to audio signals stored on a tape. 1. Set the Select switch to TAPE. (VP-D395i only) 2. Press the MODE button to set Player ( 3.
  • Page 72 connection SETTING THE AV IN/OUT (AV IN/OUT) (VP-D391i/D392i/D395i ONLY) • AV In/Out function works only in Player mode. • AV In/Out setting enables you to record signals from external sources and display it on LCD screen. Also, you can send your video or image to external devices to record or play back.
  • Page 73 TAPE PLAYING BACK ON A TV SCREEN • The playback function works only in Player mode. ➥page 18 • To play back a tape, the television must be PAL compatible. ➥page 102 • We recommend that you use the AC power adapter as the power source for the camcorder. Connecting to a TV that has Audio/Video Input Jacks 1.
  • Page 74 connection Connecting to a TV that has no Audio/Video Input Jacks • You can connect your camcorder to a TV through a VCR. 1. Connect the camcorder to your VCR with the Audio/Video cable. • The yellow jack: Video • The white jack: Audio(L) - mono •...
  • Page 75 COPYING A CAMCORDER TAPE ONTO A VIDEO TAPE • The copying function works only in Player Mode. • Connect your camcorder to a VCR using the AV jack to copy the recording from a camcorder tape onto a VCR tape. •...
  • Page 76 connection USING THE VOICE+ FUNCTION • The Voice+ function works only in Player mode. ➥ page 18 • When you want to play back or record a tape-recorded movie on other AV device, you can transfer the voice sound incoming from the internal microphone of your camcorder, instead of the audio signals on a prerecorded tape. 1.
  • Page 77 RECORDING (COPYING) A TV PROGRAMME OR VIDEO TAPE ONTO A CAMCORDER TAPE (VP-D391i/D392i/D395i ONLY) • The recording (copying) function works only in Player mode. ➥ page 18 • Connect your camcorder to a VCR or a TV using the AV jack to record a TV programme or copy a video tape onto a camcorder tape.
  • Page 78 digital still camera mode (VP-D395 USING A MEMORY CARD (USABLE MEMORY CARD) (NOT SUPPLIED) • This camcorder can use SD memory cards and MMC (Multi Media Cards). Some cards are not compatible depending on the memory card manufacturer and memory card type. •...

  • Page 79: Structure Of Folders And Files On The Memory Card

    After removing the memory card from the camcorder, keep it in a soft case to prevent static shock. • The data stored on the memory card may be changed or lost as a result of misuse, static electricity, electric noise or repair. Save important images separately. Samsung is not responsible for data loss due to misuse. •...

  • Page 80: Number Of Images On The Memory Card

    digital still camera mode (VP-D395 Image format Photo image • Photo images are compressed in JPEG (Joint Photographic Experts Group) format. • The fi le extension is ".JPG" • The image size is 800x600. ➥ page 78 (Tape Capture 640x480) Movie image •...
  • Page 81 SETTING THE FILE NUMBER (FILE NO.) • File number setting works only in M.Cam mode. • File numbers are given to images in the order they were recorded when they are stored on the memory card. • File numbers may be set as follows: - "Series": When there are existing fi...
  • Page 82 digital still camera mode (VP-D395 TAKING A PHOTO IMAGE (JPEG) ON THE MEMORY CARD • You may take photo images while in M.Cam mode and store the images on the ➥ memory card. page 18 • You can take photo images using the remote control. 1.

  • Page 83: To View A Single Image

    VIEWING PHOTO IMAGES (JPEG) • This function works only in M.Player mode. You can play back and view photo images recorded on the memory card. • Be sure that the M.Play Select is set to Photo in the menu. 1. Set the Select switch to CARD. 2.
  • Page 84 digital still camera mode (VP-D395 PROTECTION FROM ACCIDENTAL ERASURE (PROTECT) • The Protection function works only in M.Player mode. • You can protect important images from accidental erasure. If you format the camcorder, all images including protected images will be erased. 1.
  • Page 85 DELETING PHOTO IMAGES AND MOVING IMAGES (DELETE) • The Delete function works only in M.Player mode. • You can erase the photo images and moving images recorded on the memory card. • To delete a protected image, fi rst cancel image protection. •...

  • Page 86: Deleting All Images At Once

    digital still camera mode (VP-D395 Deleting All Images at Once 1. Set the Select switch to CARD. 2. Press the MODE button to set Player ( • The last recorded image appears. • If there are no recorded images on the memory card, "No image!" is displayed. 3.

  • Page 87: Formatting A Memory Card (Format)

    FORMATTING A MEMORY CARD (FORMAT) • The format function works only in M.Player mode. • You can use the format functions to completely delete all images and options on the memory card, including protected images. • The format function restores the memory card to its initial state. 1.
  • Page 88 digital still camera mode (VP-D395 RECORDING MOVING IMAGES (MPEG) ON A MEMORY CARD • You may record moving images while in M.Cam mode and store the images on a memory card. • You can record moving images with audio on a memory card. •...
  • Page 89 RECORDING MOVING IMAGES (MPEG) ON A MEMORY CARD • Up tp 2000 MPEG fi les can be stored on a memory card. • MPEG fi les (moving images) can be recorded up to 2 GB per a moving fi le. •...
  • Page 90 digital still camera mode (VP-D395 PLAYING THE MOVING IMAGES (MPEG) ON A MEMORY CARD (M.PLAY SELECT) • The moving Images playback function works only in M. Player mode. ➥page 18 • You can play the moving images on a memory card. •...

  • Page 91: Recording An Image From A Tape As A Photo Image

    RECORDING AN IMAGE FROM A TAPE AS A PHOTO IMAGE • This function works only in Player mode. • Your camcorder can read moving image data recorded on a tape, and record it as a photo image on a memory card. Before operation Insert a recorded tape and a memory card into your camcorder.
  • Page 92 digital still camera mode (VP-D395 COPYING A PHOTO IMAGE FROM A TAPE TO A MEMORY CARD (PHOTO COPY) • The photo copy function works only in Player mode. • Using the search function, you can automatically take in only photo image from tapes recorded in your miniDV camcorder and record them on a memory card in sequence.

  • Page 93: Removing The Print Mark

    MARKING IMAGES FOR PRINTING (PRINT MARK) • The print mark function works only in M.Player mode. • This camcorder supports the DPOF (Digital Print Order Format) print format. • You can automatically print images recorded on a memory card with a printer supporting DPOF.

  • Page 94: Connecting To A Printer

    pictbridge PRINTING YOUR PICTURES – USING THE PICTBRIDGE • PictBridge function works only in M.Player mode. • By connecting the camcorder to printers with PictBridge support (sold separately), you can send images from the memory card directly to the printer with a few simple operations. •...

  • Page 95: Selecting Images

    Selecting Images Move the Joystick ( / ) left or right to select an image to print. • Each press of the MENU button toggles between turning PictBridge menu screen on or off. Setting the Number of Prints 1. Move the Joystick (▲ / ▼) up or down to select "Copies", then press the Joystick. 2.

  • Page 96: Ieee 1394 Data Transfer

    IEEE 1394 data transfer TRANSFERRING IEEE1394 (I.LINK)-DV STANDARD DATA CONNECTIONS Connecting to a DV Device (DVD Recorder, Camcorder, etc.) • Connecting to other standard DV products. - A standard DV connection is quite simple. - If a product has a DV jack, you can transfer data by connecting to the DV jack using the correct cable. (not supplied) •...

  • Page 97: Recording With A Dv Connection Cable

    Recording with a DV Connection Cable • Models with an ‘i’ suffi x do feature DV(IEEE1394)/AV(Analogue) In. 1. Set the Select switch to TAPE. (VP-D395i only) 2. Press the MODE button to set Player ( 3. Connect the DV cable (not supplied) from the DV jack of the camcorder to the DV jack of the other DV device.

  • Page 98: Transferring A Digital Image Through A Usb Connection

    USB interface (VP-D395i only) USING USB INTERFACE Transferring a Digital Image through a USB Connection • The camcorder supports both USB 1.1 and 2.0 standards. (Depends on the PC specifi cation) • You can transfer a recorded fi le on a Memory Card to your PC via a USB connection. •...
  • Page 99 • On a slower PC than recommended, movie playback may not be smooth or video editing may take a long time. • On a slower PC than recommended, movie playback may skip frames or operate unexpectedly. • ® Intel Pentium III™ or Pentium 4™ is a trademark of the Intel Corporation. •...

  • Page 100: Selecting The Usb Device (Usb Connect)

    USB interface (VP-D395i only) SELECTING THE USB DEVICE (USB CONNECT) • USB connect function works only in M.Player mode. • Using the USB cable, you can connect your camcorder to a computer to copy your moving images and photo images from the memory card, or to a printer to print your images. 1.

  • Page 101: Installing The Software (Dv Media Pro Programme)

    INSTALLING THE SOFTWARE (DV MEDIA PRO PROGRAMME) You need to install DV Media Pro to play back recorded movie fi les from miniDV camcorder with the USB cable on your PC. When you install the DV Media Pro software on your Windows computer, you can enjoy the following operations by connecting your miniDV camcorder to your computer via a USB cable.

  • Page 102: Disconnecting The Usb Cable

    USB interface (VP-D395i only) CONNECTING TO A PC 1. Connect a USB cable to the USB jack on the PC. • If a USB cable is connected to the camcorder's USB jack, the Audio/Video cable is disabled. 2. Connect the other end of the USB cable into the USB jack on the camcorder.
  • Page 103 Using the Web Camera Function • This function works only in Camera mode. • To use the web camera function, DV Driver, Video Codec and DirectX 9.0 programmes must be installed in the PC. ➥ page 97 • When you connect to a web site that provides video chatting functions, you can use your camcorder to participate. •...

  • Page 104: After Finishing A Recording

    maintenance AFTER FINISHING A RECORDING • At the end of a recording you must remove the power source. • When recording with a battery pack, leaving the pack on the camcorder can reduce the life span of the battery. The battery pack should be release after recording is completed. 1.

  • Page 105: Cleaning And Maintaining The Camcorder

    Clean the video heads with a dry type cassette cleaner. • Some cleaning cassette products stop automatically. Refer to the cleaning cassette’s instructions for detailed information. If the problem continues after the cleaning, consult your nearest Samsung dealer or Authorised Service Centre. (blue screen) ➥...

  • Page 106: Power Sources

    maintenance USING YOUR MINIDV CAMCORDER ABROAD • Each country or region has its own electric and colour systems. • Before using your miniDV camcorder abroad, check the following items. Power sources The provided AC adaptor features automatic voltage selection in the AC range from 100 V to 240 V. You can use your camcorder in any countries/regions using the AC power adaptor supplied with your camcorder within the AC 100 V to 240 V, 50/60 Hz range.

  • Page 107: Troubleshooting

    TROUBLESHOOTING • Before contacting a Samsung authorised service centre, perform the following simple checks. They may save you the time and expense of an unnecessary call. Self Diagnosis Display Display Blinking slow The battery pack is almost discharged. Tape end! slow When the remaining time on the tape is about 2 minutes.
  • Page 108 • If these instructions do not solve your problem, contact your nearest Samsung authorised service centre. Symptom You cannot switch the camcorder on. Recording start/stop button does not operate while recording. The camcorder shuts off automatically. Charge runs out quickly.

  • Page 109: Setting Menu Items

    SETTING MENU ITEMS Main Menu Sub Menu Camera Program AE Selecting the Program AE Function White Balance Setting the White Balance Visual Effect Setting the Digital special effect 16:9 Wide Setting the 16:9 Wide Function Macro Setting the Macro Function Selecting the Digital Image Stabilizing Setting the BLC Function Digital Zoom...
  • Page 110 troubleshooting SETTING MENU ITEMS Main Menu Sub Menu Display Guideline Setting the Guideline LCD Bright Setting the Brightness tone of the LCD Screen LCD Colour Setting the Colour tones of the LCD Screen Date/Time Setting the Date and Time TV Display Selecting OSD on/off of TV System Clock Set...
  • Page 111 specifi cations MODEL NAME: VP-D391( System Video signal Video recording system 2 rotary heads, Helical scanning system Audio recording system Rotary heads, 12/16b PCM system Usable cassette Digital video tape (6.35mm width): Mini DV cassette Tape speed SP: approx. 18.83mm/s Tape recording time SP: 60 minutes (when using DVM 60), LP: 90 minutes (when using DVM 60) Approx.
  • Page 112 power sources (united kingdom only) The mains lead on the power adapter is supplied with a moulded plug incorporating a fuse. The value of the fuse is indicated on the pin face of the plug and, if it requires replacing, a fuse approved to BS1362 of the same rating must be used.
  • Page 113 UNITED KINGDOM This Samsung product is warranted for the period of twelve (12) months from the original date of purchase, against defective materials and workmanship. In the event that warranty service is required, you should return the product to the retailer from whom it was purchased.
  • Page 114 μηνών από την ημερομηνία αγοράς του για ανταλλακτικά και εργατικά. Στην περίπτωση που θα χρειαστεί επισκευή, το προϊόν αυτό της SAMSUNG θα πρέπει να σταλεί ή να μεταφερθεί στο εξουσιοδοτημένο serνice, με έξοδα του αγοραστή. Εξουσιοδοτημένοι αντιπρόσωποι και εξουσιοδοτημένα κέντρα...
  • Page 115 Β. Επισκευή που έγινε από μη εξουσιοδοτημένα συνεργεία service Γ. Ατυχήματα, θεομηνίες ή οποιαδήποτε αιτία πέρα του ελέγχου της SAMSUNG, συμπεριλαμβανομένων αλλά μη περιορισμένων των κεραυνών, του νερού, της φωτιάς, των δημοσίων αναταραχών, του κακού αερισμού κ.λπ. Δ. Η εγγύηση αυτή δεν επηρεάζει τα δικαιώματα του...
  • Page 116 SAMSUNG world wide If you have any questions or comments relating to Samsung products, please contact the SAMSUNG customer care centre. Region Country CANADA North America MEXICO U.S.A ARGENTINE BRAZIL CHILE NICARAGUA HONDURAS COSTA RICA ECUADOR EL SALVADOR Latin America...
  • Page 117 RoHS compliant Our product complies with “The Restriction of the Use of Certain Hazardous Substances in Electrical And Electronic Equipment”, and we do not use the 6 hazardous materials- Cadmium(Cd), Lead (Pb), Mercury (Hg), Hexavalent Chromium (Cr +6 ), Poly Brominated Biphenyls (PBBs), Poly Brominated Diphenyl Ethers(PBDEs)- in our products.

This manual is also suitable for:

Vp-d391iVp-d3910Vp-d392iVp-d392Vp-d395i

Table of Contents
