Samsung D352(i) Owner's Instruction Book

Digital video camcorder
Hide thumbs Also See for D352(i):
Table of Contents

Advertisement

Quick Links

See also: User Manual
Digital Video Camcorder
VP-D351(i)/D352(i)/D353(i)/D354(i)/D355(i)
AF
Auto Focus
CCD
Charge Coupled Device
LCD
Liquid Crystal Display

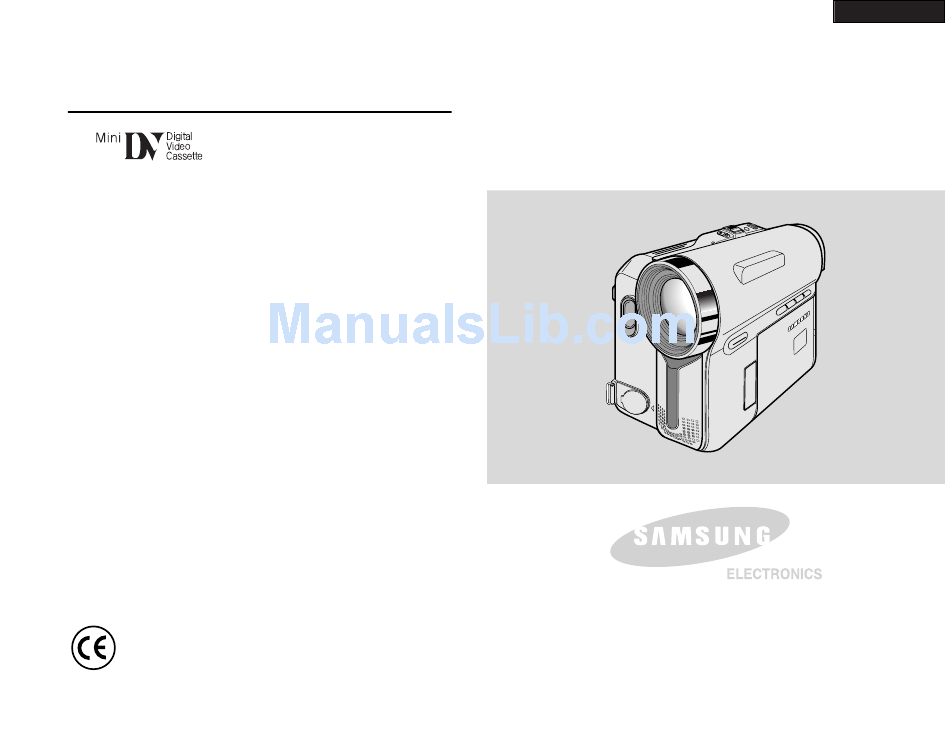

Owner's Instruction Book
Before operating the unit, please read this
Instruction Book thoroughly, and retain it for
future reference.
This product meets the intent of
Directive 89/336 CEE, 73/23 CEE, 93/68 CEE.
ENGLISH

Advertisement

Table of Contents
loading

Related Manuals for Samsung D352(i)

Summary of Contents for Samsung D352(i)

  • Page 1 Digital Video Camcorder VP-D351(i)/D352(i)/D353(i)/D354(i)/D355(i) Auto Focus Charge Coupled Device Liquid Crystal Display Owner’s Instruction Book Before operating the unit, please read this Instruction Book thoroughly, and retain it for future reference. This product meets the intent of Directive 89/336 CEE, 73/23 CEE, 93/68 CEE.

  • Page 2: Table Of Contents

    Battery Installation for the Remote Control (VP-D353(i)/D354(i)/D355(i) only)...19 Connecting a Power Source ...20 To use the AC Power Adapter and DC Cable ...20 To select the Camcorder Mode (VP-D353(i)/D354(i)/D355(i) only) ...20 Using the Lithium Ion Battery Pack...21 Charging the Lithium Ion Battery Pack ...21 Table of continuous Recording Time based on Model and Battery Type ...22...
  • Page 3 Contents Basic Recording ... 35 Using the Viewfinder ...35 Adjusting the Focus...35 Inserting and Ejecting a Cassette ...36 Hints for Stable Image Recording...37 Recording with the LCD Screen ...37 Recording with the Viewfinder...37 Various Recording Techniques...38 Making your First Recording ...39 Using EASY.Q Mode (for Beginners)...40 Record Search (REC SEARCH)...41 Setting the Zero Memory (VP-D353(i)/D354(i)/D355(i) only) ...42...
  • Page 4 Memory Stick (Optional Accessory)...87 Memory Stick Functions...87 Inserting and Ejecting the Memory Card ...88 Structure of Folders and Files on the Memory Card ...89 Image Format ...89 Selecting the Camcorder Mode ...89 Selecting the Built-in Memory (VP-D354(i)/D355(i) only)...90 Using Quick Menu: Memory Type...90...
  • Page 5 Using Quick Menu: Print Mark ...109 PictBridge (VP-D353(i)/D354(i)/D355(i) only)... 110 Maintenance ... 112 After Finishing a Recording ...112 Cleaning and Maintaining the Camcorder ...113 Using Your Camcorder Abroad...114 Troubleshooting ... 115 Specifications ... 118 Index... 119 Power Sources (United Kingdom Only) ... 120...

  • Page 6: Notes And Safety Instructions

    Notes regarding the Rotation of the LCD Screen Please rotate the LCD screen carefully as illustrated. Over rotation may cause damage to the inside of the hinge that connects the LCD screen to the Camcorder. 1. LCD screen closed. 2. Standard recording using the LCD screen.
  • Page 7 Television programmes, video tapes, DVD titles, films, and other programme materials may be copyrighted. Unauthorised copying of copyrighted material may be against the law. All the trade names and registered trademarks mentioned in this manual or other documentation provided with your Samsung product are trademarks or registered trademarks of their respective holders.
  • Page 8 To preserve battery power, keep your Camcorder turned off when you are not operating it. ■ If your Camcorder is in CAMERA mode, and it is left in STBY mode without being operated for more than 5 minutes with a ■...
  • Page 9 Notes regarding electronic Viewfinder 1. Do not position the Camcorder such that the Viewfinder is pointing towards the sun. Direct sunlight can damage the inside of the Viewfinder. Be careful when placing the Camcorder under sunlight or near a window exposed to sunlight.
  • Page 10 1. The Lithium battery maintains the clock function and user settings; even if the Battery pack or AC adapter is removed. 2. The Lithium battery for the Camcorder lasts about 6 months under normal operation from time of installation. 3. When the Lithium battery becomes weak or dead, the date/time indicator will display 00:00 1.JAN.2005 when you set the Date/Time to on.

  • Page 11: Getting To Know Your Camcorder

    Getting to Know Your Camcorder Features ■ Multi OSD Language You can select the desired OSD language from OSD List. ■ Digital Data Transfer Function with IEEE1394 By incorporating the IEEE 1394 (i.LINK™: i.LINK is a serial data transfer protocol and interconnectivity system, used to transmit DV data) high speed data transport port, both moving and still images can be transferred to a PC, making it possible to produce or edit various images.

  • Page 12: Accessories Supplied With Camcorder

    ENGLISH Getting to Know Your Camcorder Accessories Supplied with Camcorder Make sure that the following basic accessories are supplied with your digital video camera. Basic Accessories 1. Lithium Ion Battery Pack 2. AC Power Adapter (AA-E8 TYPE) 3. AC Cord 4.

  • Page 13: Front & Left View

    Getting to Know Your Camcorder Front & Left View 1. Lens 2. LED light (VP-D353(i)/D354(i)/D355(i) only) 3. Remote sensor (VP-D353(i)/D354(i)/D355(i) only) 4. S-Video jack 5. Internal MIC 1. Lens 2. LED light (see page 48) (VP-D353(i)/D354(i)/D355(i) only) 3. Remote sensor (VP-D353(i)/D354(i)/D355(i) only) 4.

  • Page 14: Left Side View

    ENGLISH Getting to Know Your Camcorder Left Side View 1. DISPLAY 2. MACRO/PB ZOOM 3. Speaker 4. Mode switch (VP-D353(i)/D354(i)/D355(i) only) 1. DISPLAY (see page 25) 2. MACRO/PB ZOOM (see page 44/see page 75) 3. Speaker 4. Mode switch (MEMORY CARD/TAPE) (VP-D353(i)/D354(i)/D355(i) only) 5.

  • Page 15: Right & Top View

    Getting to Know Your Camcorder Right & Top View 1. NITE PIX switch 2. Menu selector (VOL/MF) 3. MENU button 4. Start/Stop button 5. Power switch 6. DC jack 1. NITE PIX switch 2. Menu selector (VOL/MF) 3. MENU button 4.

  • Page 16: Rear & Bottom View

    ENGLISH Getting to Know Your Camcorder Rear & Bottom View 1. Lithium battery cover 2. Charging indicator 1. Lithium battery cover 2. Charging indicator 3. Memory card slot (VP-D353(i)/D354(i)/D355(i) only) 4. Battery release 5. Tripod receptacle 3. Memory card slot...

  • Page 17: Remote Control (Vp-D353(I)/D354(I)/D355(I) Only)

    Getting to Know Your Camcorder Remote Control (VP-D353(i)/D354(i)/D355(i) only) 1. PHOTO 2. START/STOP 3. SELF TIMER 4. ZERO MEMORY 5. PHOTO SEARCH 6. A.DUB (FF) (REW) (PLAY) 10. Direction 1. PHOTO (see page 68) 2. START/STOP 3. SELF TIMER (see page 43) 4.

  • Page 18: Preparation

    It is very important to ensure that the Hand strap has been correctly adjusted before you begin your recording. The Hand strap enables you to: - Hold the Camcorder in a stable, comfortable position. - Press the ZOOM and Start/Stop button without having to change the position of your hand.

  • Page 19: Lithium Battery Installation

    The Lithium battery maintains the clock function and preset contents of the memory; even if the Battery pack or AC Power adapter is removed. ✤ The Lithium battery for the Camcorder lasts about 6 months under normal operation from the time of installation. ✤ When the Lithium battery becomes weak or dead, the date/time indicator will display 00:00 1.JAN.2005 when you set the Date/Time to on.

  • Page 20: Connecting A Power Source

    ENGLISH Preparation Connecting a Power Source There are two types of power source that can be connected to your Camcorder. - The AC Power adapter and AC Cord: used for indoor recording. - The Battery pack: used for outdoor recording.

  • Page 21: Using The Lithium Ion Battery Pack

    The Battery pack may be charged a little at the time of purchase. ■ To prevent reduction in the life and capacity of the Battery pack, always remove it from the Camcorder after it is fully charged. ■ The amount of continuous recording time available depends on: - The type and capacity of the Battery pack you are using.

  • Page 22: Table Of Continuous Recording Time Based On Model And Battery Type

    It may cause leakage, heat generation, induce overheating or fire. ■ Use SB-LSM80 or SB-LSM160 Battery pack only. ■ It is recommended to use original battery pack that is available at SAMSUNG service centre. Continuous recording time LCD ON VIEWFINDER ON Approx.

  • Page 23: Battery Level Display

    40~80% used d. 80~95% used e. Completely used (Blinking) (The Camcorder will turn off soon, change the battery as soon as possible) [ Notes ] ■ Please refer to the Table on page 22 for approximate continuous recording time.

  • Page 24: Osd (On Screen Display In Camera/Player Modes)

    ENGLISH Preparation OSD (On Screen Display in Camera/Player Modes) 1. Battery level (see page 23) 2. Digital effects mode (see page 65) 3. EASY.Q (see page 40) 4. DIS (see page 61) 5. Program AE (see page 63) 6. White balance mode (see page 59) 7.

  • Page 25: Osd (On Screen Display In M.cam/M.player Modes) (Vp-D353(I)/D354(I)/D355(I) Only)

    Preparation OSD (On Screen Display in M.Cam/M.Player Modes) (VP-D353(i)/D354(i)/D355(i) only) 1. Photo quality 2. CARD (Memory Card) indicator 3. Image counter Total number of recordable still images. 4. Image recording and loading indicator 5. Erase protection indicator (see page 97) 6.

  • Page 26: System Menu Setting

    ENGLISH System Menu Setting Selecting the OSD Language ✤ The Language function works in Camera/Player/M.Cam/M.Player modes. ✤ Select the appropriate OSD language from OSD List. 1. Set the Power switch to CAMERA or PLAYER. 2. Set the Mode switch to TAPE or MEMORY CARD. (VP-D353(i)/D354(i)/355(i) only) 3.

  • Page 27: Setting The Clock

    System Menu Setting Setting the Clock ✤ Clock setup works in Camera/Player/M.Cam/M.Player modes. ✤ The Date/Time is automatically recorded onto a tape. Before recording, please set the Date/Time. 1. Set the Power switch to CAMERA or PLAYER. 2. Set the Mode switch to TAPE or MEMORY CARD. (VP-D353(i)/D354(i)/D355(i) only) 3.

  • Page 28: Setting The Wireless Remote Control Acceptance (Remote) (Vp-D353(I)/D354(I)/D355(I) Only)

    The Remote function works in Camera/Player/M.Cam/M.Player modes. ✤ The Remote option allows you to enable or disable the remote control for use with the Camcorder. 1. Set the Power switch to CAMERA or PLAYER. 2. Set the Mode switch to TAPE or MEMORY CARD.

  • Page 29: Setting The Beep Sound

    System Menu Setting Setting the Beep Sound ✤ The Beep Sound function works in Camera/Player/M.Cam/M.Player modes. ✤ You can turn the Beep Sound on or off, when on, each press of a button sounds a beep. 1. Set the Power switch to CAMERA or PLAYER. 2.

  • Page 30: Setting The Shutter Sound (Vp-D353(I)/D354(I)/D355(I) Only)

    ENGLISH System Menu Setting Setting the Shutter Sound (VP-D353(i)/D354(i)/D355(i) only) ✤ The Shutter Sound function works in both Player and M.Cam modes. ✤ You can turn the Shutter Sound on or off, when on, with each press of the PHOTO button the Shutter will Sound. 1.

  • Page 31: Viewing The Demonstration

    System Menu Setting Viewing the Demonstration ✤ Before you begin: Make Sure that there is no tape inserted in the Camcorder. (see page 36) ✤ Demonstration automatically shows you the major functions that are included with your Camcorder so that you may use them more easily.

  • Page 32: Display Menu Setting

    Your Camcorder is equipped with a are recording or playing back directly. ✤ Depending on the conditions under which you are using the Camcorder (indoors or outdoors for example), you can adjust; - LCD Bright - LCD Colour 1. Set the Power switch to CAMERA or PLAYER.

  • Page 33: Displaying The Date/Time

    The Date/Time will read 00:00 1.JAN.2005 in the following conditions. - During playback of a blank section of a tape. - If the tape was recorded before setting the Date/Time in the Camcorder. - When the Lithium battery becomes weak or dead.

  • Page 34: Setting The Tv Display

    - Off: The OSD appears in the LCD screen and Viewfinder only. - On: The OSD appears in the LCD screen, Viewfinder and TV. - Use the DISPLAY button located at the left side of the Camcorder to turn the OSD on/off on the LCD screen /Viewfinder/TV.

  • Page 35: Basic Recording

    Basic Recording Using the Viewfinder ✤ In the PLAYER mode, the Viewfinder will work when the LCD screen is closed. ✤ In the CAMERA mode, the Viewfinder will work when the LCD screen is closed or rotated counterclockwise 180°. Adjusting the Focus The focus adjustment knob of the Viewfinder enables individuals with vision problems to see clearer images.

  • Page 36: Inserting And Ejecting A Cassette

    ENGLISH Basic Recording Inserting and Ejecting a Cassette ✤ When inserting a tape or closing the cassette compartment, do not apply excessive force. As it may cause a malfunction. ✤ Do not use any tape other than Mini DV cassettes. 1.

  • Page 37: Hints For Stable Image Recording

    Basic Recording Hints for Stable Image Recording ✤ While recording, it is very important to hold the Camcorder correctly. ✤ Fix the lens cover firmly by clipping it to the hand strap. (see page 18) Recording with the LCD Screen 1.

  • Page 38: Various Recording Techniques

    In circumstances where it is difficult to use the LCD screen, the Viewfinder can be used as a convenient alternative. [ Note ] Please rotate the LCD screen carefully as excessive rotation may cause damage to the inside of the hinge that connects the LCD screen to the Camcorder.

  • Page 39: Making Your First Recording

    Basic Recording Making your First Recording 1. Connect a power source to the Camcorder. (see page 20) (A Battery pack or a AC Power adapter) Insert a cassette. (see page 36) 2. Remove the Lens cover. 3. Set the Power switch to CAMERA.

  • Page 40: Using Easy.q Mode (For Beginners)

    1. Set the Power switch to CAMERA. 2. Set the Mode switch to TAPE. 3. By pressing the EASY.Q button, all functions on the Camcorder will be set to off and the recording settings will be set to the following basic modes: ■...

  • Page 41: Record Search (Rec Search)

    Basic Recording When a cassette is loaded and the Camcorder is left in the STBY mode for more than 5 minutes without being used, it will switch off automatically. To use it again, press the Start/Stop button or set the Power switch to O and then back to CAMERA.

  • Page 42: Setting The Zero Memory (Vp-D353(I)/D354(I)/D355(I) Only)

    ENGLISH Basic Recording Setting the Zero Memory (VP-D353(i)/D354(i)/D355(i) only) ✤ The ZERO MEMORY function works in both Camera and Player modes. ✤ You can mark a point on a tape that you want to return to following playback. 1. Set the Power switch to CAMERA or PLAYER. 2.

  • Page 43: Self Record Using The Remote Control (Vp-D353(I)/D354(I)/D355(I) Only)

    5. Press the Start/Stop button again when you wish to stop recording. [ Notes ] ■ Do not obstruct the remote control sensor by putting obstacles between the remote control and Camcorder. ■ The remote control range is 4 ~5m (13 ~17 ft). ■...

  • Page 44: Zooming In And Out

    ENGLISH Basic Recording Zooming In and Out ✤ The Zoom function works in both Camera and M.Cam modes. ✤ Zooming is a recording technique that lets you change the size of the subject in a scene. ✤ You can zoom using variable zoom speeds. ✤...

  • Page 45: Using The Fade In And Out

    Basic Recording Using the Fade In and Out ✤ The FADE function works only in Camera mode. ✤ You can give your recording a professional look by using special effects such as fade in at the beginning of a sequence or fade out at the end of a sequence.

  • Page 46: Using Back Light Compensation Mode (Blc)

    ENGLISH Basic Recording Using Back Light Compensation Mode (BLC) ✤ BLC works in both Camera and M.Cam modes. ✤ Back lighting exists when the subject is darker than the background: - The subject is in front of a window. - The person to be recorded is wearing white or shiny clothes and is placed against a bright background;...

  • Page 47: Using The Color Nite Shutter

    Basic Recording Using the Color Nite Shutter ✤ COLOR NITE SHUTTER function works only in Camera mode. ✤ Shutter speed can be controlled, allowing you to record slow moving objects. ✤ COLOR NITE SHUTTER function may produce a brighter image. 1.

  • Page 48: Using The Color Nite Shutter With Led Light (Vp-D353(I)/D354(I)/D355(I) Only)

    Do not touch it while in operation or soon after turning it off, otherwise serious injury may result. ■ ■ Do not place the Camcorder into the carrying case immediately after using the LED light, since it remains extremely hot for some time. ■...

  • Page 49: Nite Pix (0 Lux Recording)

    Basic Recording Nite Pix (0 lux recording) ✤ The Nite Pix function works in both Camera and M.Cam modes. ✤ The Nite Pix function enables you to record a subject in darkness. 1. Set the Power switch to CAMERA. 2. Set the Mode switch to TAPE or MEMORY CARD. (VP-D353(i)/D354(i)/D355(i) only) 3.

  • Page 50: Power Nite Pix

    ENGLISH Basic Recording Power Nite Pix ✤ The Power Nite Pix function works only in Camera mode. ✤ The Power Nite Pix function can record a subject more brightly in darkness than the Nite Pix function. ✤ When you work in Power Nite Pix mode, the Power Nite Pix icon remains on the LCD screen. ✤...

  • Page 51: Advanced Recording

    Advanced Recording Use of various Functions Setting menu items Main Menu Sub Menu Camera Program AE Selecting the Program AE Function White Balance Setting White Balance Digital Effect Setting the Digital special effect Selecting the Digital Image Stabilising Digital Zoom Selecting Digital Zoom Tape Photo Search...
  • Page 52 ENGLISH Advanced Recording Main Menu Sub Menu Display LCD Bright Setting the Brightness tone of the LCD screen LCD Colour Setting the Colour tones of the LCD screen Date/Time Setting the Date and Time TV Display Selecting OSD on/off of TV System Clock Set Setting the time...

  • Page 53: Function Availability In Each Mode

    Advanced Recording Function availability in each Mode Requested Digital functions Mode Operating Digital Zoom Mode ✕ Digital Zoom ✕ ✕ PHOTO(TAPE) ✕ Color Nite Shutter ✕ 16:9 Wide Emboss2 Digital Pastel2 ✕ Effects Mirror Mosaic the other Digital Effect Nite Pix O : The requested mode will work in this operating mode.

  • Page 54: Selecting The Record Mode

    The Record Mode function works in both Camera and Player (VP-D351i/D352i/D353i/D354i/D355i only) modes. ✤ This Camcorder records and plays back in SP (standard play) mode and in LP (long play) mode. - SP (standard play): This mode permits 60 minutes of recording time with a DVM60 tape.

  • Page 55: Selecting Audio Mode

    The Audio Mode function works in both Camera and Player modes. ✤ This Camcorder records sound in two ways. (12Bit, 16Bit) - 12Bit: You can record two 12bit stereo sound tracks. The original stereo sound can be recorded onto the Main (Sound1) track.

  • Page 56: Cutting Off Wind Noise (Wind Cut)

    ENGLISH Advanced Recording Cutting Off Wind Noise (Wind Cut) ✤ The Wind Cut function works in both Camera and Player (Audio dubbing) modes. Use the Wind Cut when recording in windy places such as the beach or near buildings. ✤ The Wind Cut function minimises wind noise or other noise while recording.

  • Page 57: Setting The Shutter Speed & Exposure

    The image may not seem as smooth when a high Shutter Speed is set. ■ The Camcorder returns to the auto shutter and auto exposure settings when you set the NITE PIX to ON, or change to the EASY.Q modes.

  • Page 58: Auto Focus/Manual Focus

    Manual Focusing ✤ In the following situations, you may obtain better results by adjusting the focus manually. a. A picture containing several objects, some close to the Camcorder, others further away. b. A person enveloped in fog or surrounded by snow.

  • Page 59: Setting The White Balance

    Advanced Recording Setting the White Balance ✤ The White Balance function works in both Camera and M.Cam ✤ The White Balance is a recording function that preserves the unique image colour of the object in any recording condition. ✤ You may select the appropriate White Balance mode to obtain good quality image colour. ■...

  • Page 60: Using Quick Menu: White Balance

    Advanced Recording Using Quick Menu: White Balance ✤ Quick menu is used to access Camcorder functions by using the Menu selector. ✤ Quick menu provides easier access to frequently used menus without using the MENU button. 1. Press the Menu selector.

  • Page 61: Setting The Digital Image Stabiliser (Dis)

    The DIS function works only in Camera mode. ✤ DIS (Digital Image Stabiliser) is a function that compensates for any shaking or hand movement while holding the Camcorder (within reasonable limits). ✤ It provides more stable pictures when: - Recording with the zoom (DIS is not available in Digital Zoom mode.)

  • Page 62: Using Quick Menu: Digital Image Stabiliser (Dis)

    Advanced Recording Using Quick Menu: Digital Image Stabiliser (DIS) ✤ Quick menu is used to access Camcorder functions by simply using the Menu selector. ✤ Quick menu provides easier access to the frequently used menus without using the MENU button.

  • Page 63: Programmed Automatic Exposure Modes (Program Ae)

    Advanced Recording Programmed Automatic Exposure Modes (Program AE) ✤ The Program AE function works only in Camera mode. ✤ The Program AE mode allows you to adjust shutter speeds and apertures to suit different recording conditions. ✤ They give you creative control over the depth of field. ■...

  • Page 64: Setting The Program Ae

    ENGLISH Advanced Recording Setting the Program AE 1. Set the Power switch to CAMERA. 2. Set the Mode switch to TAPE. (VP-D353(i)/D354(i)/D355(i) only) 3. Press the MENU button. The menu list will appear. ■ 4. Move the Menu selector to the left or right to select Camera, then press the Menu selector. 5.

  • Page 65: Applying Digital Effects

    Advanced Recording Applying Digital Effects ✤ The Digital Effect function works only in Camera mode. ✤ The Digital Effects enable you to give a creative look to your recording. ✤ Select the appropriate Digital Effect for the type of picture that you wish to record and the effect you wish to create. ✤...

  • Page 66: Selecting The Digital Effects

    ENGLISH Advanced Recording Selecting the Digital Effects 1. Set the Power switch to CAMERA. 2. Set the Mode switch to TAPE. (VP-D353(i)/D354(i)/D355(i) only) 3. Press the MENU button. ■ The menu list will appear. 4. Move the Menu selector to the left or right to select Camera, then press the Menu selector. 5.

  • Page 67: Zooming In And Out With Digital Zoom

    Advanced Recording Zooming In and Out with Digital Zoom ✤ Zoom works only in Camera mode. Selecting the Digital Zoom ✤ Zooming more than 20x is achieved digitally, up to 900x when combined with optical zoom. ✤ The picture quality may deteriorate depending on how much you zoom in on the subject. ✤...

  • Page 68: Photo Image Recording

    3. Press the PHOTO button. ■ The still picture is recorded for about 6~7 seconds. 4. After the PHOTO has been recorded, the Camcorder returns to its previous mode. Searching for a Photo Image ✤ The Photo Search works only in Player mode.

  • Page 69: Playback

    The adjustment method is the same procedure as used in Camera mode. (see page 32) [ Notes ] ■ You can also view the picture on a TV screen, after connecting the Camcorder to a TV or VCR. (see page 71~72) ■ Various functions are available in Player mode. (see page 73) ■...

  • Page 70: Controlling Sound From The Speaker

    ■ [ Notes ] ■ When the AV cable is connected to the Camcorder, you cannot hear sound from the Built-In Speaker and cannot adjust the volume. ■ The sound will return when you remove the connected AV cable from the jack of your Camcorder.

  • Page 71: Tape Playback

    Even if you use an S-Video (optional) cable, you need to connect an audio cable. ■ If you connect the cable to the Audio/Video jack, you will not hear sound from the Camcorder's speakers. ■ If only a mono audio input is available on the TV set, use the audio cable with the white jack(Audio L).

  • Page 72: Connecting To A Tv Which Has No Audio And Video Input Jacks

    Playback Connecting to a TV which has no Audio and Video Input Jacks ✤ You can connect your Camcorder to a TV through a VCR. 1. Connect the Camcorder to your VCR with the Audio/Video cable. ■ The yellow jack: Video The white jack: Audio(L) - Mono ■...

  • Page 73: Various Functions While In Player Mode

    The F.ADV(Frame advance), X2, SLOW buttons are located on the remote control only. (VP-D353(i)/D354(i)/D355(i) only) ✤ To prevent tape and head-drum wear, your Camcorder will automatically stop if it is left in still or slow modes for more than 3 minutes.

  • Page 74: Frame Advance (To Play Back Frame By Frame) (Vp-D353(I)/D354(I)/D355(I) Only)

    ENGLISH Playback Frame Advance (To play back frame by frame) (VP-D353(i)/D354(i)/D355(i) only) ■ Press the F.ADV button on the remote control while in still mode. - Video sequence advances frame by frame each time you press the F.ADV button. - The F.ADV function works in still mode only. ■...

  • Page 75: Zooming During Playback (Pb Zoom)

    You cannot apply the Playback Zoom function to pictures which are being input from an external video source. ■ The Playback Zoom image cannot be imported to your PC from the Camcorder’s DV jack. ■ The PB ZOOM images cannot be exported to a PC.

  • Page 76: Av In/Out (Vp-D351I/D352I/D353I/D354I/D355I Only)

    Menu selector. 9. Move the Menu selector to the left or right to select In, then press the Menu selector. If you want to see the Camcorder picture with a TV, set AV In/Out menu to Out. ■ 10. To exit, press the MENU button.

  • Page 77: Audio Dubbing (Vp-D353(I)/D354(I)/D355(I) Only)

    1. Set the Power switch to PLAYER. ■ If you want to use an external microphone, connect the microphone to the external MIC input jack on the Camcorder. 2. Set the Mode switch to TAPE. 3. Press the (PLAY/STILL) button and find the time frame of the scene to be dubbed.

  • Page 78: Dubbed Audio Playback

    ENGLISH Playback Dubbed Audio Playback 1. Set the Power switch to PLAYER. 2. Set the Mode switch to TAPE. (VP-D353(i)/D354(i)/D355(i) only) 3. Insert the dubbed tape and press the MENU button. 4. Move the Menu selector to the left or right to select Tape, then press the Menu selector. 5.

  • Page 79: Ieee 1394 Data Transfer

    If a product has a DV port, you can transfer data by connecting to the DV port using the correct cable. !!! Please be careful since there are two types of DV ports, (4pin, 6pin). This Camcorder has a 4pin terminal.
  • Page 80 Operation is not guaranteed for all the recommended computer environments mentioned above. ■ While transmitting data from the Camcorder to PC at strong electric field and strong magnetic field, VIDEO signal or AUDIO signal may transmit with noise. (STOP) button.

  • Page 81: Usb Interface (Vp-D352(I)/D353(I)/D354(I)/D355(I) Only)

    USB Streaming requires Video Codec, DV Driver and DirectX 9.0. ■ If you disconnect the USB cable from the PC or the Camcorder during the data transfer, the data transfer will stop and the data may be damaged. ■ If you connect the USB cable to a PC using a USB HUB or with other devices at the same time, it may cause conflict and may not work properly.
  • Page 82 USB Select function works only in M.Player mode. ✤ Using the USB cable, you can connect your Camcorder to a computer to copy your movies and images from the Memory card (or built-in memory;VP-D354(i)/D355(i)), or to a printer to print your images.
  • Page 83 USB Interface (VP-D352(i)/D353(i)/D354(i)/D355(i) only Setting the USB Communication Speed (VP-D353(i)/D354(i)/D355(i) only) ✤ To ensure proper communication between the camcorder and a PC, please set the USB Version before connecting the camcorder to a PC. ✤ It is available only in M.Cam and M.Player modes.
  • Page 84 USB Interface (VP-D352(i)/D353(i)/D354(i)/D355(i) only) Installing DV Media PRO 1.0 Program ✤ To play back MPEG moving pictures recorded by the camcorder or streaming data transferred through the USB connection on a PC, the Video Codec program should be installed. ✤...
  • Page 85 ■ 320X240 (QVGA) pixels for USB 1.1 connection. ✤ If PC is connected with the USB to the Camcorder, only the Power, Mode, Zoom and NITE PIX switches can be operated. 1. Set the Power switch to CAMERA. 2. Set the Mode switch to TAPE. (VP-D353(i)/D354(i)/D355(i) only) 3.
  • Page 86 1. Set the Mode switch to TAPE(VP-D353(i)/D354(i)/D355(i) only), set the Power switch to CAMERA or PLAYER. 2. Connect one end of the USB cable to the USB jack on the Camcorder and the other end to the USB port on your computer.

  • Page 87: Digital Still Camera Mode (Vp-D353(I)/D354(I)/D355(I) Only)

    Formatting a Memory Stick ■ [ Notes ] ■ You can use most of the Camcorder’s functions when recording to the Memory Stick. ■ appears on the screen while recording to the Memory Stick. ■ While recording or loading an image, do not eject or insert the Memory Stick.

  • Page 88: Inserting And Ejecting The Memory Card

    Do not bend, drop or apply strong shock to Memory card. ■ After pulling the Memory card out from the Camcorder, please keep the Memory card in a soft case to prevent static shock. ■ The stored contents may be changed or lost as a result of misuse, static electricity, electric noise or repair.

  • Page 89: Structure Of Folders And Files On The Memory Card

    ✤ You can use this Camcorder as a Digital Still Camera (DSC). ✤ You have to set the Mode switch to Memory card to use this Camcorder as Digital Still Camera. M.Cam mode (Memory record mode) 1. Set the Power switch to CAMERA.

  • Page 90: Selecting The Built-In Memory (Vp-D354(I)/D355(I) Only)

    ENGLISH Digital Still Camera Mode (VP-D353(i)/D354(i)/D355(i) only) Selecting the Built-in Memory (VP-D354(i)/D355(i) only) ✤ Built-in memory setting is available in the Player/M.Cam/M.Player modes. (VP-D354(i): 16MB/VP-D355(i): 64MB) ✤ Images can be stored and played back using the built-in memory. Hence, set the memory type before storing and playing back images. 1.

  • Page 91: Selecting The Image Quality

    Digital Still Camera Mode (VP-D353(i)/D354(i)/D355(i) only) Selecting the Image Quality ✤ Photo Quality function works in Player/M.Cam modes. ✤ You can select the quality of a still images to be recorded. Select the Image Quality 1. Set the Power switch to CAMERA or PLAYER. 2.

  • Page 92: Using Quick Menu: Photo Quality

    Digital Still Camera Mode (VP-D353(i)/D354(i)/D355(i) only) Using Quick Menu: Photo Quality ✤ Quick menu is used to access Camcorder functions by using the Menu selector. ✤ Quick menu provides easier access to frequently used menus without using the MENU button.

  • Page 93: Memory File Number

    Digital Still Camera Mode (VP-D353(i)/D354(i)/D355(i) only) Memory File Number ✤ File number setting works only in M.Cam mode. ✤ File numbers are given to images in the order they were recorded when they are stored on the Memory card. ✤ Memory file numbers may be set as follows: ■...

  • Page 94: Taking Photos

    ✤ You may take still images while in M.Cam mode and store the images on the Memory card. This function is useful when you want to take a snapshot of a subject while you are using the Camcorder. ✤ You can take photos using the remote control.

  • Page 95: Viewing Still Images

    Digital Still Camera Mode (VP-D353(i)/D354(i)/D355(i) only) Viewing Still Images ✤ This function works only in M.Player mode. You can playback and view still images recorded on the Memory card. ✤ Be sure that the M.Play Select is set to Photo in the Menu. ✤...

  • Page 96: To View The Multi Display

    ENGLISH Digital Still Camera Mode (VP-D353(i)/D354(i)/D355(i) only) To view the Multi Display 1. Set the Power switch to PLAYER. 2. Set the Mode switch to MEMORY CARD. ■ The last recorded image appears. 3. To view six stored images on single screen, press the ■...

  • Page 97: Protection From Accidental Erasure

    Digital Still Camera Mode (VP-D353(i)/D354(i)/D355(i) only) Protection from accidental Erasure ✤ The protection function works only in M.Player mode. ✤ You can protect important images from accidental erasure. If you execute format, all images including protected images will be erased. 1.

  • Page 98: Using Quick Menu: Protect

    Digital Still Camera Mode (VP-D353(i)/D354(i)/D355(i) only) Using Quick Menu: Protect ✤ Quick menu is used to access Camcorder functions by simply using the Menu selector. ✤ Quick menu provides easier access to the frequently used menus without using the MENU button.

  • Page 99: Deleting Still Images And Moving Images

    Digital Still Camera Mode (VP-D353(i)/D354(i)/D355(i) only) Deleting Still Images and Moving Images ✤ The Delete function works only in M.Player mode. ✤ You can erase the still images and moving images recorded on the Memory card. ✤ If you want to delete protected images, you must first deactivate the image protection. ✤...

  • Page 100: Using Quick Menu: Delete

    Digital Still Camera Mode (VP-D353(i)/D354(i)/D355(i) only) Using Quick Menu: Delete ✤ Quick menu is used to access Camcorder functions by simply using the Menu selector. ✤ Quick menu provides easier access to the frequently used menus without using the MENU button.

  • Page 101: Formatting The Memory Card

    ✤ The format function restores the Memory card to its initial state. ✤ The Memory card supplied with this Camcorder has been formatted already. Attention ✤ If you execute the memory format function, all images will be erased completely and erased images cannot be recovered.

  • Page 102: Mpeg Recording

    To start recording, press the MENU button to make it disappear. ■ Before using the MPEG REC function, check whether the Memory card is inserted into the Camcorder. ■ Moving images that you recorded are saved in *.avi(avi 1.0) file format on the Memory card.

  • Page 103: Mpeg Playback

    ■ To playback MPEG4 moving pictures on a PC, the Video Codec (in the CD provided with the camcorder) should be installed. - You need Microsoft Windows Media Player Version 9 or higher version in order to play MPEG4 file on the Memory card on your - You can download the Microsoft Windows Media Player applied each languages on Microsoft Website, “http://www.microsoft.com/windows/windowsmedia/download/default.asp”.

  • Page 104: Using Quick Menu: M.play Select

    Digital Still Camera Mode (VP-D353(i)/D354(i)/D355(i) only) Using Quick Menu: M.Play Select ✤ Quick menu is used to access Camcorder functions by simply using the Menu selector. ✤ Quick menu provides easier access to the frequently used menus without using the MENU button.

  • Page 105: Recording An Image From A Cassette As A Still Image

    Digital Still Camera Mode (VP-D353(i)/D354(i)/D355(i) only) Recording an Image from a Cassette as a Still Image ✤ This function works only in Player mode. ✤ You can record still images from a cassette on a Memory card. ✤ If you want to move recorded multiple still images from a cassette to a Memory card, use the COPY function.

  • Page 106: Copying Still Images From A Cassette To Memory Card

    5. Move the Menu selector to the left or right to select Photo Copy, then press the Menu selector. All still images that recorded on a cassette will be copied into a Memory card. ■ 6. The Camcorder automatically performs the photo search to find still images and copy starts. 7. Press the (STOP) button to stop copying.

  • Page 107: Copy To (Copies Files From The Memory Card To The Built-In Memory) (Vp-D354(I)/D355(I) Only)

    Digital Still Camera Mode (VP-D353(i)/D354(i)/D355(i) only) Copy to (Copies Files from the Memory Card to the Built-in Memory) (VP-D354(i)/D355(i) only) ✤ The Copy To function works only in M.Player mode. ✤ You can copy selected or all images stored in the Memory card to the built-in memory. 1.

  • Page 108: Marking Images For Printing

    ENGLISH Digital Still Camera Mode (VP-D353(i)/D354(i)/D355(i) only) Marking Images for Printing ✤ This Camcorder supports the DPOF (Digital Print Order Format) print format. ✤ You can automatically print images recorded on a Memory card with a printer supporting DPOF. ✤...

  • Page 109: Using Quick Menu: Print Mark

    Digital Still Camera Mode (VP-D353(i)/D354(i)/D355(i) only) Using Quick Menu: Print Mark ✤ Quick menu is used to access Camcorder functions by simply using the Menu selector. ✤ Quick menu provides easier access to the frequently used menus without using the MENU button.

  • Page 110: Pictbridge Tm (Vp-D353(I)/D354(I)/D355(I) Only)

    ✤ With the PictBridge Support, you can control the printer directly through your Camcorder in order to print out stored pictures. For direct printing of your stored pictures using the PictBridge function, you must connect your Camcorder to a PictBridge printer using a USB cable.
  • Page 111 ■ Use the AC power adapter for your Camcorder during PictBridge Direct Printing. Turning your Camcorder off during the printing might damage data on the Memory card. ■ Printing still images is supported. Motion clips are not available for printing.

  • Page 112: Maintenance

    At the end of a recording you must remove the power source. ✤ When recording with a Lithium ion Battery pack, leaving the pack on the Camcorder can reduce the life span of the battery. The Battery pack should be release after recording is completed.

  • Page 113: Cleaning And Maintaining The Camcorder

    Clean the video heads with a dry type cassette cleaner. ■ Some cleaning cassette products stop automatically. Refer to the cleaning cassette’s instructions for detailed information. If the problem continues after the cleaning, consult your nearest Samsung dealer or Authorised Service Centre. (blue screen) ENGLISH...

  • Page 114: Using Your Camcorder Abroad

    ✤ Before using your Camcorder abroad, check the following items. Power sources You can use your Camcorder in any country or area with the supplied AC Power adapter within 100V to 240V, 50/60 Hz. ■ ■ Use a commercially available AC jack adapter, if necessary, depending on the design of the local wall outlet.

  • Page 115: Troubleshooting

    ✤ If the Camcorder is brought directly from a cold place to a warm place, moisture may condense inside the Camcorder, on the surface of the tape, or on the lens. In this condition, the tape may stick to the head drum and be damaged or the unit may not operate correctly.
  • Page 116 Protect! slow protected image. The Camcorder can not Read error! slow playback. Write error! slow The Camcorder can not record. The Memory card needs to Not Formatted! slow format. Now deleted... slow When progressing file delete. Memory Card If inserted Memory Card is not...
  • Page 117 Troubleshooting ✤ If these instructions do not solve your problem, contact your nearest Samsung authorised service centre. Symptom Explanation/Solution You cannot switch the Check the Battery pack or the AC Power adapter. Camcorder on. Start/Stop button Check the Power switch is set to CAMERA.

  • Page 118: Specifications

    ENGLISH Specifications Model Name: VP-D351(i)/D352(i)/D353(i)/D354(i)/D355(i) System Video signal Video recording system 2 rotary heads, Helical scanning system Audio recording system Rotary heads, PCM system Usable cassette Digital video tape (6.35mm width): Mini DV cassette Tape speed SP: approx. 18.83mm/s Tape recording time SP: 60 minutes (when using DVM 60), LP: 90 minutes (when using DVM 60) FF/REW time Approx.

  • Page 119: Index

    Index - A - Accessories ...12 AF/MF ... 58 Audio Dubbing ... 77 Audio Mode... 55 - B - Battery Pack ... 21 BLC ... 46 - C - Cassette ... 36 Cleaning ... 113 Clock Set... 27 Connecting ... 71 - D - Date/Time ...

  • Page 120: Power Sources (United Kingdom Only)

    ENGLISH Power Sources (United Kingdom Only) The mains lead on the power adapter is supplied with a moulded plug incorporating a fuse. The value of the fuse is indicated on the pin face of the plug and, if it requires replacing, a fuse approved to BS1362 of the same rating must be used.
  • Page 121 2. Samsung’s obligations are limited to the repair or, at its discretion, replacement of the product or the defective part. 3. Warranty repairs must be carried out by Authorised Samsung Dealers or Authorised Service Centres.
  • Page 122 SAMSUNG SAMSUNG service, service FOURLIS TRADE A.E.B.E. service SAMSUNG (GREECE) SAMSUNG service service SAMSUNG. SAMSUNG Iaser CD DVD...
  • Page 123 FOURLIS TRADE A.E.B.E. service SAMSUNG,...
  • Page 124 ENGLISH THIS CAMCORDER IS MANUFACTURED BY: *Samsung Electronics’ Internet Home Page United Kingdom http://www.samsungelectronics.co.uk AD68-00839G...

This manual is also suitable for:

D354(i)Vp-d351iVp-d352Vp-d305iVp-d351Vp-d353 ... Show all

Table of Contents
