PSACH01246EKO
v.1.0
PSACH 24VAC/6A/1x6A
AC power supply for 1 rotating camera, ABS enclosure
EN
Edition: 1 from 14.04.2020
Supersedes the edition: ------------

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PSACH01246EKO and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Pulsar PSACH01246EKO

Summary of Contents for Pulsar PSACH01246EKO

  • Page 1 PSACH01246EKO v.1.0 PSACH 24VAC/6A/1x6A AC power supply for 1 rotating camera, ABS enclosure Edition: 1 from 14.04.2020 Supersedes the edition: ------------...

  • Page 2: Table Of Contents

    PSACH01246EKO Features:  ~  24 V /6 A power output for powering camera protections:   SCP short-circuit protection power voltage ~230 V  OLP overload protection  OHP overheat protection  IP 65 ABS, hermetic enclosure ...

  • Page 3: Technical Description

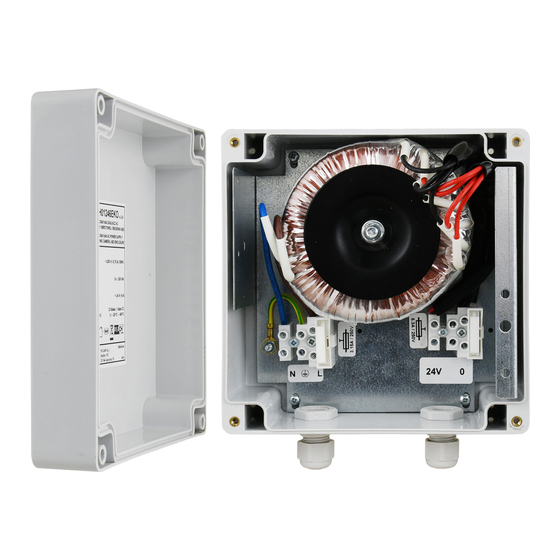

    PSACH01246EKO 1. Technical description. 1.1. General description. The AC/AC PSU intended for supplying devices requiring voltage AC of 24 V and total capacity of 6 A. It features protections: short-circuit (SCP), overload (OLP), transformer overheat (OHP). The PSU is housed in a ABS enclosure.

  • Page 4: Specifications

    PSACH01246EKO 1.4 Specifications: - electrical specifications (tab.2) - mechanical specifications (tab.3) - operation safety (tab.4) - operating specifications (tab.5) Electrical specifications (tab. 2). Mains supply ~230 V Current consumption 0,75 A Power frequency 50 Hz Power of the S PSU 150 VA max.

  • Page 5: Installation

    PSACH01246EKO Operating specifications (tab.5). Operating temperature -25ºC...+40ºC Storage temperature -25ºC...+60ºC Relative humidity 10%...90% without condensation Vibrations during operation unacceptable Impulse waves during operation unacceptable Direct insolation unacceptable Vibrations and impulse waves during transport PN-83/T-42106 2. Installation. 2.1 Requirements The AC/AC power supply is to be mounted by a qualified installer, holding relevant permits and licenses (applicable and required for a given country) for 230 V interference and low-voltage installations.

  • Page 6: Maintenance

    According to the EU WEE Directive – It is required not to dispose of electric or electronic waste as unsorted municipal waste and to collect such WEEE separately. Pulsar sp. j. Siedlec 150, 32-744 Łapczyca, Polska Tel. (+48) 14-610-19-40, Fax. (+48) 14-610-19-50 e-mail: biuro@pulsar.pl,...
