- Page 1 PSU-U-24V/AC-4A/4/FTA/PTC-TR-MC PSAC 04244 v.1.0 AC/AC power supply unit Edition: 1 dated 03.03.2010 Replaces edition: -------...
- Page 2 24 V AC and 12 V DC/24 V DC supply system. Information about types: Model Description PSAC 08246 AC/AC 24 V AC power supply, with overall current efficiency of 6 A@24V PSU-U-24V/AC-6A/8/FTA/PTC-TR-MC and switched output voltage of 24.0 V/27.0 V. Equipped with AUX outputs condition signaling panel.
- Page 3 1.2. Block diagram (fig.1). Fig.1. Block diagram of the power supply. 1.3. Description of elements and connectors of the power supply ( table 1, table 2, fig. 2, fig.4). Element No. Description of LB4/24V/27V/AW elements [Fig. 2] L1÷L4 - LED diodes (green) signalling the status of L1=AUX1 output, etc. F1÷F4 fuses in AUX circuits, F1=AUX1 etc.

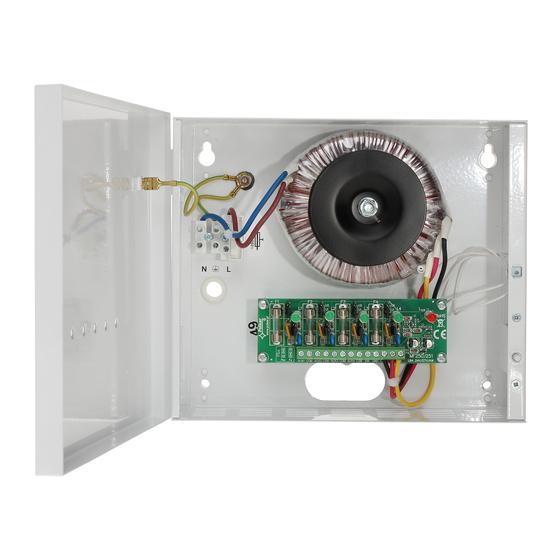

- Page 4 Fig.2. View of the LB4/24/27/AW fuse block. Element No. Description of power supply elements [Fig. 4] Separating transformer LB4/24V/27V/AW fuse block (table 1) TAMPER, anti-sabotage protection contact (NC) F fuse in supply circuit (230 V AC) L-N connection of 230 V AC power supply, PE protection connection Table 2.
- Page 5 Fig.4. View of the power supply.
- Page 6 1.4. Technical parameters: - electrical parameters (table 3) - mechanical parameters (table 4) - user safety (table 5) - operation parameters (table 6) Electrical parameters (table 3). Supply voltage 230 V AC (-15%/+10%) Supply frequency 50 Hz PSU power 100 VA max. Power consumption 0.5 A max.
- Page 7 Operating parameters (table 6). Operating temperature -10ºC...+40ºC -25ºC...+60ºC Storing temperature Relative humidity 10%...90% without condensation Vibrations during operation unacceptable Surges during operation unacceptable unacceptable Direct exposure to sunlight Vibrations and surges during transport According to PN-83/T-42106 2. Installation . 2.1 Requirements. AC/AC power supply shall be mounted by the qualified installer having appropriate (required and necessary for a given country) permissions and qualifications for connecting (operating) 230V/AC installations and low-voltage installations.
- Page 8 GENERAL WARRANTY CONDITIONS 1. Pulsar K. Bogusz Sp.j. (producer) provides two-year quality warranty for the device, counting from the date of sale indicated on the bill of sale. 2. In case when there is no bill of sale when filing the claim, three-year warranty period shall be counted from the date when the device was manufactured.
