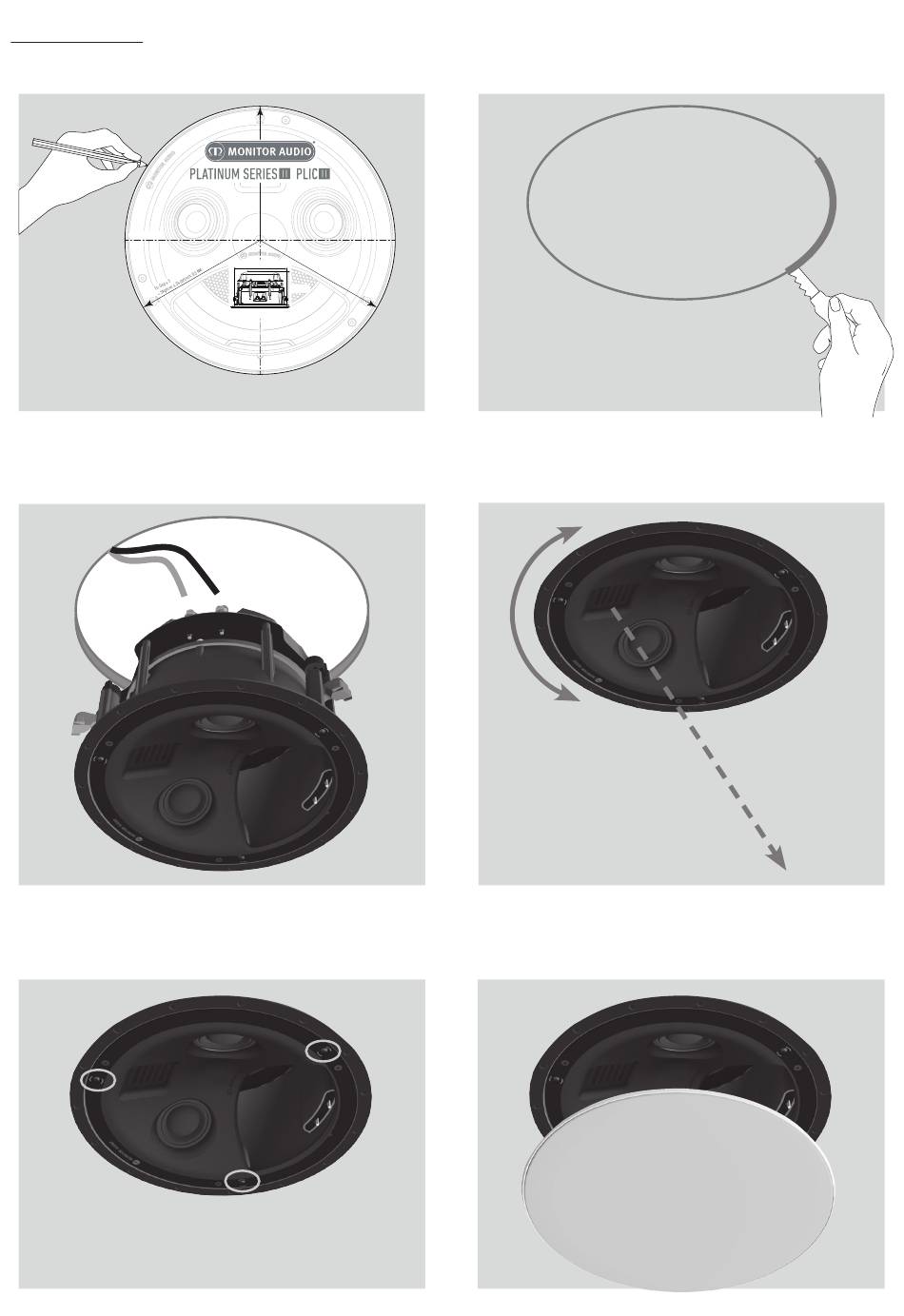

Installation
1.
Draw around template.
273mm (10
3/4
")
3.
Connect speaker cables. Refer to page 7 for more
information.
5.
Tighten the dog leg screws. Play some audio and
adjust the HF and MF switches as required.
Max Tightening =
5Kgf/cm; 4.34 lbf/inch; 0.5 NM
6
273mm (10
3/4
")
185mm (7
")
5/16
PLIC II
Platinum In-Ceiling II
2.
Cut around marked line.
4.
Position into the ceiling so that the tweeter is
angled towards the listening position.
6.
Place grille on the speaker. This is held in place
magnetically.
