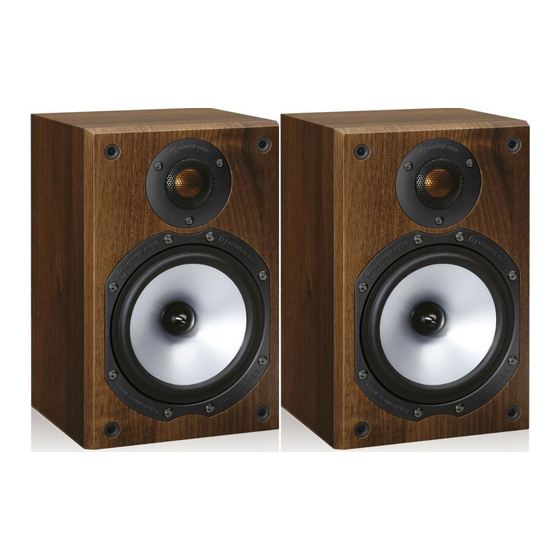

Monitor Audio Monitor Reference Series Owner's Manual
Hide thumbs
Also See for Monitor Reference Series:
- Owner's manual (13 pages) ,
- Owner's manual (14 pages)
Related Manuals for Monitor Audio Monitor Reference Series
Summary of Contents for Monitor Audio Monitor Reference Series

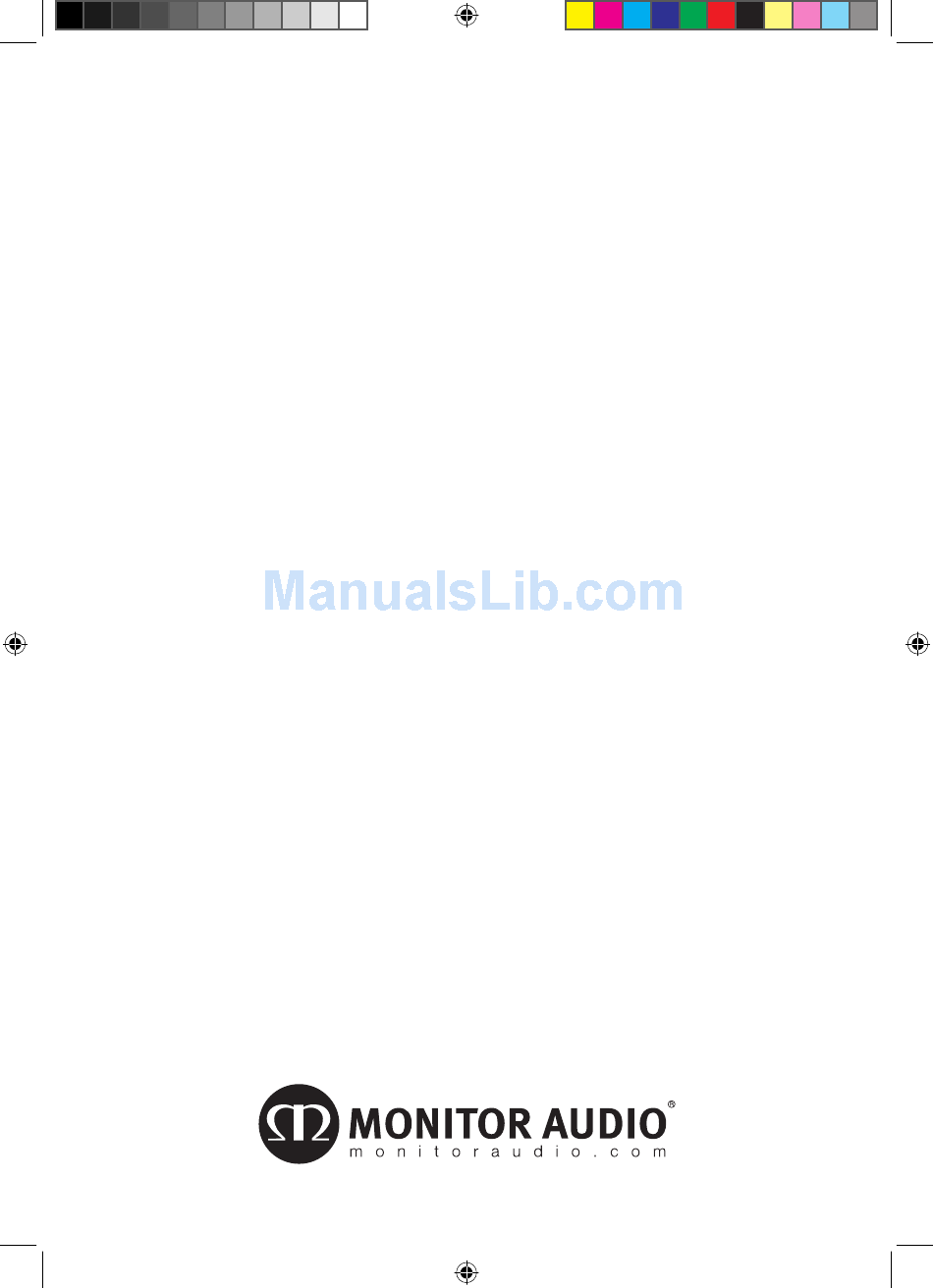

- Page 1 M O NITO R REFERE NCE o w n e r s m a n u a l m o n i t o r a u d i o . c o . u k Monitor Ref Manual Rev1.2.indd 1 30/03/2012 10:37:39...
- Page 2 Monitor Ref Manual Rev1.2.indd 2 30/03/2012 10:37:39...
-
Page 3: Table Of Contents
Monitor Reference series to life. Resplendent in a stunning black oak vinyl furniture finish and built with the accuracy that exemplifies the Monitor Audio brand world-wide, the six model strong Monitor Reference Series will look gorgeous in any room. -
Page 4: Positioning
If it is below or above ear height, use some rubber feet (small feet supplied) to angle it slightly. Left Centre Right 0° 22° 30° 90° Surround Surround Left Right 110° 135° 150° Rear Rear Surround Surround Left Right Monitor Reference Series Monitor Ref Manual Rev1.2.indd 2 30/03/2012 10:37:39... -
Page 5: Channel Positioning
FIxINg The Monitor Reference Series floor standing loudspeakers, come with spikes. These enhance the acoustic performance of the loudspeaker and should be used where possible. The spikes can be found in the packaging of the MR4 and MR6 only. -
Page 6: Wiring Configurations
When bi-wiring these speakers, you must remove the terminal links. Failure to do so will result in damage to your amp. Monitor Reference Series Monitor Ref Manual Rev1.2.indd 4 30/03/2012 10:37:41... -
Page 7: Port Bungs
PORT buNgs WARNING: Care must be taken not to insert the port bungs too far into the port, as this may result in the foam bung being lost inside the cabinet. If the loudspeaker is to be installed in a small room, typically 9 sqM ( 80 sqFT), or a room known to reproduce accentuated bass response, it may be desirable to fit port bungs. -
Page 8: Amp Panel & Controls
Date: 2ND MARCH 2011 PAINTED TEXT : WHITE FONT : HELVETICA & ARIAL TO RE AFIN DE RÉD LE COUVERCLE PAR L’UTILIS Notes: 1. ARTWORK SCREENPRINTED ON. 2. COLOUR : WHITE Monitor Reference Series Monitor Ref Manual Rev1.2.indd 6 30/03/2012 10:37:41... -
Page 9: Power Led
1. Power Mode Switch with On-Auto-Off Facility The Power Mode Switch has three positions: ‘On’–‘Auto’–‘Off’. With the switch in the ‘On’ position, the subwoofer is permanently switched on under all conditions. In the ‘Auto’ position the subwoofer will automatically switch on when an input signal is received and will remain on until no signal is received for around 10-15 minutes, the MRW-10 will then switch into standby mode until a signal is received once more. -
Page 10: Positioning & Initial Set Up Of Mrw-10
Input connections can be made at this stage before the power is connected to the subwoofer. Never connect or disconnect any leads with the subwoofer connected to the mains. Monitor Reference Series Monitor Ref Manual Rev1.2.indd 8 30/03/2012 10:37:42... -
Page 11: Set Up
Switch in the Auto or On position, and the source is turned on? Try adjusting the volume level of the source and try the switch in the ‘On’ position. If it still does not turn on/ power up, please contact your local dealer/ distributor or Monitor Audio immediately. -
Page 12: Specifications
MRW-10 Monitor Reference Series Monitor Ref Manual Rev1.2.indd 10 30/03/2012 10:37:42... -
Page 13: Owner Information
E-mail address ........................Telephone Number ......................Monitor Audio reserves the right to alter specifications without notice. For the 5 years manufacturer’s warranty for speakers, 2 years for sub woofers and to be entered into our monthly prize draw, please visit the online registration form at: www.monitoraudio.com monitoraudio.com... - Page 14 Monitor Ref Manual Rev1.2.indd 12 30/03/2012 10:37:42...
- Page 15 Monitor Ref Manual Rev1.2.indd 13 30/03/2012 10:37:42...
- Page 16 . c o . u k Monitor Audio Ltd. 24 Brook Road Rayleigh, Essex SS6 7XJ England Tel: +44 (0)1268 740580 Fax: +44 (0)1268 740589 Email: info@monitoraudio.co.uk Web: www.monitoraudio.com Designed in the United Kingdom ©...
