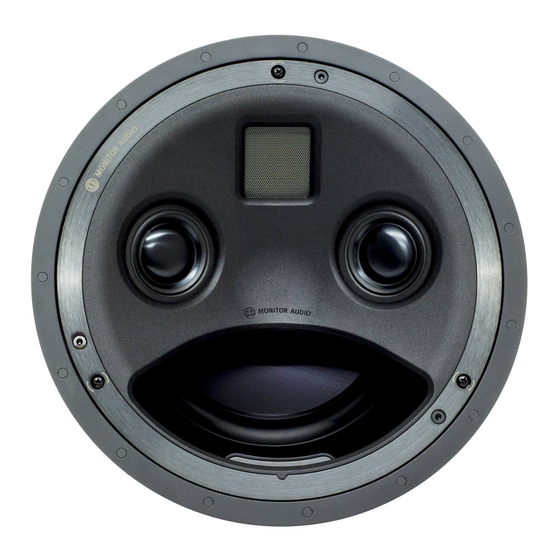

Summary of Contents for Monitor Audio Platinum In-Ceiling II

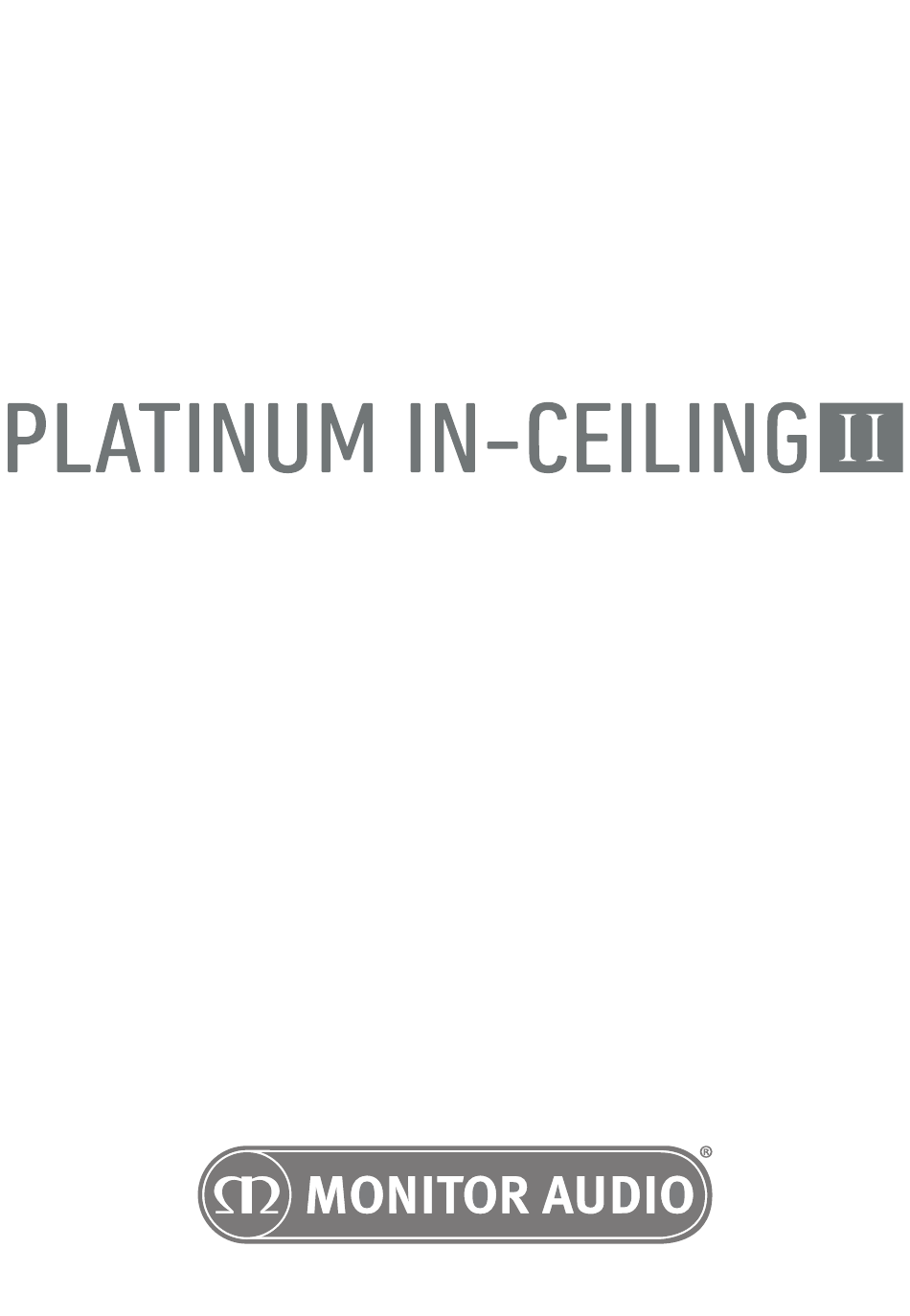

- Page 1 O w n e r s M a n u a l...
-
Page 3: Table Of Contents
ARC® (Anti-Resonance Composite) 3 Setting Up 4 2-Channel Positioning 4 AV Positioning 4 Atmos 5 Prior to Fitting the Platinum In-Ceiling II Speakers 5 Over Tightening Warning 5 Installation 6 Connecting Speaker Cables 7 Level Adjustment Switches 7 Painting the Grilles 7... -
Page 4: Introduction From The Technical Director
By consistently refining and applying the technology, Monitor Audio has become the world’s foremost proponent of metal dome drivers. Monitor Audio designs everything in house at their world headquarters in England, so that it can optimise the incomparable blend of virtues that makes Monitor Audio loudspeakers unique: clean, dynamic sound, superior build quality and innovative design. -
Page 5: Technologies
ARC is used for mid-range housings and baffle components. ARC is a unique material, developed specifically by Monitor Audio engineers for the Platinum II series. Its properties ensure energy is damped out and not emitted as high-Q resonance. -
Page 6: Setting Up
A 7.(1) surround system will make use of side (position 1) and rear (position 2) speakers to create a full 360° soundstage, if setting up a 5.(1) system you can place your surrounds in position (1) or (2). Platinum In-Ceiling II... -
Page 7: Atmos
CPCT380-IDC can be found on our website: monitoraudio.com The reason we do not suggest the Platinum In-Ceiling II for Atmos duties is due to the tweeter being a fixed, angled position. The C380-IDC and CPCT380-IDC on the other hand offer up to 18 degrees pivot in all directions and can be fitted directly above the seating position in the case of a 2 Atmos speaker setup. -
Page 8: Installation
Tighten the dog leg screws. Play some audio and Place grille on the speaker. This is held in place adjust the HF and MF switches as required. magnetically. Max Tightening = 5Kgf/cm; 4.34 lbf/inch; 0.5 NM Platinum In-Ceiling II... -
Page 9: Connecting Speaker Cables
Connecting Speaker Cables The Platinum In-Ceiling II has one set of terminals for single wiring. Single wiring is achieved by using a single set of cables to the binding posts on the side of the speaker. Internally the speaker crossover guides the frequencies to the appropriate driver/tweeter - low frequencies to the bass drivers, mid frequencies to the mid/bass driver and high frequencies to the tweeter. -
Page 10: Specifications
Baffle – Die cast aluminium Low profile trimless grille with magnetic fixings – Paintable Grille Type (Square grille available as a cost option) Weight Each 5.22Kg (11lb 8oz) Monitor Audio reserves the right to alter specifications without notice. Platinum In-Ceiling II... - Page 12 Monitor Audio Ltd. 24 Brook Road Rayleigh, Essex SS6 7XJ England Tel: +44 (0)1268 740580 Fax: +44 (0)1268 740589 Email: info@monitoraudio.co.uk Web: www.monitoraudio.com Designed & Engineered in the United Kingdom Made in China Version 2. 2018...
