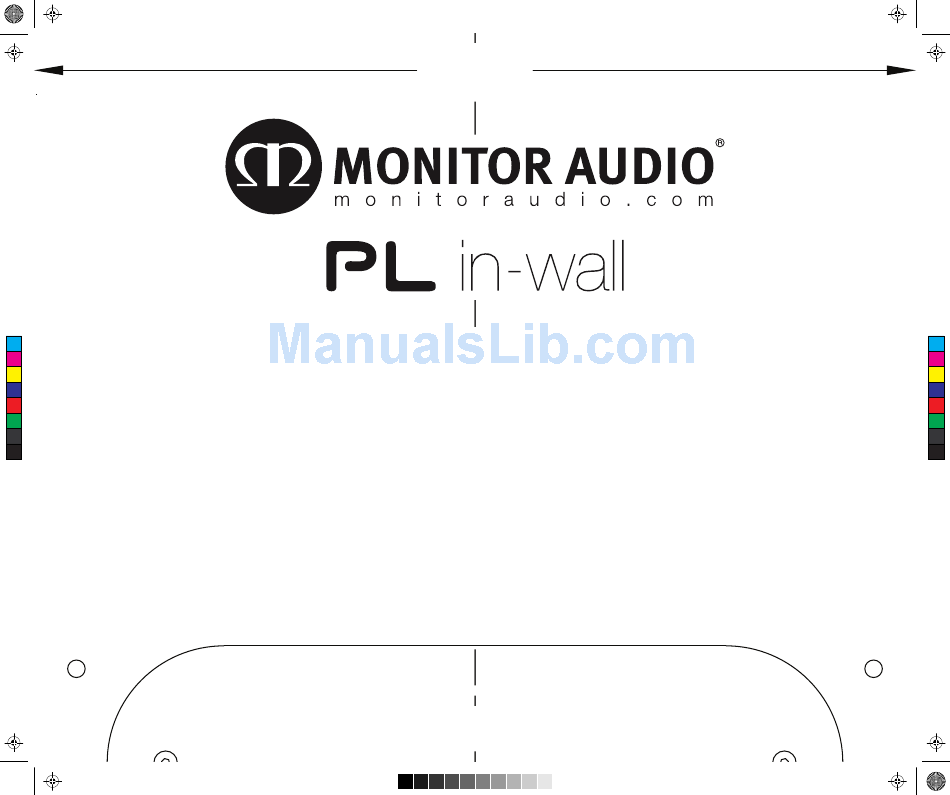

Monitor Audio PL IW Template

PLIW Fixing Template rev1.pdf 1 14/12/2010 11:43:59
How to use this Template
C
M
Cut out Dimensions: 302 x 1179mm (11 7/8 x 46 7/16")
Y
1. Place this template at the proposed top edge of the PL IW.
CM
MY
2. Measure and mark 680mm from the bottom edge of this template.
CY
3. Remove, rotate and re-use this template to mark the bottom of the cut out area.
CMY
K
4. Join the vertical lines to complete the cut out area.
How to use this Template
Cut out Dimensions: 302 x 1179mm (11 7/8 x 46 7/16")
1. Place this template at the proposed left edge of the PL IW.
2. Measure and mark 680mm from the bottom edge of this template.
3. Remove, rotate and re-use this template to mark the bottom of the cut out area.
4. Join the vertical lines to complete the cut out area.
302
(Vertical orientation)
(Horizontal orientation)
BOTTOM
