7. IR IN
Connect to the third-party IR control device.
5.
INSTALLATION & WIRING
5.1. Installation
The B-660-MTRX-4x4 occupies 1U space when installed in a standard 19" equipment rack.
Steps to Install the Matrix in an Equipment Rack:

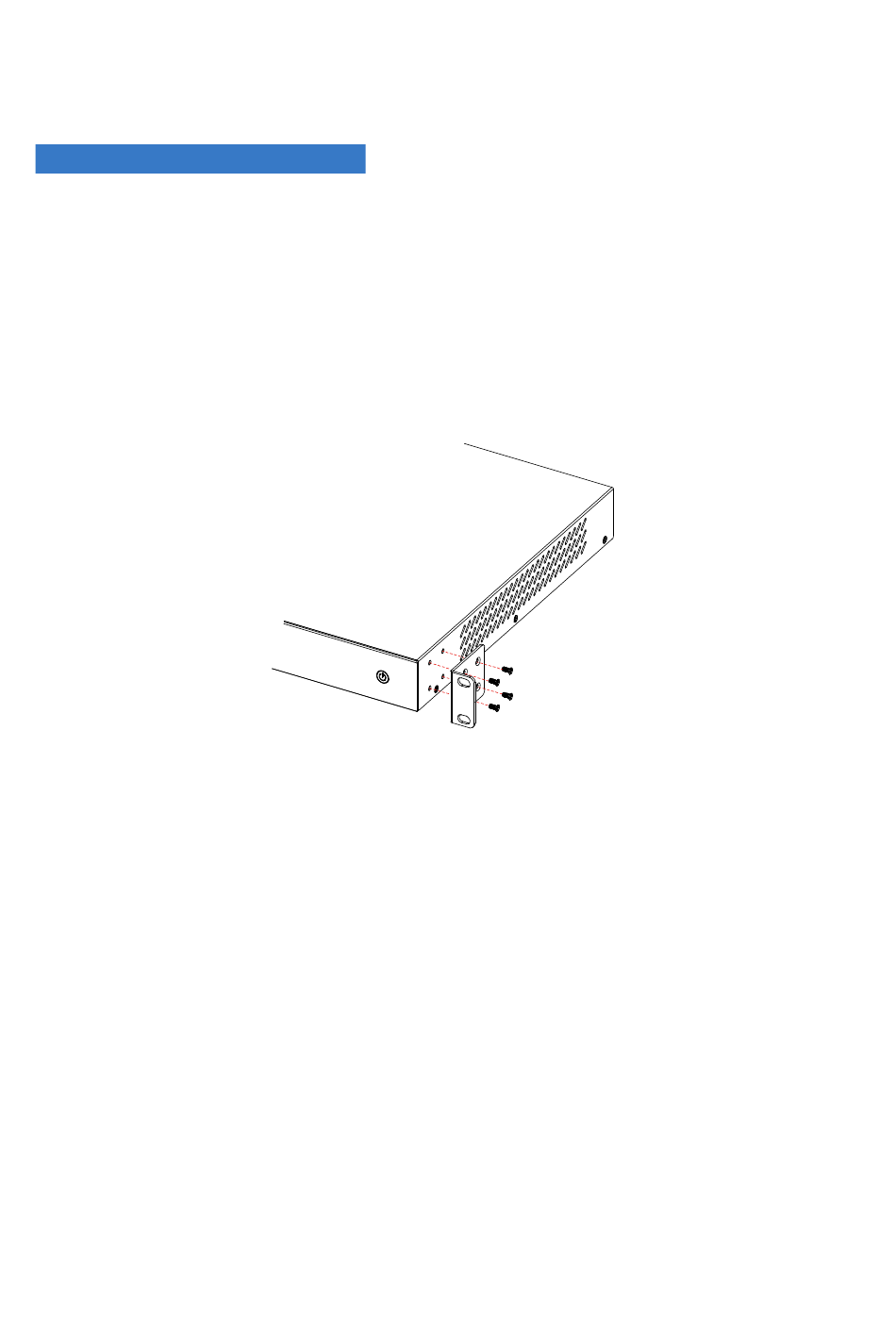

1. Attach the Mounting Ears to the enclosure using the screws provided in the package
separately.
2. The Mounting Ears are attached to the enclosure as shown.
3. Repeat steps 1-2 for the other side of the unit.
4. Mount and affix the unit in the rack with the mounting screws.
10
