HANGZHOU WORLDE DIGITAL PIANO CO.,LTD
HANGZHOU WORLDE MUSIC ELECTRONIC CO., LTD
WEBSITE: WWW.WORLDE.COM.CN
EMAIL:SALES@WORLDE.COM.CN
TEL:86 571 88730848
Worlde TUNA MINI MIDI Controller
User's Manual
- 1 -

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TUNA MINI and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Worlde TUNA MINI

Summary of Contents for Worlde TUNA MINI

  • Page 1 HANGZHOU WORLDE DIGITAL PIANO CO.,LTD HANGZHOU WORLDE MUSIC ELECTRONIC CO., LTD WEBSITE: WWW.WORLDE.COM.CN EMAIL:SALES@WORLDE.COM.CN TEL:86 571 88730848 Worlde TUNA MINI MIDI Controller User’s Manual - 1 -...

  • Page 2: Table Of Contents

    HANGZHOU WORLDE DIGITAL PIANO CO.,LTD HANGZHOU WORLDE MUSIC ELECTRONIC CO., LTD WEBSITE: WWW.WORLDE.COM.CN EMAIL:SALES@WORLDE.COM.CN TEL:86 571 88730848 Contents INTRODUCTION ................................3 FEATURES ..................................3 3. PARTS AND THEIR FUNCTIONS ............................. 5 3.1 TUNAMINI Keyboard Overview ............................... 5 3.1.1 Top Panel Overview ....................................5 3.1.2 Keyboard ........................................

  • Page 3: Introduction

    TEL:86 571 88730848 1. Introduction Thank you for purchasing the Worlde TUNAMINI USB MIDI controller. To help you get the most out of your new instrument, please read this manual carefully. In order to use the functions of this product, you’ll need to make settings in the application you’re using. Make settings as described in the owner’s manual for your application.
  • Page 4 HANGZHOU WORLDE DIGITAL PIANO CO.,LTD HANGZHOU WORLDE MUSIC ELECTRONIC CO., LTD WEBSITE: WWW.WORLDE.COM.CN EMAIL:SALES@WORLDE.COM.CN TEL:86 571 88730848 - 4 -...

  • Page 5: Parts And Their Functions

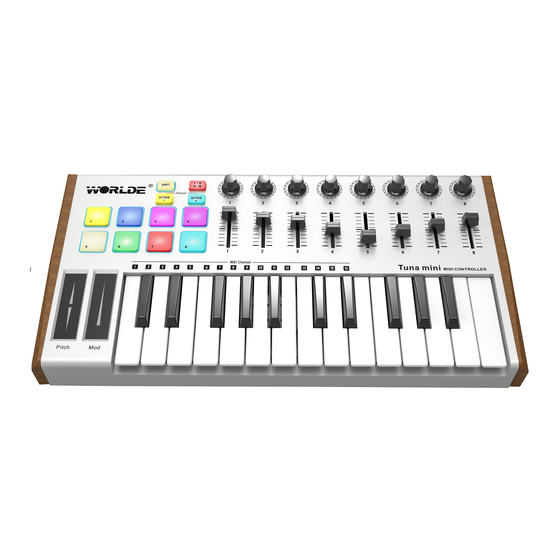

    HANGZHOU WORLDE DIGITAL PIANO CO.,LTD HANGZHOU WORLDE MUSIC ELECTRONIC CO., LTD WEBSITE: WWW.WORLDE.COM.CN EMAIL:SALES@WORLDE.COM.CN TEL:86 571 88730848 3. Parts and Their Functions 3.1 TUNAMINI Keyboard Overview 3.1.1 Top Panel Overview - 5 -...

  • Page 6: Keyboard

    HANGZHOU WORLDE DIGITAL PIANO CO.,LTD HANGZHOU WORLDE MUSIC ELECTRONIC CO., LTD WEBSITE: WWW.WORLDE.COM.CN EMAIL:SALES@WORLDE.COM.CN TEL:86 571 88730848 1. Trigger pads Pads can transmit note messages or control change messages. Use the TUNAMINI Software Editor to select the backlit RGB color of 8 pads. We’ll show you how to select the backlit RGB color of 8 pads in section 5.3.

  • Page 7: Pitch And Modulation Touch Strips

    HANGZHOU WORLDE DIGITAL PIANO CO.,LTD HANGZHOU WORLDE MUSIC ELECTRONIC CO., LTD WEBSITE: WWW.WORLDE.COM.CN EMAIL:SALES@WORLDE.COM.CN TEL:86 571 88730848 3.1.3 Pitch and Modulation touch strips If you touch the Pitch bend strip at its center and move your finger forward or backward it will alter the pitch of the played sound.

  • Page 8: Parameter Control Encoders

    When the Pads 1-8/9-16 button is not lit, the first bank of pads is active (1-8) which will send notes message at this moment. The 8 pads are just 8 keys now. Use the WORLDE TUNAMINI software editor to edit the key value for each pad.

  • Page 9: Side Panel Overview

    No. as required. For example, No.11 is the expression controller in MIDI standard, so if you want to use Slider 1 as expression control, you should assign CC No.11 to Slider1 with WORLDE TUNAMINI software editor, then the Slider1 will control the expression of your DAW.

  • Page 10: Setup

    HANGZHOU WORLDE DIGITAL PIANO CO.,LTD HANGZHOU WORLDE MUSIC ELECTRONIC CO., LTD WEBSITE: WWW.WORLDE.COM.CN EMAIL:SALES@WORLDE.COM.CN TEL:86 571 88730848 4.Setup 4.1 Minimum System Requirements Windows Mac OS Pentium 3 800 MHz or higher Macintosh G3*800/G4*733 MHz or higher (CPU requirement may be higher for laptops)

  • Page 11: Assign A Pad To Start/Stop Mmc

    HANGZHOU WORLDE DIGITAL PIANO CO.,LTD HANGZHOU WORLDE MUSIC ELECTRONIC CO., LTD WEBSITE: WWW.WORLDE.COM.CN EMAIL:SALES@WORLDE.COM.CN TEL:86 571 88730848 5.1.2 Assign a Pad to Start/Stop MMC One feature that often comes in handy with a controller keyboard is the ability to start and stop a song without having to use the computer keyboard or mouse.

  • Page 12: Assign A Couple Of Pads To Midi Notes

    HANGZHOU WORLDE DIGITAL PIANO CO.,LTD HANGZHOU WORLDE MUSIC ELECTRONIC CO., LTD WEBSITE: WWW.WORLDE.COM.CN EMAIL:SALES@WORLDE.COM.CN TEL:86 571 88730848 5.1.3 Assign a couple of Pads to MIDI notes The natural thing to do when you’re starting a song is to lay down the kick and snare tracks. The TUNAMINI pads can be assigned to any MIDI note number that you like, so for this example we’ll set Pads 1 and 2 to trigger the General MIDI note...

  • Page 13: Assign An Encoder To Control A Midi Cc # Between Two Values

    HANGZHOU WORLDE DIGITAL PIANO CO.,LTD HANGZHOU WORLDE MUSIC ELECTRONIC CO., LTD WEBSITE: WWW.WORLDE.COM.CN EMAIL:SALES@WORLDE.COM.CN TEL:86 571 88730848 These settings will allow you to send two different values of a particular MIDI CC number each time you press the pad. There are a couple of MIDI CC numbers that have been assigned the task of controlling filter brightness (CC# 74) or harmonic content (CC# 71).
  • Page 14 Appendix ). For example, if we want to use Encoder 2 as Pan MSB(Pan MSB MIDI Control No. is 10 in MIDI standard), so you should assign CC No.10 to Encoder2 with WORLDE software editor, then the Encoder2 will control the Pan MSB of your DAW.

  • Page 15: Assign A Slider To Control A Midi Cc # Between Two Values

    HANGZHOU WORLDE DIGITAL PIANO CO.,LTD HANGZHOU WORLDE MUSIC ELECTRONIC CO., LTD WEBSITE: WWW.WORLDE.COM.CN EMAIL:SALES@WORLDE.COM.CN TEL:86 571 88730848 Note: Some devices may not use standard MIDI controller assignments. Refer to the documentation for your device to determine what settings to use for each purpose.
  • Page 16 HANGZHOU WORLDE DIGITAL PIANO CO.,LTD HANGZHOU WORLDE MUSIC ELECTRONIC CO., LTD WEBSITE: WWW.WORLDE.COM.CN EMAIL:SALES@WORLDE.COM.CN TEL:86 571 88730848 5.1.7.2 Select the Message Type (Mode) Click on the Mode menu and select Aftertouch as the message type. It’s at the bottom of the drop-down list: 5.1.7.3 Standard vs.

  • Page 17: Save The Changes To A Preset

    HANGZHOU WORLDE DIGITAL PIANO CO.,LTD HANGZHOU WORLDE MUSIC ELECTRONIC CO., LTD WEBSITE: WWW.WORLDE.COM.CN EMAIL:SALES@WORLDE.COM.CN TEL:86 571 88730848 5.1.8 Save the changes to a Preset So let’s review what we’ve done in section 5.1 so far: The pads have been set up to play kick and snare, toggle the filter settings, and start/stop the song;...

  • Page 18: Changing The Global Midi Channel

    HANGZHOU WORLDE DIGITAL PIANO CO.,LTD HANGZHOU WORLDE MUSIC ELECTRONIC CO., LTD WEBSITE: WWW.WORLDE.COM.CN EMAIL:SALES@WORLDE.COM.CN TEL:86 571 88730848 In the picture above the combination of the Shift button and Pad 2 will select Preset #2 from the TUNAMINI preset memory locations.

  • Page 19: Select The Backlit Rgb Color Of 8 Pads

    HANGZHOU WORLDE DIGITAL PIANO CO.,LTD HANGZHOU WORLDE MUSIC ELECTRONIC CO., LTD WEBSITE: WWW.WORLDE.COM.CN EMAIL:SALES@WORLDE.COM.CN TEL:86 571 88730848 Then when it’s time to switch to channel 1, for example, use the same technique but press a different key: in that case, you would hold the Shift button and press the first C key on the keyboard.

  • Page 20: Advanced Setup Information

    HANGZHOU WORLDE DIGITAL PIANO CO.,LTD HANGZHOU WORLDE MUSIC ELECTRONIC CO., LTD WEBSITE: WWW.WORLDE.COM.CN EMAIL:SALES@WORLDE.COM.CN TEL:86 571 88730848 Reference RGB No. for some colors: COLOR WHITE BLACK GREEN BLUE CYAN MAGENTA YELLOW ORANGE 6. Advanced Setup Information 6.1 Pad calibration Pad thresholds are calibrated at the factory, so you shouldn’t encounter an overly sensitive pad. These settings are not user-editable.

  • Page 21: Please Be Cautious With Low Values As They Could Have Some Negative Side Effects

    Should a problem be found later however, you should be able to upgrade it using the procedure described below. We strongly advise you to perform such an upgrade only if instructed to by WORLDE support engineer. The current firmware revision is automatically displayed at launch time provided the keyboard is plugged in.

  • Page 22: Appendix

    HANGZHOU WORLDE DIGITAL PIANO CO.,LTD HANGZHOU WORLDE MUSIC ELECTRONIC CO., LTD WEBSITE: WWW.WORLDE.COM.CN EMAIL:SALES@WORLDE.COM.CN TEL:86 571 88730848 As instructed, unplug the keyboard, then plug it in again while holding the keyboard shift key, this will enter the firmware upgrade mode Locate the file with the new firmware version that you want to load.
  • Page 23 HANGZHOU WORLDE DIGITAL PIANO CO.,LTD HANGZHOU WORLDE MUSIC ELECTRONIC CO., LTD WEBSITE: WWW.WORLDE.COM.CN EMAIL:SALES@WORLDE.COM.CN TEL:86 571 88730848 Breath LSB 0-127 Controller 0-127 Foot Controller LSB 0-127 Portamento time LSB 0-127 Data Entry LSB 0-127 Channel Volume LSB 0-127 Balance LSB...
  • Page 24 HANGZHOU WORLDE DIGITAL PIANO CO.,LTD HANGZHOU WORLDE MUSIC ELECTRONIC CO., LTD WEBSITE: WWW.WORLDE.COM.CN EMAIL:SALES@WORLDE.COM.CN TEL:86 571 88730848 102-119 Controller 0-127 All Sound Off 0-127 Reset All Controllers 0-127 Local Control 0-127 All Notes Off 0-127 OMNI Off 0-127 OMNI On...

  • Page 25: Specifications

    HANGZHOU WORLDE DIGITAL PIANO CO.,LTD HANGZHOU WORLDE MUSIC ELECTRONIC CO., LTD WEBSITE: WWW.WORLDE.COM.CN EMAIL:SALES@WORLDE.COM.CN TEL:86 571 88730848 8. Specifications Connectors: USB connector Power supply: USB bus power mode Current consumption: 100 mA or less Dimensions (W x D x H): 14.8 x 7.5 x 1.6 inches / 375 x 190 x 40 mm Weight: 35 oz /1000 g Included items: USB cable, Owner’s manual...
