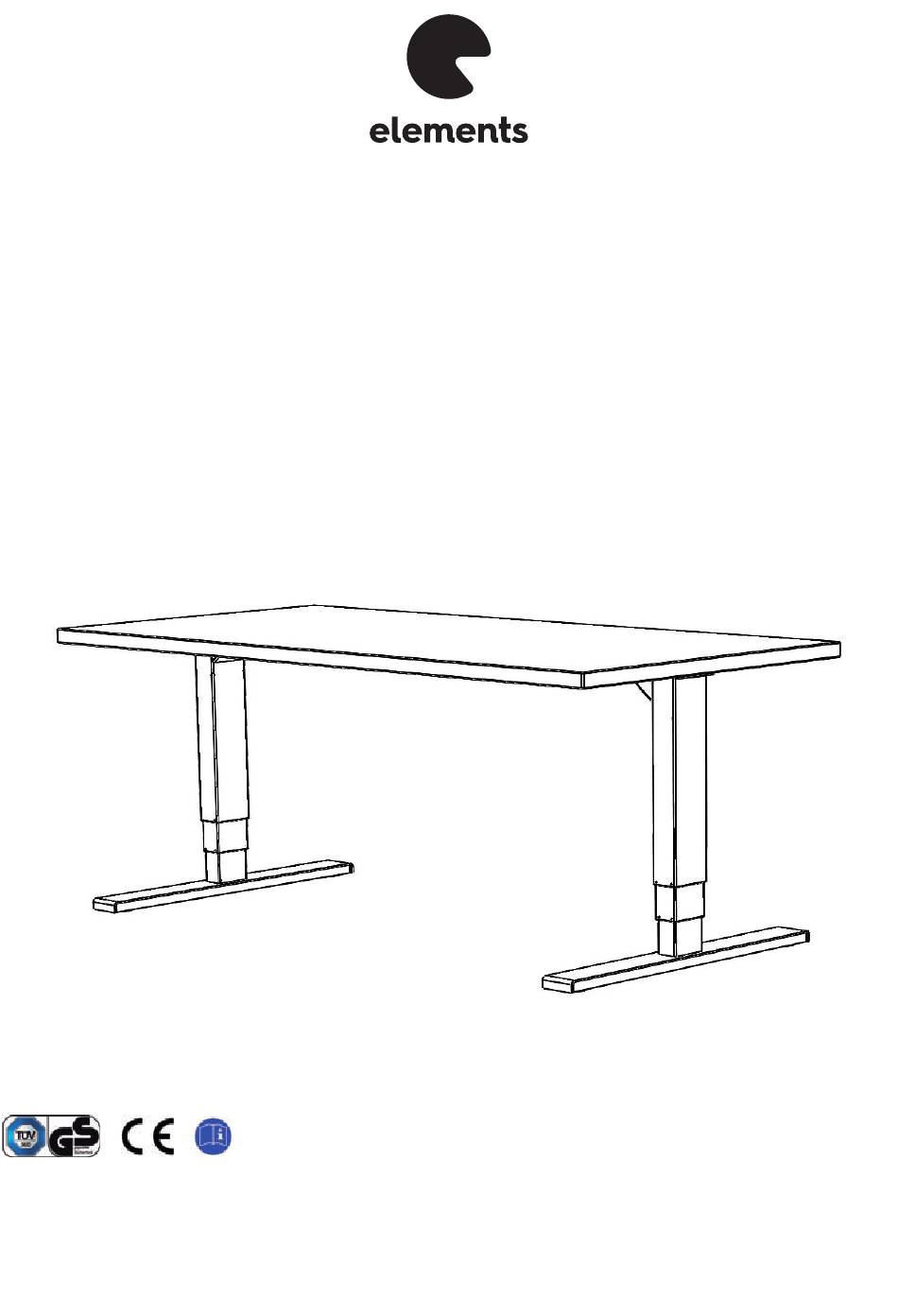

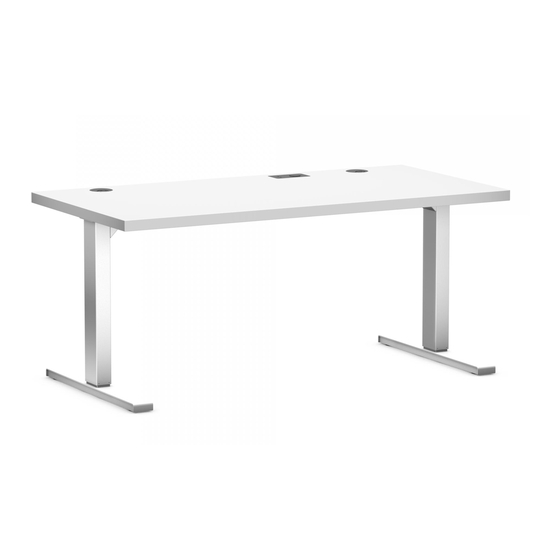

Solid (670)
Assembly Manual / Betriebs- und Montageanleitung
Montage handleding
English / Deutsch / Nederlands
ELE-SOL001-0EN-DE-NL
EN - Read this manual thoroughly and store in a safe place.
DE - Bitte sorgfältig lesen und sicher aufbewahren.
NL - Lees de handleiding aandachtig door en bewaar op een veilige plaats.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Solid 670 and is the answer not in the manual?

Questions and answers

Related Manuals for Elements Solid 670

Summary of Contents for Elements Solid 670

  • Page 1 Solid (670) Assembly Manual / Betriebs- und Montageanleitung Montage handleding English / Deutsch / Nederlands ELE-SOL001-0EN-DE-NL EN - Read this manual thoroughly and store in a safe place. DE - Bitte sorgfältig lesen und sicher aufbewahren. NL - Lees de handleiding aandachtig door en bewaar op een veilige plaats.

  • Page 2: Table Of Contents

    Content 1. General Local value of the assembly/operating manual Intended use Improper use Danger Checking the content box 2. Safety information Symbols/warnings Maximum weight allowed on table Maximum weight allowed per column Organizational measures Informal safety measures Note for those assembling the table Transport and assembly Use of the table Specific dangers...
  • Page 3 7. Recycling Taking the table out of active duty Taking the table apart Recycling 8. Troubleshooting 9. EU-decleration of conformity 10. Customer service 11. Manufacturer 12. Certification English - 3.

  • Page 4: General

    1. General 1.1 Importance of the assembly/operating manual The guideline for safe use and trouble-free operation of this table is knowledge of basic safety information and regulations. This assembly/operating manual contains the most important infor- mation needed for assembling and operating the table safely. This assembly/operating manual, in particular the safety information contained herein, must be observed by any person building the table and working on the finished surface.

  • Page 5: Checking The Content Box

    1.5 Checking the content box Assembly requires two people! Tools Items Dispose of the packaging material in an environmentally friendly manner. English - 5.

  • Page 6: Safety Information

    2. Safety Information 2.1 Symbols/warnings The assembly/operating manual uses the following terms and signs to indicate danger: This symbol indicates an immediate threatening situation for any person’s life or health. Failure to adhere to such information may have serious consequences for health, or could even result in lifethreatening injury or death.

  • Page 7: Maximum Weight Allowed Per Column

    2.3 Maximum weight allowed per column Do not exceed the maximum permitted load of 50 kg on a column. Overloading a table may cause breakage and close by individuals may suffer serious injuries as a consequence. 50 kg 2.4 Organizational measures The table can best be assembled by two people.

  • Page 8: Specific Dangers

    2.9 Specific danger – When adjusting the height of the table there is danger of injury. Make sure that there is no-one else in the immediate surroundings of the table. – When assembling the table, make sure there is ample space to avoid collision (i.e. inclination of roof, fixed objects, filing cabinets, waste-paper bins etc.) in all imaginable directions.

  • Page 9: Assembly

    3. Assembly 3.1 Checking the items supplied – Carefully open the cardboard packaging. – In doing so, do not use any long knife blades. They may damage the components inside. – Check the parts supplied in section 1.5. – Do not attempt to assemble the table if there is any damage or if there are any incorrect components.

  • Page 10: Assembly Of The Table

    3.4.1 Mounting the feet onto the column 8x 14Nm (maximum) English - 10.

  • Page 11: Connect The Motor Cables

    3.4.2 Connecting the motor cables Make sure the plug is firmly inserted into the plug socket. Do not pull the connectors further out of the tabletop. English - 11.

  • Page 12: Mounting The Column On The Tabletop

    3.4.3 Mounting the column onto tabletop 16x max. 13Nm English - 12.

  • Page 13: Connecting The Electrical Components

    3.4.4 Connecting the electrical components Keep in mind that the table which you are assembling is height adjustable. The cables of the electrical components must be able to freely follow the movement of the table. Initial start on next page. In order to maintain the elasticity of the spiral cord over long time, it is recommended to adjust the table into its lowest position when the workstation will not be in use for any length of time...
  • Page 14 3.4.5 Table test Please make sure that the table can move freely and correct at all times In case you need to disconnect cables from the electrical components always be sure to disconnect power first. In case the height adjustment is not operating normally stop using the table immedi- ately and disconnect the power.

  • Page 15: Clearance Around The Tabletop

    3.4.6 Clearance around the tabletop 25mm 25mm Allow a minimum clearance of 25mm from the edge of a tabletop to a wall or moving parts. When changing the tabletop position (especially without using pinch protection), there is a risk of pinching. You must therefore ensure that no people or objects are located in the hazardous area or can reach into it.

  • Page 16: Correct Position Of Seat

    4. Correct position of seat Correct sitting posture Sitting incorrectly can lead to injuries at joints, bowstrings and muscles. In order to prevent this it is necessary to adjust your office chair and table. Apart from the following advise you should always prevent an uncomfortable sitting posture.

  • Page 17: Technical Specifications

    5. Technical specification Assembly Manual version ELE-SOL001-0EN-DE-NL Release date December 2018 Country of origin of the leg unit and foot Malaysia Country of origin of the tabletop Germany System 2-step Material Steel, aluminium, plastic, wood based materials Stroke (max.) 660 mm Load (max.) 80 kg Weight...
  • Page 18 5. Technical Specification (*General Tolerance = ± 1 cm) 50 mm 60 mm 100 mm Minimum Height 640 mm Maximum Height 1300 mm Maximum Stroke 660 mm Tabletop Width (B) 1380 / 1600 / 1800 / 2000 mm Top Depth (T) 670 / 800 / 800 / 800 mm Foot Depth (K) 550 / 750 / 750 / 750 mm...

  • Page 19: Operation And Indicators

    6. Operation and Indicators Observe the provisions of Section 2, Safety Information, on page 5—7, in particular: Do not leave children unsupervised with the table. Children may be unaware of the dangers presented by the table. They would be in serious danger of injuring themselves, possibly even with fatal consequences.

  • Page 20: Recycling

    7. Recycling 7.1 Taking the table out of active duty – Pull the power plug out of the electricity socket. 7.2 Taking the table apart – In case of de-assembling please follow the manual backwards or contact customer service. 7.3 Recycling –...

  • Page 21: Eu-Decleration Of Conformity

    The article bulk production will be manufactured accordingly. complies with the stan- dards as mentioned Article description: below: Elements Solid (670) Article number: DIN EN 527-1:2011 EL-CTF-ATX-XXXXXX-XXX-EXX1-EU-XXXXX DIN EN 527-2:2017 Model EK5/AK3 13-01:2014...

  • Page 22: Certification

    12. Certification TÜV + GS Elements Solid 670: Height: 640mm – 1300mm Stroke: 660mm Tabletop Size: 1600x800, 1800x800, 2000x800 Tabletop Colour: Silver TÜV Type tested, Production monitored Elements Solid 670: Height: 640mm – 1300mm Stroke: 660mm Tabletop Size: 1380x670, 1600x800, 1800x800, 2000x800...
