Light bulbs are located inside the drawer.
Recommendation:Replace clear 4W/6W LED filament bulb equivalent 40W/60W Incandescent.
WARNING:
RISK OF FIRE
LED LIGHT BULB
120V E26/MAX 25
WATT
(Per Light Bulb)

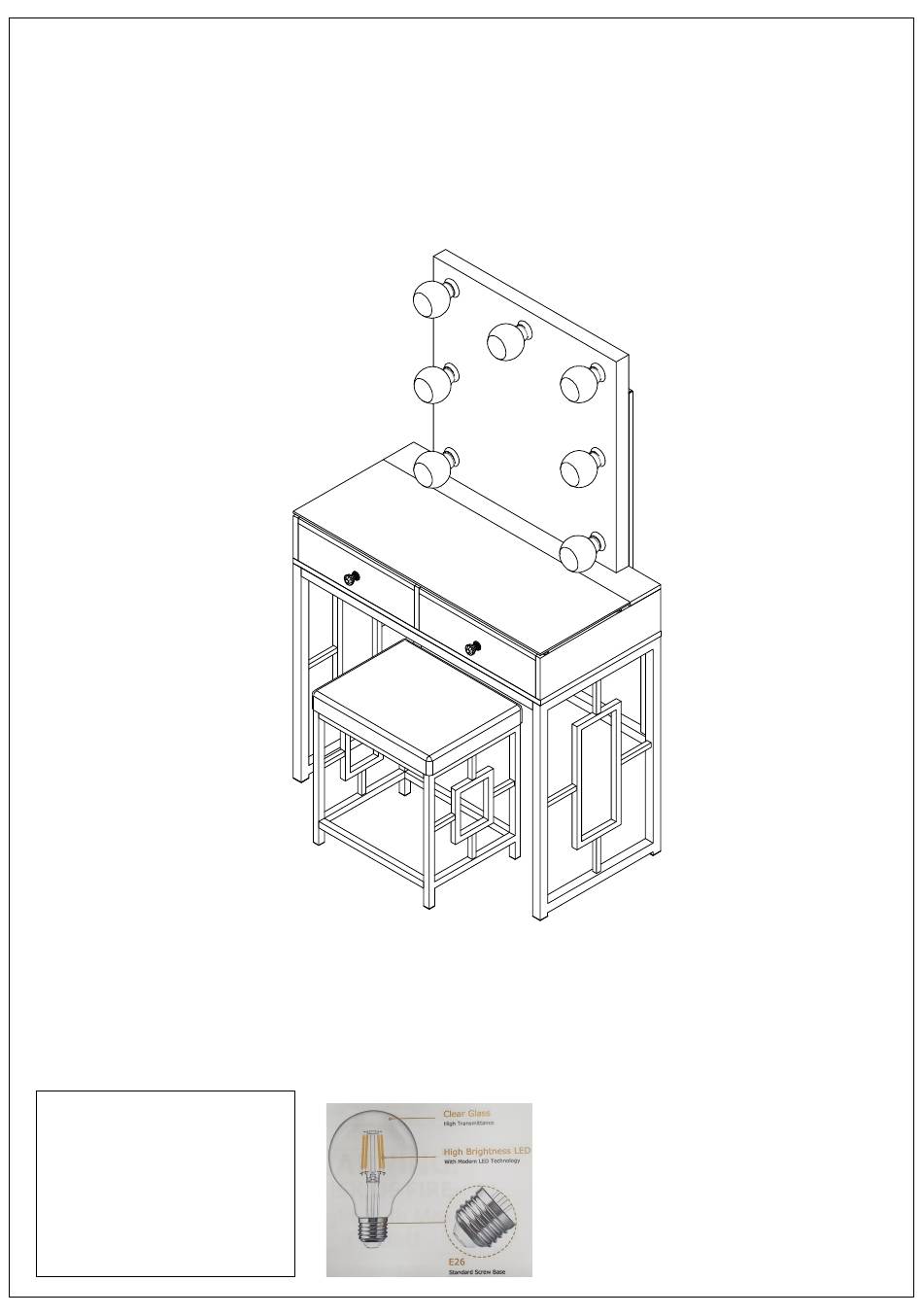

Margo Vanity Table
Item #: CVMG800VTPL
ASSEMBLY INSTRUCTIONS
1-11
Advertisement
Related Manuals for Elements CVMG800VTPL
Summary of Contents for Elements CVMG800VTPL
- Page 1 Margo Vanity Table Item #: CVMG800VTPL ASSEMBLY INSTRUCTIONS Light bulbs are located inside the drawer. Recommendation:Replace clear 4W/6W LED filament bulb equivalent 40W/60W Incandescent. WARNING: RISK OF FIRE LED LIGHT BULB 120V E26/MAX 25 WATT (Per Light Bulb) 1-11...
- Page 2 ASSEMBLY INSTRUCTIONS Item #: CVMG800VTPL Please identify and locate all assembly parts (see parts list) before discarding any packing materials. Some parts may have become loose during transit. PARTS LIST SKETCH DESCRIPTION VANITY TOP LEFT FRAME RIGHT FRAME CROSSBAR BACK FRAME...
- Page 3 SKETCH DESCRIPTION GLASS MIRROR POWER OUTLET SUPPORT CROSSBAR 2PCS DRAWER PULL 2PCS (Install inside the drawer.) 2PCS (Install inside the drawer.) MADE IN TAIWAN 3-11...
- Page 4 SKETCH DESCRIPTION LIGHT BULB 8PCS STOOL CUSHION CHAIR FRAME 2PCS CHAIR CROSSBAR 4PCS SHORT BOLT 12PCS 1/4" x 12mm MEDIUM BOLT 8PCS 1/4" x 30mm MADE IN TAIWAN 4-11...
- Page 5 SKETCH DESCRIPTION LONG BOLT 18PCS 1/4" x 35mm HANDLE BOLT 2PCS 5/32" x 22mm (Install inside the drawer.) SCREW 2PCS 3.5 x 12mm GLASS TIP 6PCS RETANGULAR CAP 4PCS 13 x 26mm LARGE SQUARE CAP 4PCS 25 x 25mm MADE IN TAIWAN 5-11...
- Page 6 SKETCH DESCRIPTION SMALL SQUARE CAP 4PCS 20 x 20mm ALLEN KEY 4PCS NOTE: Do not tighten until each step is completed or instructed. Step 1: 1. Insert Large Square Cap (23) onto the Left Frame (2) and Right Frame (3). 2.
- Page 7 Step 2: Turn the Vanity Top (1) upside down on a protective surface. Attach the base on the Vanity Top (1) using Medium Bolt (17) and Long Bolt (18) with Allen Key (25). Step 3: Install Drawer Pull (10) and Cap (11) to the Drawer using Handle Bolt (19). 7-11...
- Page 8 Step 4: Install Glass Tip (21) on the Vanity Top (1). And then place the Glass (6) on the Glass Tip (21). Step 5: Insert Retangular Cap (22) on the Support Crossbar (9). Place Mirror (7) on the Step4. Attach Supprt Crossbar (9) to the Vanity Top (1) and Mirror (7) using Long Bolt (18) with Allen Key (25).
- Page 9 Step 6: Install Power Outlet (8) to the Left Frame (2) using Screw (23) with Allen Key (25). Step 7: Install Light Bulbs (12) to the Mirror (7) as shown. Light Bulbs (12) are located insdie the drawer. 9-11...
- Page 10 Complete. Congratulations on your assemble success. Step 8: Attach Chair Crossbar (15) to Chair Frame (14) usnig Short Bolt (16) with Allen Key (25). 10-11...
- Page 11 Step 9: Insert Small Square Cap (24) onto the Chair Frame (14). Attach Step 8 to the Stool Cushion (13) using Medium Bolt (17) with Allen Key (25). Complete. Congratulations on your assemble success. 11-11...
