Elements U-8330-9430-000 Assembly Instruction

CAUTION: Please read instruction thoroughly before unpacking assembly parts. Sharp, exposed staple tips can cause injury, therefore,
for your protection, please remove any exposed staples used in packing.
1. We recommend that you should assemble this product with the assistance of another person; this will make assembly easier, and will
help to eliminate damage the product or injury to persons during assembly.
2. Be sure to check all packing materials carefully for small parts that may have come loose inside the carton during shipment.
3. Please do not over tighten screws or bolts.
4. Please put all parts on a non-abrasive floor before assembly, and follow the assembly steps to assembly your newly purchased product
correctly and efficiently.
NO.
PART DESC
CHAIR
A
B
LEGS
! Only tighten all bolts when all bolts aligned with bolt inserts
Step 1

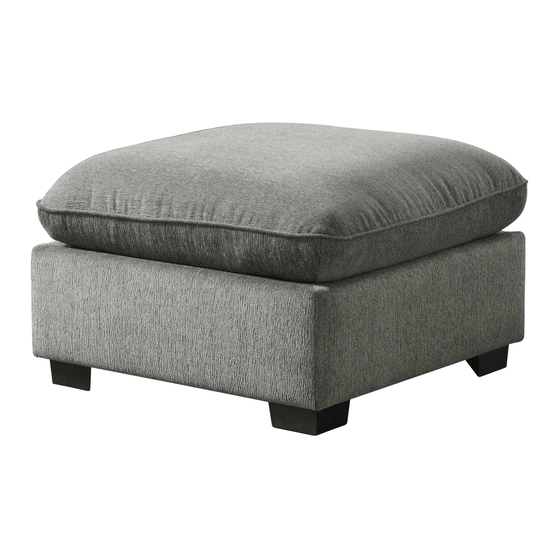

ASSEMBLY INSTRUCTION FOR
MODULAR OTTOMAN
PART LIST
CODE
PU-8540-LEG
4
3
5
2
1
B
3
2
1
MADE IN VIETNAM
U-8330-9430-000
Q'TY NO.
1 1
4
2
3
4
5
4
3
2
5
1
B
4
5
5
LEG LOCATION
B
A
HARDWARE LIST
HARDWARE DESC
BOLT Ø5/16"*70
LOCK WASHER Ø9*Ø14
FLAT WASHER Ø5/16"*Ø19
ALLEN KEY M5*65
ANTI SLIDING PAD Ø50*2MM
4
3
2
1
B
COMPLETE
Q'TY
CODE
4
4
PU-8540-HW
4
1
4
PAGE 1 OF 2
