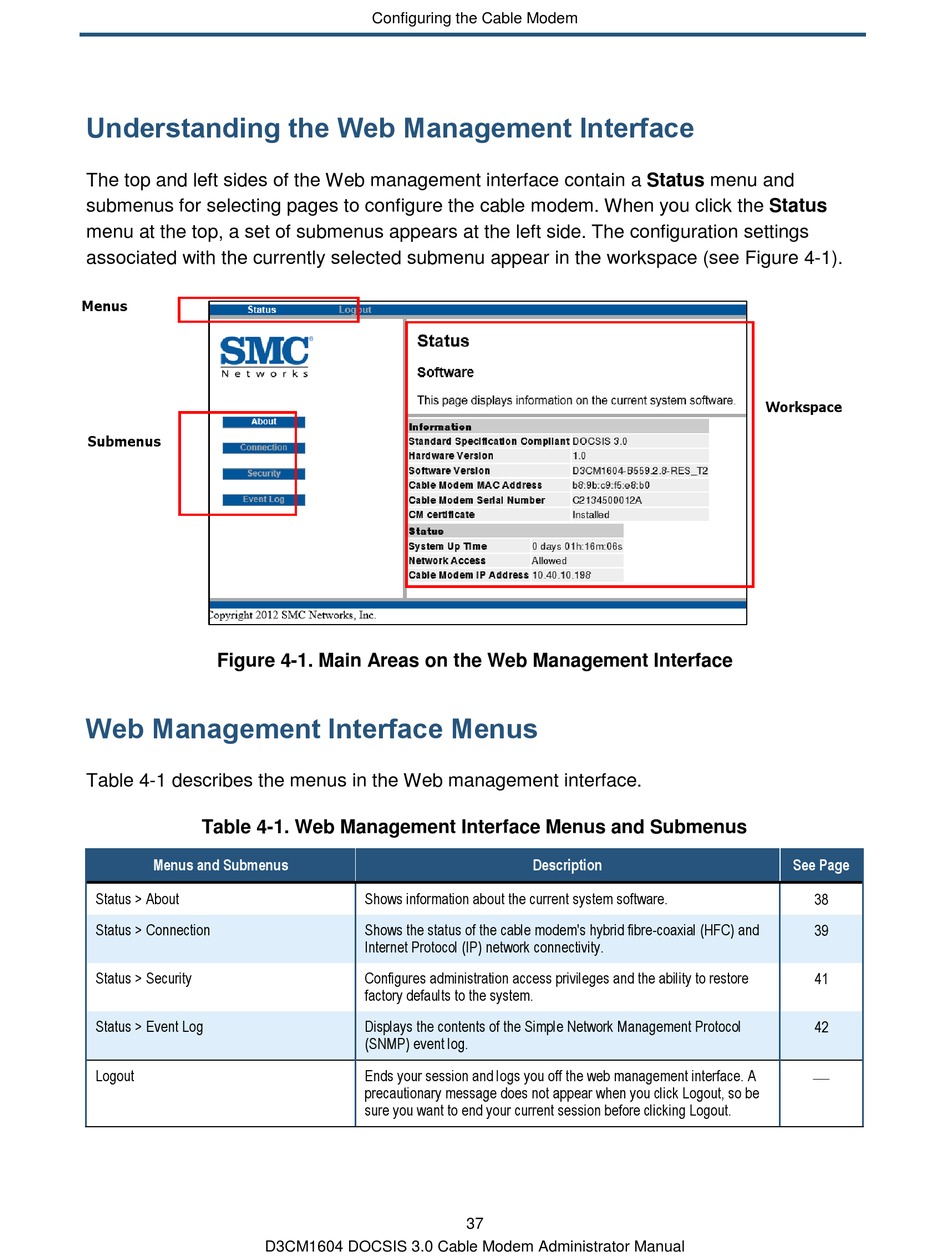

Understanding the Web Management Interface

The top and left sides of the Web management interface contain a Status menu and
submenus for selecting pages to configure the cable modem. When you click the Status
menu at the top, a set of submenus appears at the left side. The configuration settings
associated with the currently selected submenu appear in the workspace (see Figure 4-1).
Menus
Submenus
Figure 4-1. Main Areas on the Web Management Interface

Web Management Interface Menus

Table 4-1 describes the menus in the Web management interface.
Table 4-1. Web Management Interface Menus and Submenus
Menus and Submenus
Status > About
Status > Connection
Status > Security
Status > Event Log
Logout
Configuring the Cable Modem
Shows information about the current system software.
Shows the status of the cable modem's hybrid fibre-coaxial (HFC) and
Internet Protocol (IP) network connectivity.
Configures administration access privileges and the ability to restore
factory defaults to the system.
Displays the contents of the Simple Network Management Protocol
(SNMP) event log.
Ends your session and logs you off the web management interface. A
precautionary message does not appear when you click Logout, so be
sure you want to end your current session before clicking Logout.
D3CM1604 DOCSIS 3.0 Cable Modem Administrator Manual
Description
37
Workspace
See Page
38
39
41
42

