Configuring Microsoft Windows 7 - SMC Networks D3CM1604 Administrator's Manual

Configuring Microsoft Windows 7

Use the following procedure to configure a computer running Microsoft Windows 7.
1. In the Start menu search box, type ncpa.cpl and press Enter.
The Network Connections List appears.
2. Right-click the Local Area Connection icon and click Properties.
3. In the Networking tab, click either Internet Protocol Version 4 (TCP/IPv4) or Internet
Protocol Version 6 (TCP/IPv6), and then click Properties.
Preconfiguration Guidelines

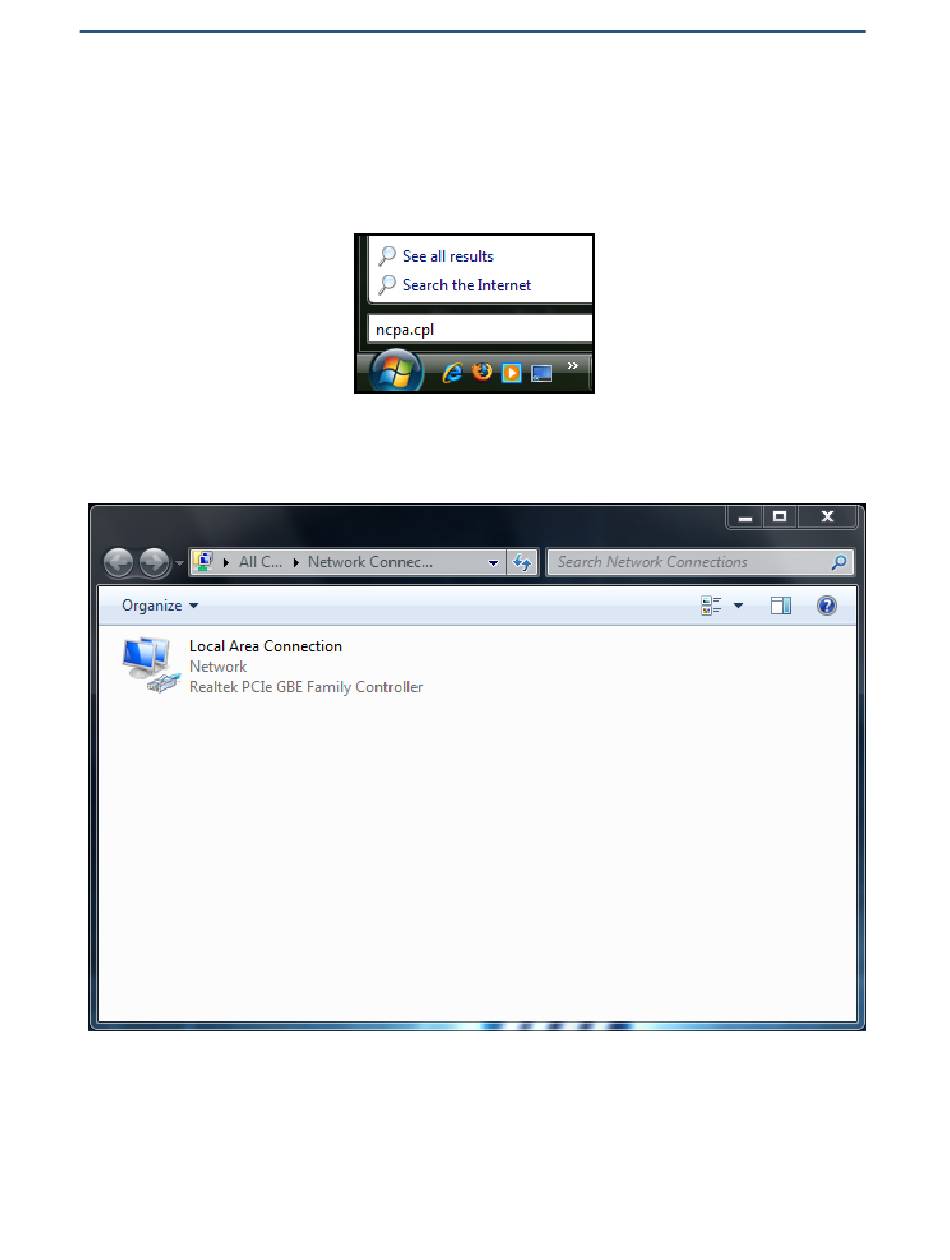

Figure 3-1. Typing ncpa.cpl in the Start Menu Box
Figure 3-2. Example of Network Connections List
D3CM1604 DOCSIS 3.0 Cable Modem Administrator Manual
26
