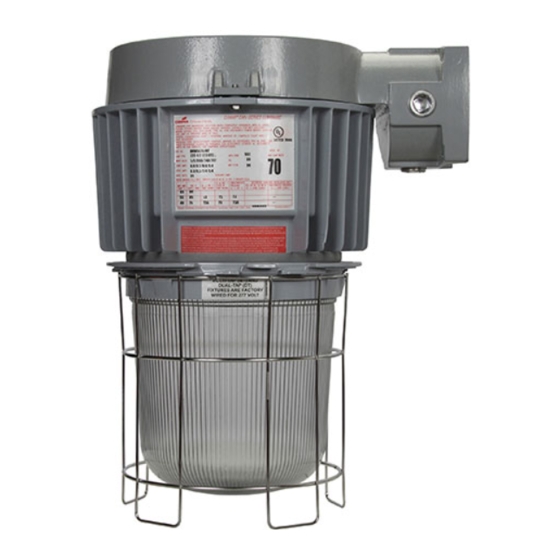

Champ
Fluorescent Luminaires
®
DMVF Series - 52, 64, & 84 Watt
DMVFB Emergency Lighting Series - 52, 64, & 84 Watt
Installation & Maintenance Information
a)
Do not use emergency luminaire for other than its intended use.
b)
The use of accessory equipment not recommended by the manufacturer may cause an unsafe condition.
c)
Electrical power must be turned OFF before and during installation and maintenance.
d)
Free installation area of hazardous atmospheres before opening to reduce the risk of accidental explosion due
to inadvertent shorting of the emergency ballast.
e)
Emergency luminaire should be mounted in locations and at heights where it will not readily be subjected to
tampering by unauthorized personnel.
f)
Do not mount near gas or electric heaters.
g)
Emergency luminaire must be supplied by a wiring system with an equipment grounding conductor.
h)
The rechargeable battery power supply is internal to the emergency ballast and cannot be serviced.
i)
If the emergency ballast requires replacement, it must be recycled. Refer to the recycling information printed
on
the emergency ballast.
IF 1290 • 01/15
SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE
IMPORTANT SAFEGUARDS
READ AND FOLLOW ALL SAFETY INSTRUCTIONS
SAVE THESE INSTRUCTIONS
Copyright © 2015, Eaton's Crouse-Hinds Business
IF 1290
Page 1
Advertisement
Table of Contents
Related Manuals for Eaton Crouse-Hinds Champ DMVF Series
Summary of Contents for Eaton Crouse-Hinds Champ DMVF Series
- Page 1 The rechargeable battery power supply is internal to the emergency ballast and cannot be serviced. If the emergency ballast requires replacement, it must be recycled. Refer to the recycling information printed the emergency ballast. SAVE THESE INSTRUCTIONS IF 1290 • 01/15 Copyright © 2015, Eaton’s Crouse-Hinds Business Page 1...
- Page 2 On DMVFB Series Emergency Luminaires, connect the emergency HINGE ballast connector (white/red wires). See Figure 2. This is disconnected to avoid discharging the battery during shipment. SET- GROUND SCREW WIRES FIGURE 1 FIGURE 2 IF 1290 • 01/15 Copyright © 2015, Eaton’s Crouse-Hinds Business Page 2...
- Page 3 For DMVFB emergency luminaires, open the ballast housing and re-connect the emergency ballast connector. Close the ballast housing and tighten the captive closing screw to 30 in.-lbs (3.4 N-m). 10. Restore power. FIGURE 6 IF 1290 • 01/15 Copyright © 2015, Eaton’s Crouse-Hinds Businessc. Page 3...
- Page 4 Mechanically check that all parts are properly assembled. FIELD ASSEMBLED LUMINAIRES Champ DMVF and DMVFB Series Luminaires. Complete luminaire consists of cover, ballast housing and globe with or without guard or reflector. IF 1290 • 01/15 Copyright © 2015, Eaton’s Crouse-Hinds Business Page 4...
- Page 5 Eaton’s Crouse-Hinds Business IF 1290 1201 Wolf Street, Syracuse, New York 13208 • U.S.A.
