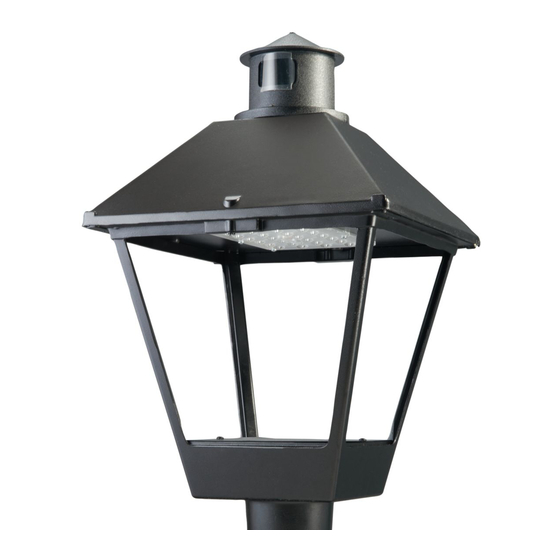

Installation Instructions – LXT/LXF Pole-Top Luminaire
Instructions d'installation – Luminaire à montage sur poteau LXT et
LXF
Instrucciones de instalación de las luminarias LXT y LXF de montaje
para punta de poste
IMPORTANT: Read carefully before installing fixture.
Retain for future reference.
General: Upon receipt of fixture thoroughly inspect for
any freight damage, which should be brought to the
attention of the delivering carrier. Compare the catalog
description listed on the packing slip with the fixture label
on the housing to assure you have received the correct
merchandise.
Cupola (Photocontrol
Housing)
Safety: The fixture must be wired in accordance with
the National Electrical Codes, National Electrical Safety
Code and applicable Local Codes and Ordinances. Proper
grounding is required to ensure personal safety. Carefully
observe grounding procedure under installation section. All
works should be done by qualified electrician.
Make certain power is OFF before starting installation
or attempting any maintenance.
Photocontrol Receptacle
Cupola Mounting
Screws (3)
Cover
Retaining
Screw or
Latches
Lens
Terminal Block
Panels (4)
Set Screws (3)
Brand Logo
reversed out of
black
INS # INS # INS #
WARNING
Photocontrol
Receptacle Mounting
Ring Screws (2)
Top View with Cupola Removed
Electrical Component Compartment
North Indicator
Photocontrol
Receptacle
Mounting Ring
Ground Screw
and Wire
Strain Relief
Service Leads
Alternate
Terminal
Block
