Eaton CROUSE-HINDS VLL Series Instruction Manual

Eaton CROUSE-HINDS VLL Series Instruction Manual

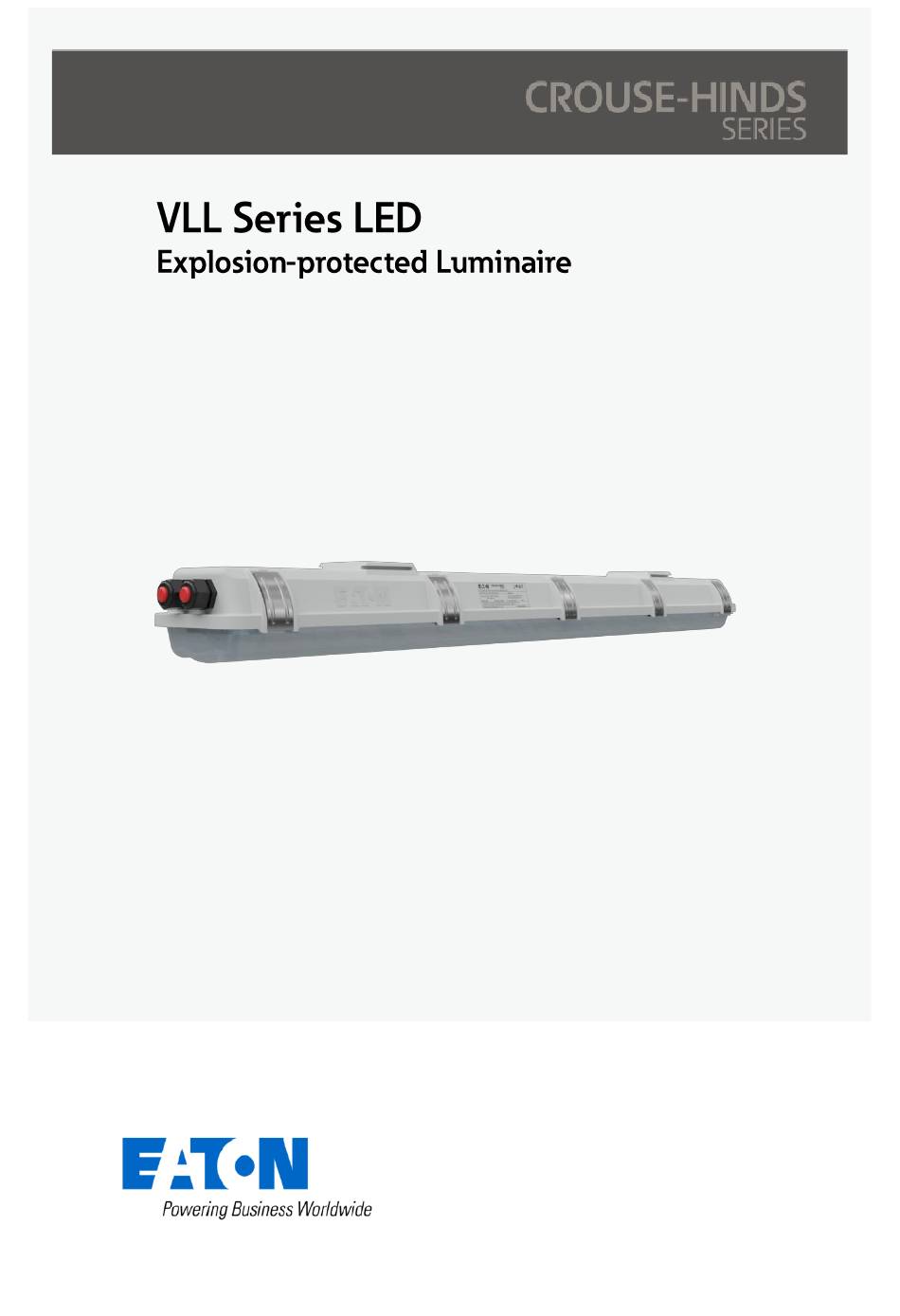

Explosion-protected luminaire

Advertisement

Quick Links

INSTRUCTION
MANUAL
IM0535
Rev.4

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CROUSE-HINDS VLL Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Eaton CROUSE-HINDS VLL Series

  • Page 1 INSTRUCTION MANUAL IM0535 Rev.4...
  • Page 2 ❖Multiple, short-term switching must be observed! Material of enclosure: Glass Fiber Reinforced Plastic (GRP) ❖Only genuine Eaton Crouse-Hinds spare parts may be used for replacement! Finish: Surface texture treatment ❖Repairs that affect the explosion protection, may only be carried out by...
  • Page 3 7. Type configuration and Max. Ambient and Temperature Ratings Lm * Weight Weight T ℃ Color System T Class Voltage Rated current Std. Cat No. (5700K,EM version is fully (Kg) (Kg) (V) (mA @230Vac) Temp. power (Gas) (Dust) with -P charged) without -P VLL-3L-*-*-*...
  • Page 4 When the apparatus is disposed of, the respective before opening. Repairs that affect the explosion national regulations on waste disposal will have to be protection, may only be carried out by Eaton Crouse- observed. Wiring diagram 1:2 feet or 4 feet normal version Wiring diagram 2:2 feet or 4 feet EM version...
  • Page 5 Illustration 4: IM0535 Ver.4 2023/10 Cooper Electric (Changzhou) Co., Ltd. Page 5/6...
  • Page 6 Illustration 5 (for pole mounting): Eaton's Crouse-Hinds Division Cooper Electric (Changzhou) Co., Ltd. No.189 Liuyanghe Road, Xinbei District, Changzhou, Jiangsu, China Eaton is a registered trademark. © 2020 Eaton All Rights Reserved All trademarks are property of their Printed in China respective owners.
  • Page 7 EU-Konformitätserklärung EU-Declaration of conformity UE-Déclaration SEV22ATEX0584X Cooper Electric (Changzhou) Co., Ltd. Wir / We / Nous No. 189, Liuyanghe Road, Xinbei District, Changzhou, Jiangsu, 213031 China erklären in alleiniger Verantwortung, dass das Produkt hereby declare in our sole responsibility, that the product Explosion-Protected Lighting Fixture déclarons de notre seule responsabilité, que le produit II 2 G Ex db eb ib mb IIC T6…T5 Gb...
