CONFIGURING THE BRIC-LINK
V.
LOGIN

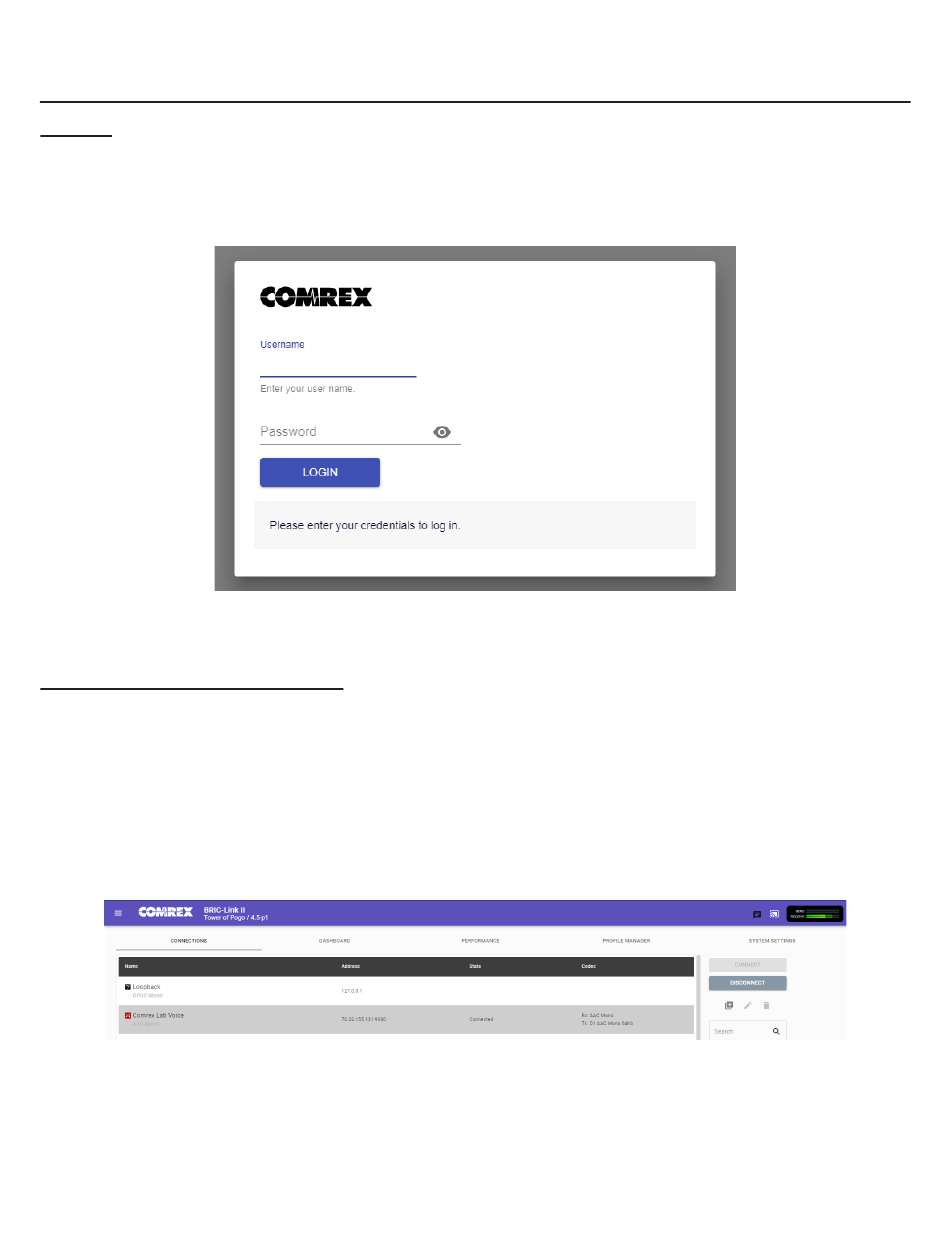

Upon connection to the BRIC-Link, a login screen will appear, Figure 11. Any username can be chosen with the
default password: comrex. This will access the Main User Interface display.
Figure 11 web interFace Login
INTERFACE PAGE SECTIONS
There are two parts to the primary interface screen (Figure 12):
• Main Audio Meter (1): This meter displays audio levels for active connections to the BRIC-Link.
• Configuration Tabs (2): The primary focus of the BRIC-Link configuration interface. These tabs consist of
Connections, Dashboard, Performance, Profile Manager, and System Settings to control and obtain status
of BRIC-Link. They are described in detail in the following sections.
2
Figure 12 connections tab
