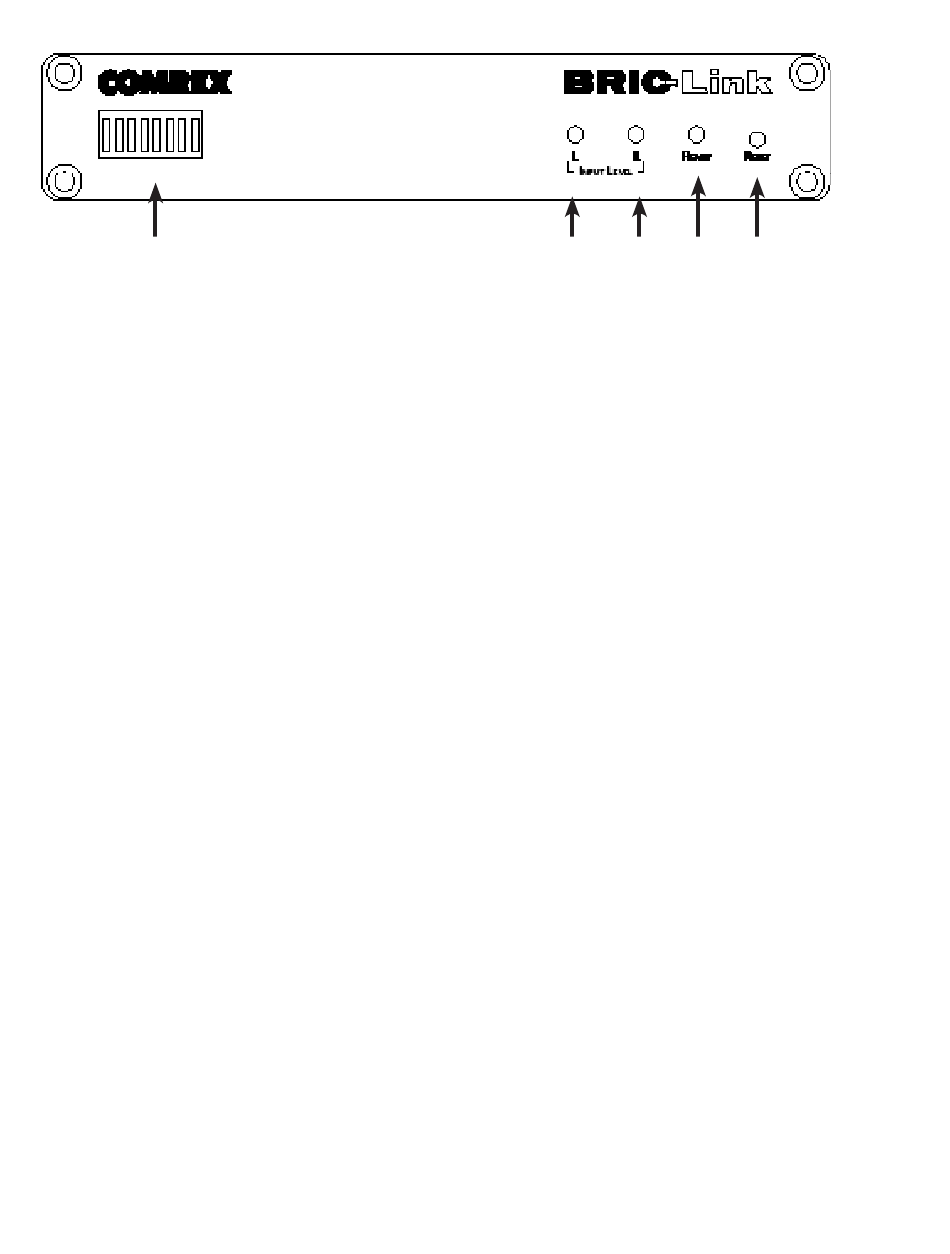

PaneL DIagRam anD DesCRIPtIons
FIguRe 2
9 DIP Switches - 8 individual DIP switches allow selection of certain operational parameters (see
DIP Switch Settings on Page 16).
10 Left/Mono I/O Level Indicator - Tri-color LED shows left channel input or output level.
Right I/O Level Indicator - Tri-color LED shows right channel input or output level.
11
Ready/Status LED - Bi-color LED shows Ethernet carrier loss (Red) or valid connection state
12
(Green).
13 Reset Button - Issues a hardware reset to the system when pressed momentarily.
PInouts - BaLanCeD auDIo
Stereo professional level connections are available on the rear panel via ¼" TRS-style connectors for left and right
input and output. Adapters are provided to convert these connections to XLR. For analog connections, the jacks are
wired as follows:
1 Sleeve - Ground
2 Tip - Balanced Audio +
3 Ring - Balanced Audio -
These connectors have a fixed level where a full scale signal represents +20 dBu (22 Vpp). A nominal input level of 0
dBu (2.2 Vpp) is recommended.
PInouts - aes3
A nominal input level of 0 dBu (2.2 Vpp) is recommended. When configured via the DIP switches, the left input and
output become AES3 digital ports. The jacks connectors are wired as follows:
1 Ground
2 AES3 +
3 AES3 -
