Weltem ICEN WPC-9000 Owner's Manual

Owner's Manual
Please read and save these instructions. Read carefully before attempting to assemble, install, operate or
maintain the product described.
Protect yourself and others by observing all safety information. Failure to comply with instructions could
result in personal injury and / or property damage! Retain instructions for future reference.
Portable Air Conditioners
Description

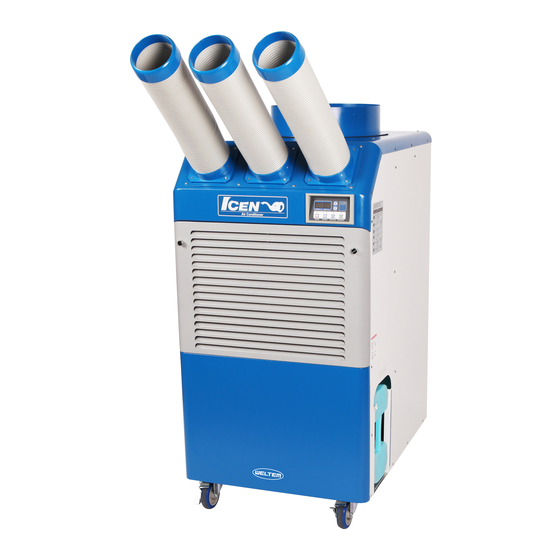

Weltem Portable Air Conditioners feature spot cooling for large areas
where cooling of the entire area is not practical. A dedicated
spot cooling thermostat controls the unit in this application.
These air conditioners can also be used in smaller areas
for room cooling.
A control panel provides ease of use and contains a self-diagnostic
function and display, showing operating modes, room and
set temperatures, and faults.
If an abnormal operation occurs, a visual display of the fault is shown.
Caster wheels are included for easy portability.
Suitable applications include: a factory or work place, industrial kitchen,
computer room, emergency cooling, outdoor event, etc.
Unpacking
After unpacking the unit, carefully inspect unit for any damage that may
have occurred during transit. Check for any loose, missing, or damaged parts.
Specifications
Model Power Supply
No. Ph-V-Hz
WPC-9000 Single Phase,
220 / 240V, 50Hz
Model
No.
WPC-9000
Model Weight (Net / Gross)
No. Lbs(kg)
253 / 271 lbs.
WPC-9000
(115 / 123 kg)
Cooling Capacity Power Consumption
Btu/h Watts
32,000
Power Cord Gauge
AWG
10
Condensate tank No. of Cool Air Outlets
Gallons(Liters) Pcs
3.17 (12)
1
Rated Current
Amps
4300 20 / 19
Power Cord Length
ft
10
Ambient temperature range
3 64~113 (18~45)
Model WPC-9000
WPC-9000
Figure 1
EER
Btu/Wh
10.6
Dimensions
W x H x D - in. (mm)
26 x 54.3 x 34.8
(660 x 1380 x 885)
F( C)
