Owner's Manual
Please read and save these instructions. Read carefully before attempting to assemble, install, oper-
ate or maintain the product described.
Protect yourself and others by observing all safety information. Failure to comply with instructions
could result in personal injury and / or property damage! Retain instructions for future reference.

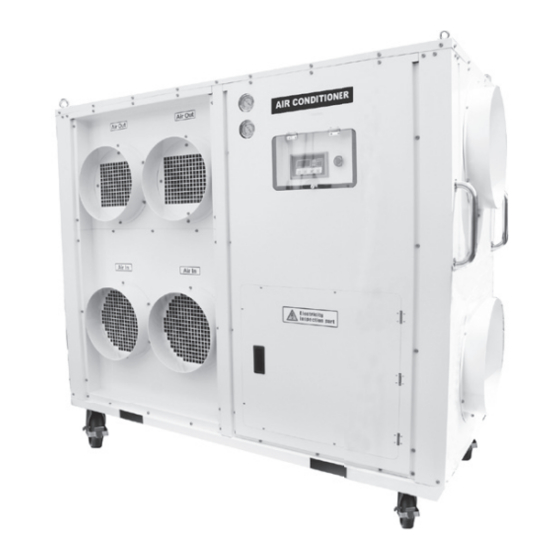

High Capacity Air Conditioner
(For Indoor & Outdoor)
Descripti on
AmeriCool Portable Air Conditi oners are specialized for
"SPOT COOLING" where central cooling is impracti cal.
AmeriCool air conditi oners can also be used in enclosed areas
just like conventi onal air conditi oners. Simple digital controller
and self-diagnosti c functi ons allow users to easily operate
the unit. Built-in Caster wheels enable users to move the
unit without any hassle. The unit can be installed in 5 minutes
and does not require any extra materials or certi fi ed technician
for installati on.
AmeriCool Portable Air Conditi oner, anywhere, everywhere.
Plug-and-Go!
Unpacking
Aft er unpacking the unit, carefully inspect unit for any damage that may have occurred during transit.
Check for any loose, missing, or damaged parts.
Specifi cati ons
Model No.
Power Supply Ph-V-Hz
WPC-36003
3Phases - 460V - 60Hz
Weight (Net / Gross)
Model No.
WPC-36003
Model No.
WPC-36003
Lbs(kg)
1168/1245lbs.
(530/565kg)
Indoor Air Flow CFM
4000
by
Cooling Capacity Btu/h
144,400
Ambient temperature
range °F( °C)
64~113(18~45)
WPC-36003
Figure 1
Power Con-
Rated Current
sumpti on Watt s
21.5kW
Dimensions
W x D x H - in. (mm)
34.3 x 75 x 71
(870 x 1904 x 1801 )
Refrigerant Type / oz(g)
R-410A / 278.7(7900)
WPC-36003
Amps
27A

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AMERICOOL WPC-36003 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Weltem AMERICOOL WPC-36003

Summary of Contents for Weltem AMERICOOL WPC-36003

  • Page 1 Owner’s Manual WPC-36003 Please read and save these instructions. Read carefully before attempting to assemble, install, oper- ate or maintain the product described. Protect yourself and others by observing all safety information. Failure to comply with instructions could result in personal injury and / or property damage! Retain instructions for future reference. High Capacity Air Conditioner (For Indoor &...

  • Page 2: General Safety Information

    WPC-36003 Owner’s Manual Specifications (Continued) Compressor overload protector, Anti-freezing thermister, Automatic restart (Power interruption), Safety Devices Compressor time delay program, High pressure switch Temperature control, Self-diagnostic function, Features Optional drain pump kit, Washable filters, °C display, Off-timer The unit is integrated with “PUMP-DOWN” function.
  • Page 3 WPC-36003 Owner’s Manual DO NOT use the unit in wet environments, such as a laundry room, to avoid the risk of electrical shock. 10. DO NOT place any foreign objects on the unit. 11. DO NOT operate the unit with wet or damp hands. 12.

  • Page 4: Component Parts

    WPC-36003 Owner’s Manual Assembly (WPC-36003) COMPONENT PARTS Controls Emergency Stop Figure 3 Controls Electrical Panel Cold Air Inlet I BOLT Cold Air Inlet Filter Figure 2 Front and Right Side View Handle Hot Air Exhaust Condensate outlet Figure 4 Caster Casters can be locked by locking the break down Figure 5...

  • Page 5: Duct Connections

    WPC-36003 Owner’s Manual DUCT CONNECTIONS Cool Air Out Duct(EVA) The Cool air duct connections are labeled “AIR OUT”. The connection size is 350Ø in diameter. Connect the flexible air ducting as follows: 1. Attach the flexible air ducting to the unit’s duct collars making sure that air will not leak past the connection collar by using appropriate round flexible ducting clamps.

  • Page 6: Installation

    WPC-36003 Owner’s Manual Installation WARNINGS REGARDING PROPER LOCATION FOR INSTALLATION Do not use the unit in explosive environments or in areas where flammable gas leakage may occur. Do not use the unit in areas where it will be exposed to rain or water. Do not use the unit in a corrosive atmosphere.

  • Page 7: Operation

    WPC-36003 Owner’s Manual Operation CONTROL PANEL Figure 10 1. POWER BUTTON : Turns on/off the unit when the button is pressed for 1 second. 2. BLOWER BUTTON : Adjusts the fan speed from (Low) to (High) when the button is pressed for 1 second. NOTE: Some models only have one fan speed 3.
  • Page 8 WPC-36003 Owner’s Manual Operation CONTROL PANEL 7. CURRENT TEMP : Displays Current temperature NOTE: Canadian version shows the temperature in Celsius. 8. TARGET TEMP : Displays target temperature OFF-TIMER : Press BLOWER Button and SPOT/COOL Button simultaneously for 2 seconds to set off-timer.

  • Page 9: Maintenance

    WPC-36003 Owner’s Manual Maintenance FILTER CLEANING (See Figures 11 and 12) 1. loosen up 6 bolts on the front filter guard. 2. Slide filter up and use a vacuum cleaner to remove the dust from the filter. 3. If the filter is heavily covered with dust and dirt, warm water and mild soap or neutral deter- gent may be used to wash the filter.

  • Page 10: Self Diagnostic Codes

    WPC-36003 Owner’s Manual Maintenance (Continued) – To ensure your product is covered by warranty, the complete faulty product along with your original purchase receipt must be provided at the place of purchase. Product Portable Air Conditioner Customer: Please read and keep this Model No.
  • Page 11 WPC-36003 Owner’s Manual SELF-DIAGNOSTIC ALARM CODES Alarm Display Problem Cause Corrective Action • Blocked air filter • Clean air filter Refrigerant high • Blocked / kinked • Ensure exhaust duct is pressure switch exhaust duct not blocked / kinked • Ambient tempera- •...

  • Page 12: Wiring Diagram

    WPC-36003 Owner’s Manual Wiring Diagram PS (HP) Figure 14 - Circuit Wiring Diagram (WPC-36003)

  • Page 13: Troubleshooting Chart

    WPC-36003 Owner’s Manual Troubleshooting chart Symptom Possible Cause(s) Corrective Action 1. Check the power supply 1. Reset the circuit breaker and to verify that power is restart the unit available to the unit The unit doesn’t work 2. Verify that the power 2.

  • Page 14: Shipping List

    SHIPPING LIST • (1) High Capacity Air Conditioner • (1) Owner’s Manual OBTAINING SERVICE Weltem High Capacity Air Conditioner by AmeriCool If the requires Service: 1. Use the TROUBLESHOOTING section in this manual to eliminate obvious causes. 2. Verify there are no circuit breakers tripped.
  • Page 15 WPC-36003 Owner’s Manual...

  • Page 16: Limited Warranty

    TO THE EXTENT PERMITTED BY LAW, THIS WARRANTY, AS LIMITED HEREIN, SHALL BE IN LIEU OF AND EXCLUSIVE OF ALL OTHER WARRANTIES, EITHER EXPRESSED OR IMPLIED, ON THE PART OF AMERICOOL INC., OR WELTEM CO.,LTD. WHETHER ARISING FROM LAW, COURSE OF DEALING, US- AGE OF TRADE, OR OTHERWISE, INCLUDING WITHOUT LIMITATION ANY IMPLIED WARRANTY OF MERCHANT-ABILITY OR FITNESS OF A PARTICULAR PURP OSE OR ANY LIABILITY FOR COMMERCIAL LOSSES BASED UPON NEGLIGENCE OR MANUFACTURER’S STRICT LIABILITY.
