Weltem WPC-6000 Owner's Manual

Owner's Manual
Please read and save these instructions. Read carefully before attempting to assemble, install, oper-
ate or maintain the product described.
Protect yourself and others by observing all safety information. Failure to comply with instructions
could result in personal injury and / or property damage! Retain instructions for future reference.

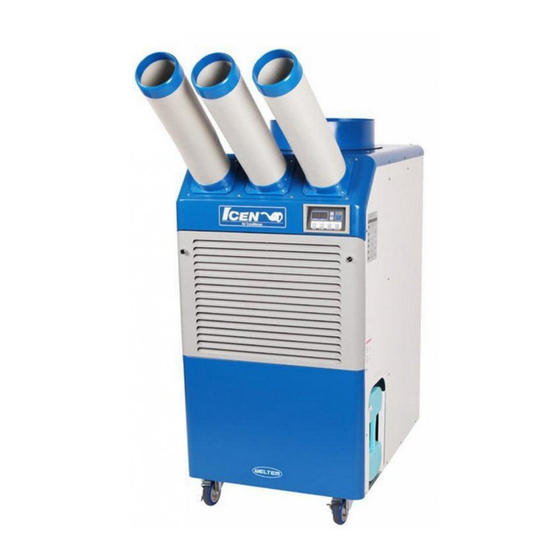

Portable Air Conditioners
Descripti on
Weltem Portable Air Conditi oners feature spot cooling for
large areas where cooling of the enti re area is not practi cal.
A dedicated spot cooling thermostat controls the unit in this
applicati on.
These air conditi oners can also be used in smaller areas for
room cooling.
A control panel provides ease of use and contains a self-diag-
nosti c functi on and display, showing operati ng modes, room
and set temperatures, and faults.
If an abnormal operati on occurs, a visual display of the fault is
shown. Caster wheels are included for easy portability. Suitable
applicati ons include: a factory or work place, computer room,
emergency cooling, etc.
Unpacking
Aft er unpacking the unit, carefully inspect unit for any damage that may have occurred during
transit. Check for any loose, missing, or damaged parts.
Specifi cati ons
Model Cooling Capacity
WPC - 6000 25,000BTU ( 7.3Kw )
Depth / Width/ Height
Model
/ Weight
561 / 747 / 1202 (mm)
WPC - 6000
/ 106kg
Refrigerant Electrical supply
R410A (910g) 230V, 1phase, 50hz
Fan speeds Air flow (high/low)
757 / 664 CFM
2
1
WPC-6000
Figure 1
Rated Current Power Consumption
Amps Watts
12.6 A
Noise level at 3m Operating range
(high/low)
Below 70 dBA
WPC-6000
2.9 kW
18~45°C
