Weltem Amps WPC-5000 Owner's Manual

Owner's Manual
Please read and save these instructions. Read carefully before attempting to assemble, install, oper-
ate or maintain the product described.
Protect yourself and others by observing all safety information. Failure to comply with instructions
could result in personal injury and / or property damage! Retain instructions for future reference.
Portable Air Conditioners
Description
Weltem Portable Air Conditioners feature spot cooling for large
areas where cooling of the entire area is not practical. A dedi-
cated spot cooling thermostat controls the unit in this applica-
tion. These air conditioners can also be used in smaller areas
for room cooling.
A control panel provides ease of use and contains a self-diag-
nostic function and display, showing operating modes, room
and set temperatures, and faults. If an abnormal operation oc-
curs, a visual display of the fault is shown. Caster wheels are
included for easy portability.
Suitable applications include: a factory or work place, industrial
kitchen, computer room, emergency cooling, outdoor event,
etc.
Unpacking
After unpacking the unit, carefully inspect unit for any damage that may have occurred during
transit. Check for any loose, missing, or damaged parts.
Specifications
Model No.
WPC-5000
Model No.
WPC-5000 20.5 x 26.4 x 41 (523 x 671 x 1042)
Model No.
WPC-5000
Owner's Manual
Power Supply Ph-V-Hz
Single Phase, 230V, 50Hz
Dimensions
W x D x H - in. (mm)
Power cord
Amp
10
Cooling Capacity
Btu/h
21,000
Weight (Net / Gross)
(kg)
88 / 94
Condensate tank
Gallons(Liters)
3.17 (12)
1
WPC-5000
WPC-5000
WPC-5000

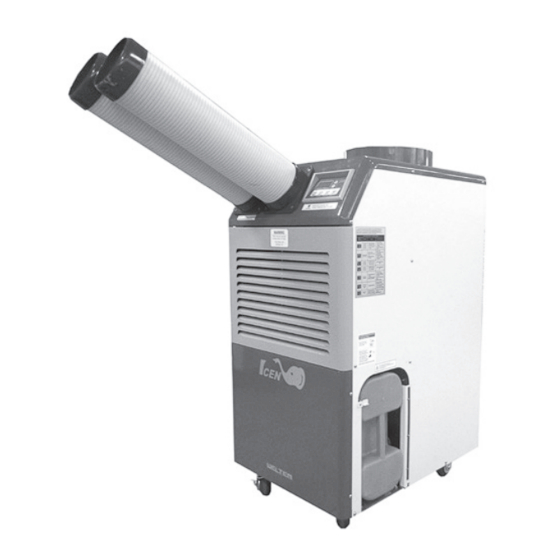

Figure 1
Power Consumption
Watts
2,100
Rated Current
Amps
9.5
Ambient temperature
range °F( °C)
64~113(18~45)
