WPC-3000, WPC-4000, WPC-5000
Owner's Manual
Please read and save these instructions. Read carefully before attempting to assemble, install, oper-
ate or maintain the product described.
Protect yourself and others by observing all safety information. Failure to comply with instructions
could result in personal injury and / or property damage! Retain instructions for future reference.
Portable Air Conditioners
Descrip on

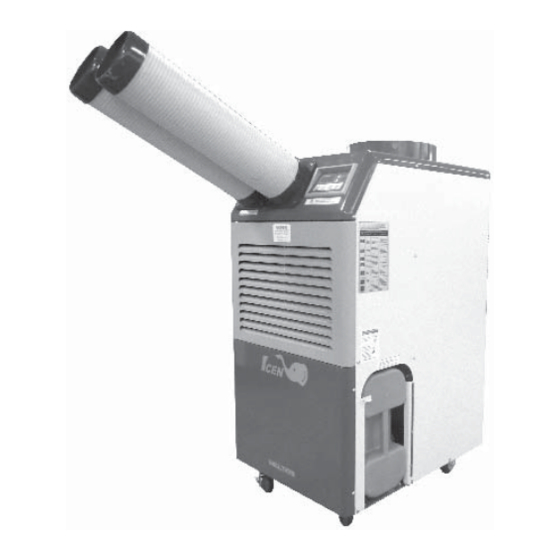

AmeriCool by Weltem Portable Air Condi oners feature
spot cooling for large areas where cooling of the en re area
is not prac cal. A dedicated spot cooling thermostat controls
the unit in this applica on.
These air condi oners can also be used in smaller areas for
room cooling. A control panel provides ease of use and con-
tains a self-diagnos c func on and display, showing operat-
ing modes, room and set temperatures, and faults.
If an abnormal opera on occurs, a visual display of the fault
is shown. Caster wheels are included for easy portability.
Suitable applica ons include: a factory or work place, indus-
trial kitchen, computer room, emergency cooling, outdoor
event, etc.
Unpacking
A er unpacking the unit, carefully inspect unit for any damage that may have occurred during
transit. Check for any loose, missing, or damaged parts.
Specifi ca ons
Model No.
Power Supply Ph-V-Hz
WPC-3000
Single Phase, 115V, 60Hz
WPC-4000
Single Phase, 115V, 60Hz
WPC-5000 Single Phase, 208/230V, 60Hz
Model No.
WPC-3000
WPC-4000
WPC-5000
Cooling Capac-
Nema Plug
5-15P
5-20P
6-15P
by
Power Consump-
ity Btu/h
on Wa s
13,200
1200
16,800
1700
21,200
2400
Power Cord
Power Cord Length
Gauge AWG
14
12
14
1
Owner's Manual
WPC-3000, WPC-4000, WPC-5000
WPC-3000,WPC-4000,WPC-5000
Figure 1
Rated Cur-
rent Amps
11.9
15.5
11.3 / 10.9
Dimensions
W x D x H - in. (mm)
10
20.6 x 26.4 x 41
6
(523 x 671 x 1042)
10
EER Btu/
Wh
11.0
9.8
8.8
