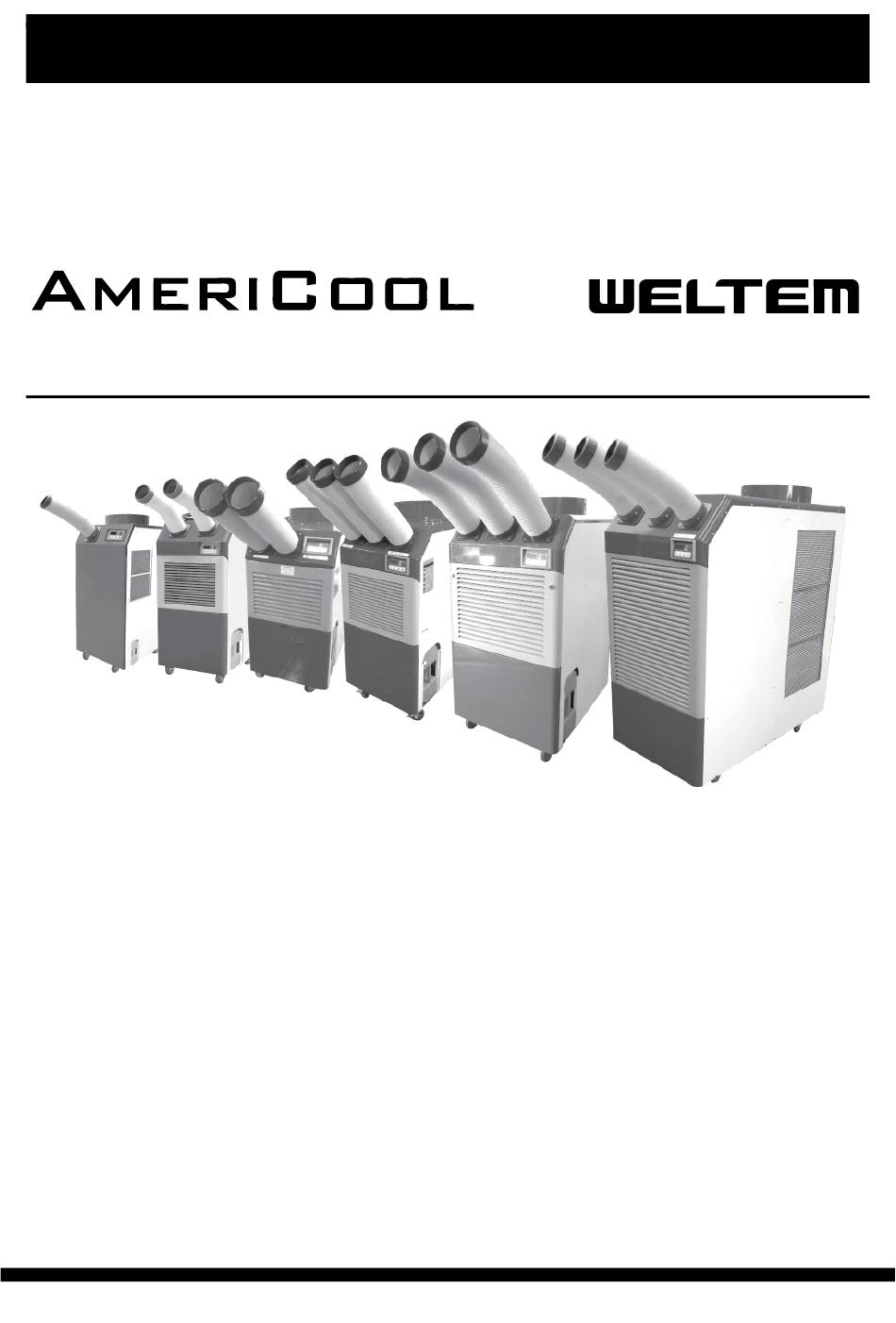

Owner's Manual
HPC-3000 / WPC-4000 / HPC-5000 / WPC-7000 / WPC-9000 / WPC-15000
Please read and save these instructions. Read carefully before attempting to assemble,
install, operate or maintain the product described.
Protect yourself and others by observing all safety information. Failure to comply with
instructions could result in personal injury andlor property damage! Retain instructions
for future reference.

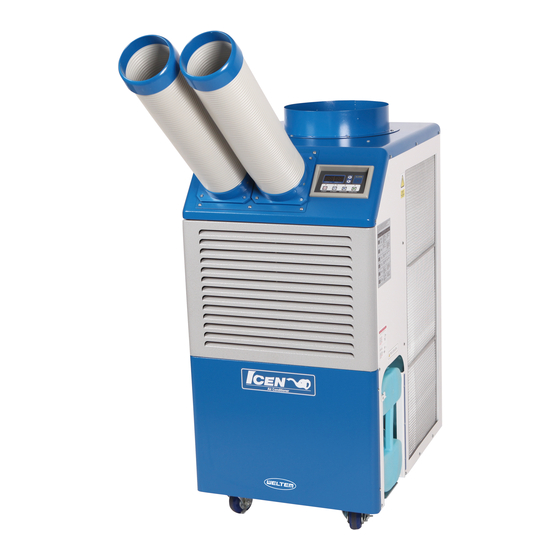

Portable Air Conditioners
Description
HPC-3000
WPC-4000
AmeriCool by Weltem Portable Air Conditioners feature spot cooling for large
areas where cooling of the entire area is not practical. A dedicated spot cooling
thermostat controls the unit in this application. These air conditioners can also
be used in smaller areas for room cooling.
A control panel provides ease of use and contains a self-diagnostic function and
display, showing operating modes, room and set temperatures, and faults. If an
abnormal operation occurs, a visual display of the fault is shown. Caster wheels
are included for easy portability. Suitable applications include: a factory or work
place, industrial kitchen, computer room, emergency cooling, outdoor event, etc.
Unpacking
After unpacking the unit, carefully inspect unit for any damage that may
have occurred during transit. Check for any loose, missing, or damaged parts.
HPC-5000
WPC-7000
MODEL : HPC-3000 / WPC-4000 / HPC-5000 /
WPC-7000 / WPC-9000 / WPC-15000
by
WPC-9000
WPC-15000
Owner's Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AmeriCool HPC-3000 and is the answer not in the manual?

Questions and answers

Related Manuals for Weltem AmeriCool HPC-3000

Summary of Contents for Weltem AmeriCool HPC-3000

  • Page 1 WPC-7000 WPC-9000 WPC-15000 AmeriCool by Weltem Portable Air Conditioners feature spot cooling for large areas where cooling of the entire area is not practical. A dedicated spot cooling thermostat controls the unit in this application. These air conditioners can also be used in smaller areas for room cooling.

  • Page 2: Table Of Contents

    HPC-3000 / WPC-4000 /HPC-5000 / WPC-7000 / WPC-9000 / WPC-15000 Owner’s Manual Table of Contents IMPORTANT SAFETY INSTRUCTIONS............4 INTRODUCTION..................6 PRODUCT DESCRIPTION................6 ASSEMBLY(HPC-3000).................7 Component Parts Power Cord Holder Discharge Ducts / Supply Air Duct Exhaust Flange(Optional) Ambient Air Adapters(Optional) ASSEMBLY(HPC-4000).................8 Component Parts Power Cord Holder Discharge Ducts / Supply Air Duct Exhaust Flange(Optional)
  • Page 3 LIMITED WARRANTY..................28 Thank you for selecting this Portable Air Condition- AmeriCool by Weltem er. It provides you with spot cooling for large areas where cooling of an entire area is not practical or possible. Please read this manual before installing the HPC-3000, WPC-4000, HPC-5000, WPC-7000, WPC-9000 or...

  • Page 4: Important Safety Instructions

    HPC-3000 / WPC-4000 /HPC-5000 / WPC-7000 / WPC-9000 / WPC-15000 Owner’s Manual IMPORTANT SAFETY INSTRUCTIONS: (SAVE THESE INSTRUCTIONS) Please read this manual carefully for instructions on correct installation and usage. Please read all safety instructions. 1. Transport and store the unit in an upright position only. Leave the unit in an upright position for at least 3 hours before use.
  • Page 5 HPC-3000 / WPC-4000 / HPC-5000 / WPC-7000 / WPC-9000 / WPC-15000 Owner’s Manual 16. Always turn the unit off and unplug the main power plug from the electrical outlet before cleaning, moving, or performing maintenance. 17. AVOID the use of adapter plugs or extension cords. If it is necessary to use an extension cord or an adapter plug to operate the unit, ensure that they are correctly rated for the application.

  • Page 6: Introduction

    AmeriCool by Weltem operating procedures, options available and emergency situations. It also includes information on how to ship, store, handle, and install the equip- ment. Only detailed requirements of the Weltem Portable Air Americool Conditioners are described herein, and installation must be carried out in accordance with this manual.

  • Page 7: Assembly(Hpc-3000)

    HPC-3000 / WPC-4000 / HPC-5000 / WPC-7000 / WPC-9000 / WPC-15000 Owner’s Manual ASSEMBLY(HPC-3000) Cool air outlet hose Top fan wire grille Display / Control board Evaporator / filter Condensate water tank (Water level is sensed, and the unit opera on is stopped when Guide bar for tank is full.

  • Page 8: Component Parts

    HPC-3000 / WPC-4000 /HPC-5000 / WPC-7000 / WPC-9000 / WPC-15000 Owner’s Manual ASSEMBLY(WPC-4000) COMPONENT PARTS Cool air outlet hose Top fan exhaust flange Display / Control board Evaporator / filter Condenser / filter Guide bar for condensate water tank Condensate water tank (Water level is Electrical access panel sensed, and the unit opera on is stopped when tank is full.

  • Page 9: Component Parts

    HPC-3000 / WPC-4000 / HPC-5000 / WPC-7000 / WPC-9000 / WPC-15000 Owner’s Manual ASSEMBLY(HPC-5000) Component Parts Rubber stoppers Cool air outlet hose Top fan wire grille Display / Control board Condensate water tank Condenser / filter Evaporator / filter (Water level is sensed, and the unit opera on is stopped when tank is full.

  • Page 10: Discharge Ducts /Supply Air Duct

    shown in Figure 17. to another loca on. 3. Use screws to install the cool air 1. Remove exhaust flange from carton. outlet hose(s) to the front of the 2. Place exhaust flange on the top of air unit (screws a ached to the cool condi oner.

  • Page 11: Discharge Ducts /Supply Air Duct

    3. Use screws (enclosed inside of 3. Use screws (enclosed inside of box with the top fan exhaust accessory box with cord holder) flange) to install the top fan to install the cord holder on the exhaust flange on air condi oner air condi oner as shown in as shown in Figure 23.

  • Page 12: Exhaust Flange

    3. Use screws (enclosed inside of 3. Use screws (enclosed inside of box accessory box ith cord with cool air outlet hose(s) to install holder)to install the cord the cool air outlet hose(s) holder on the air condi oner on the air condi oner as shown in as shown in Figure 28.

  • Page 13: Moving The Unit

    HPC-3000 / WPC-4000 / HPC-5000 / WPC-7000 / WPC-9000 / WPC-15000 Owner’s Manual Moving the Unit Unlock the casters and push the unit using the side handles to a flat, level surface and set the cater brakes to the locked position. Plugging in the Unit Check the prongs and surface of the power cord plug for dust/dirt.

  • Page 14: Operation

    HPC-3000 / WPC-4000 /HPC-5000 / WPC-7000 / WPC-9000 / WPC-15000 Owner’s Manual OPERATION Control Panel Figure 32 – Control Panel 1. POWER BUTTON • Activates unit when POWER BUTTON is pressed. • Fan starts on low speed. • If POWER BUTTON is pressed during operation, unit stops. 2.

  • Page 15: Maintenance

    HPC-3000 / WPC-4000 / HPC-5000 / WPC-7000 / WPC-9000 / WPC-15000 Owner’s Manual 6. ALARM • Alarm indicator light blinks and indicates abnormal system operation. • If Alarm occurs, compressor stops. • System operation stops when ALARM light is activated /blinking longer than 3 minutes.
  • Page 16 HPC-3000 / WPC-4000 /HPC-5000 / WPC-7000 / WPC-9000 / WPC-15000 Owner’s Manual Figure 33 – Removing Filters HPC-3000 HPC-5000 – Li up on the side filters from the middle bar – Pull the filter frame forward to remove the front filter. slightly and then angle the filter outwards from the –...
  • Page 17 HPC-3000 / WPC-4000 / HPC-5000 / WPC-7000 / WPC-9000 / WPC-15000 Owner’s Manual 3. If the filter is heavily covered with dust and dirt, warm water and mild soap or neutral detergent may be used to wash the filter. Do not use any other chemi- cals to clean the filter, as they will likely damage the filter.

  • Page 18: Spring Replacement

    HPC-3000 / WPC-4000 /HPC-5000 / WPC-7000 / WPC-9000 / WPC-15000 Owner’s Manual Spring Replacement There are two springs on the rear of the condenser water tank guide. 1. Release the screw on the spring hook. 2. Take off the spring hook, and then pull out the opposite spring hook from the hole in the condenser water tank guide.

  • Page 19: Alarm Codes

    HPC-3000 / WPC-4000 / HPC-5000 / WPC-7000 / WPC-9000 / WPC-15000 Owner’s Manual Alarm Codes SELF-DIAGNOSTIC ALARM CODES Alarm Display Problem Cause Corrective Action • Indoor heat ex- • Do not use the air Frost prevention changer temperature conditioner if ambient sensor and Abnormal too low temperature is lower than...

  • Page 20: Troubleshooting Chart

    HPC-3000 / WPC-4000 /HPC-5000 / WPC-7000 / WPC-9000 / WPC-15000 Owner’s Manual Troubleshooting Chart Symptom Possible Causes Corrective Action • Remove blockage from drain hose High water level in conden- Water leakage • Remove any object stuck un- sate tank derneath of the black panel under the water tank •...

  • Page 21: Specifications

    HPC-3000 / WPC-4000 / HPC-5000 / WPC-7000 / WPC-9000 / WPC-15000 Owner’s Manual Specifications Specifications Unit HPC-3000 WPC-4000 HPC-5000 Cooling Capacity BTU/HR 13,200 16,800 21,000 PHASE Single Single Single Power Supply VOLTS 208 / 230 HERTZ Size (W x D x H) INCHES 17.5 x 19.9 x 43.3 20.5 x 26.1 x 40.9 22.0 x 24.4 x 50.4 Weight...
  • Page 22 HPC-3000 / WPC-4000 /HPC-5000 / WPC-7000 / WPC-9000 / WPC-15000 Owner’s Manual Specifications Unit WPC-7000 WPC-9000 WPC-15000 Cooling Capacity BTU/HR 29,000 37,000 60,000 PHASE Single Single Single Power Supply VOLTS 208 / 230 208 / 230 208 / 230 HERTZ Size (W x D x H) INCHES 22.0 x 29.4 x 47.3...

  • Page 23: Wiring Diagram

    HPC-3000 / WPC-4000 / HPC-5000 / WPC-7000 / WPC-9000 / WPC-15000 Owner’s Manual Wiring Diagram (TH1) (TH2) (TH3) DRAIN PUMP Figure 36 - Circuit Wiring Diagram (Models HPC-3000 / HPC-5000 / HPC-7000) page 23...
  • Page 24 HPC-3000 / WPC-4000 /HPC-5000 / WPC-7000 / WPC-9000 / WPC-15000 Owner’s Manual POWER POWER 1P AC115 1P AC115 DRAIN PUMP (option) Figure 37 - Circuit Wiring Diagram (Models WPC-4000 ) page 24...
  • Page 25 HPC-3000 / WPC-4000 / HPC-5000 / WPC-7000 / WPC-9000 / WPC-15000 Owner’s Manual RELAY RELAY DRAIN PUMP (option) Figure 38 - Circuit Wiring Diagram (Models WPC-7000 / WPC-9000 ) page 25...
  • Page 26 HPC-3000 / WPC-4000 /HPC-5000 / WPC-7000 / WPC-9000 / WPC-15000 Owner’s Manual Wiring Diagram Figure 39 - Circuit Wiring Diagram (Models WPC-15000 ) page 26...

  • Page 27: Shipping List

    (3) WPC-7000 (3) WPC-9000 (3) WPC-15000 • (1) EXHAUST FLANGE (for WPC-4000,7000,9000,15000) OBTAINING SERVICE AmeriCool by Weltem Portable Air Conditioner If the requires Service: 1. Use the TROUBLESHOOTING section in this manual to eliminate obvious causes. 2. Verify there are no circuit breakers tripped.
  • Page 28 HPC-3000 / WPC-4000 /HPC-5000 / WPC-7000 / WPC-9000 / WPC-15000 Owner’s Manual page 28...
  • Page 29 HPC-3000 / WPC-4000 / HPC-5000 / WPC-7000 / WPC-9000 / WPC-15000 Owner’s Manual page 29...
  • Page 30 HPC-3000 / WPC-4000 /HPC-5000 / WPC-7000 / WPC-9000 / WPC-15000 Owner’s Manual page 30...

  • Page 31: Limited Warranty

    HPC-3000 / WPC-4000 / HPC-5000 / WPC-7000 / WPC-9000 / WPC-15000 Owner’s Manual LIMITED WARRANTY AMERICOOL ONE-YEAR LIMITED WARRANTY. AMERICOOL BY WELTEM PORTABLE AIR CONDITIONERS, MODELS COVERED IN THIS MANUAL, ARE WARRANTED BY AMERI- COOL TO THE ORIGINAL USER AGAINST DEFECTS IN WORKMANSHIP OR MATERIALS UNDER NORMAL USE FOR ONE YEAR AFTER DATE OF PURCHASE.
  • Page 32 TO THE EXTENT PERMITTED BY LAW, THIS WARRANTY, AS LIMITED HEREIN, SHALL BE IN LIEU OF AND EXCLUSIVE OF ALL OTHER WARRANTIES, EITHER EXPRESSED OR IMPLIED, ON THE PART OF AMERICOOL INC., OR WELTEM CO.,LTD. WHETHER ARISING FROM LAW, COURSE OF DEALING, US- AGE OF TRADE, OR OTHERWISE, INCLUDING WITHOUT LIMITATION ANY IMPLIED WARRANTY OF MERCHANT-ABILITY OR FITNESS OF A PARTICULAR PURP OSE OR ANY LIABILITY FOR COMMERCIAL LOSSES BASED UPON NEGLIGENCE OR MANUFACTURER’S STRICT LIABILITY.
