3.1

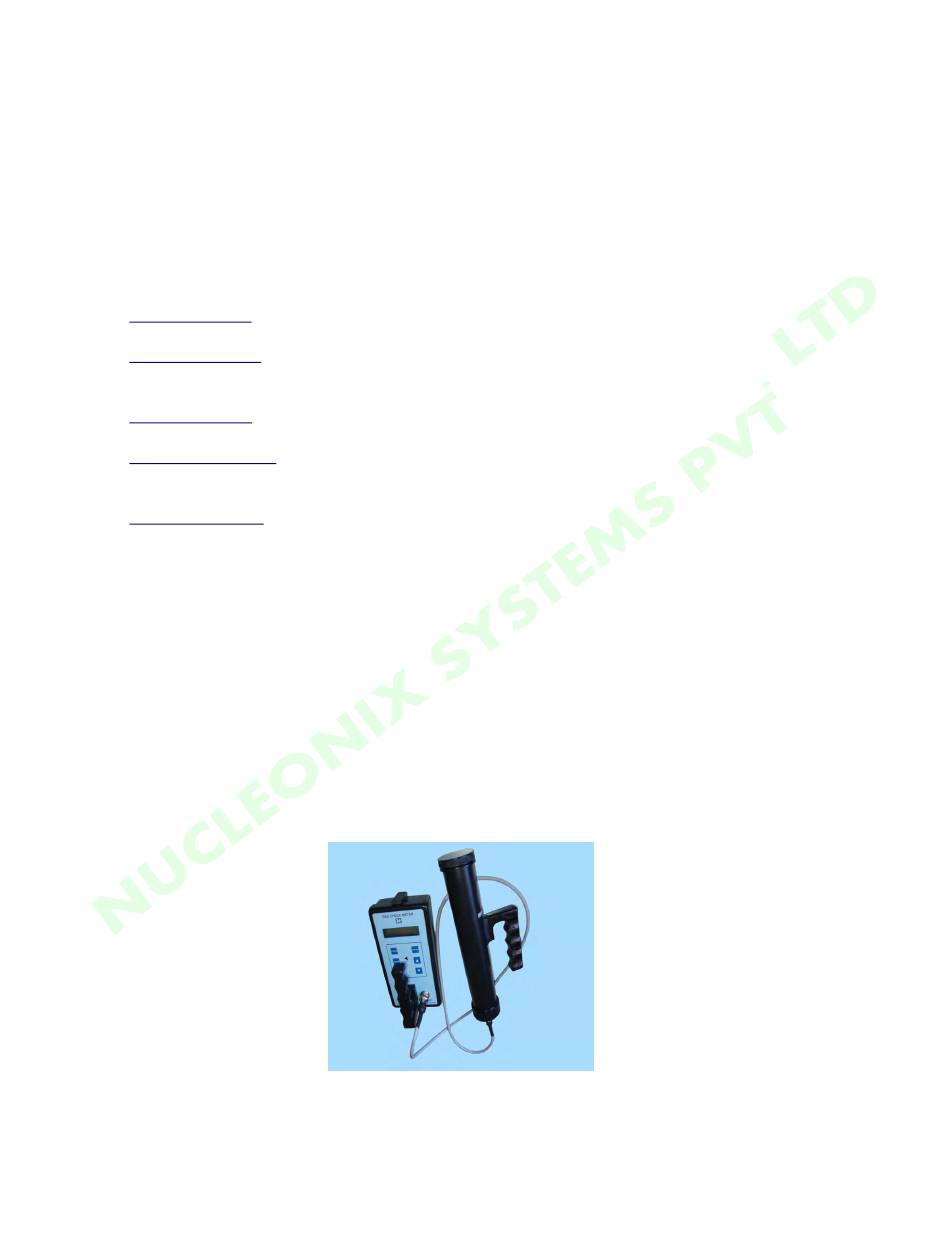

FRONT PANEL CONTROLS AND INDICATIONS
3.1.1.
LCD DOTMATRIX DISPLAY
This is a 16 X 2 alpha numeric LCD dot matrix display and responds to all the commands from the
keypad and displays programme parameters like Acquisition modes (BG, CPS, CPM, DOSE RATE,
PRESET TIME), TC, Recall, Save etc.
3.1.2.
INTELLIGENT KEYPAD
(a)
PROG key button: This key is an important one which facilitates the user to programme the operation of the
instrument for different modes / conditions.
(b)
START key button: This is used for starting of acquisition once all the programme parameters have been
set.
(c)
STOP key button: This key can be used to stop acquisition.
(d)
INC/DEC key button: These keys are used while setting the programme parameters to
increment/decrement a value or to change the option selected to another value available.
(e)
STORE key button: This key is used for storing the readings or data values in the following way.
If you want to store the data, then press STOP button to stop acquisition and then press STORE button.
Note: Keypad commands have been explained in detail under chapter V - 5.1.
3.1.3.
POWER ON KEY BUTTON:
If you want to store the data, then press STOP button to stop acquisition and then press STORE button.
Note: Keypad commands have been explained in detail under chapter V - 5.1.
.
CHAPTER - III
FRONT PANEL & SIDE PANEL CONTROLS
This key is used for the unit to put ON/OFF.
RC705E (External)
Page 3 of 49
