CHAPTER 1. INTRODUCTION

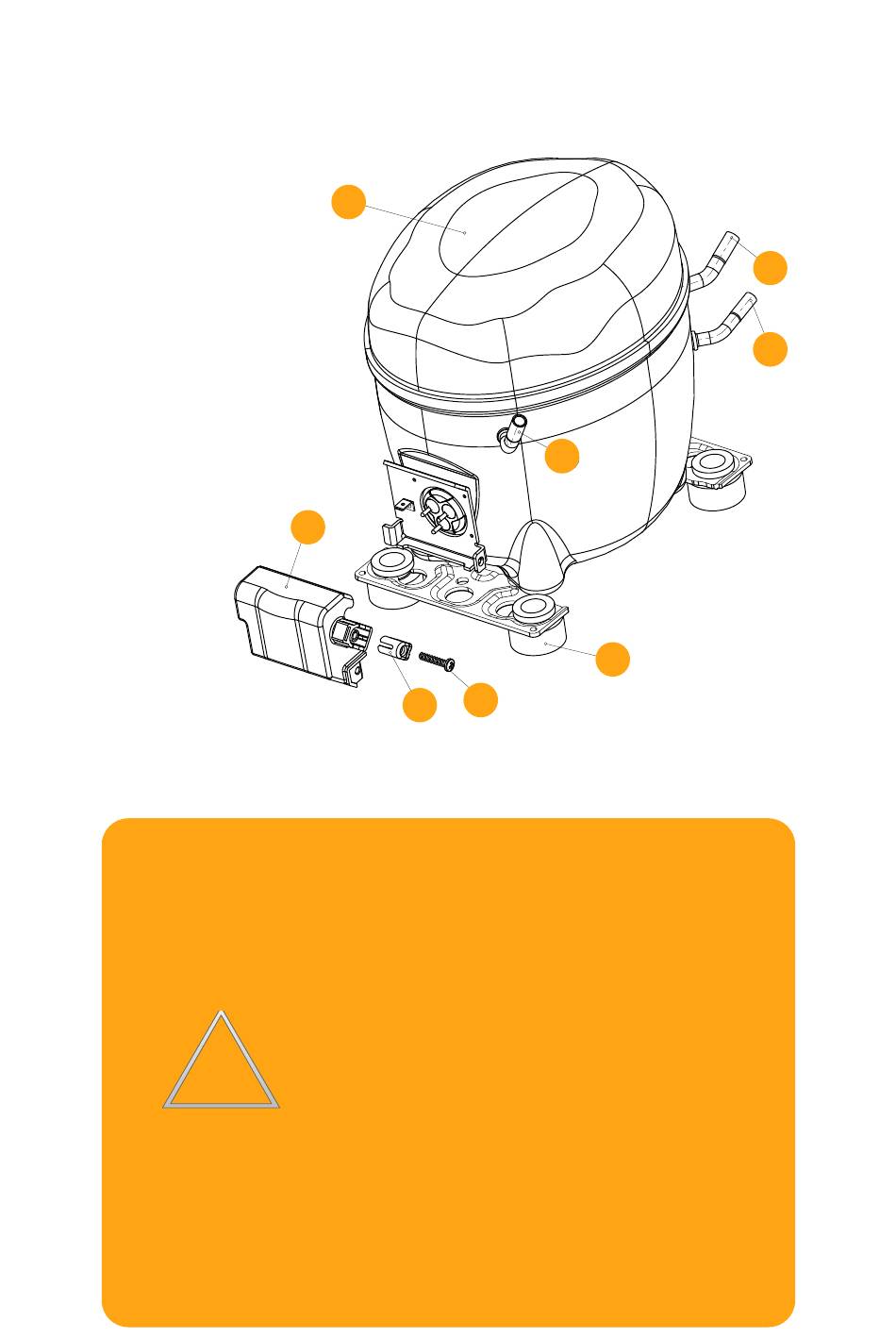

1.3 FMF and VEG compressor series description

1 - Fence cover
Cord anchorage
2 -
3 - Screw
4 -Grommets
Compressor shell
5 -
6 -
Process tube
Discharge tube
7 -
8 -
Suction tube

1.4 Product handling

! !
WARNING
! ! ! !
CAUTION
NOTICE
5
1
2
• Inverter is sensitive to Electrostatic Dis-
charges. Take care with product handling
until final assembly.
• Special care must be taken to avoid me-
chanical impacts on the inverter during
assembly process.
• The environment must be properly pro-
tected against ESD.
• The workers that handle the inverter must
be Earthed through adequate ESD wrist
strap and must wear ESD gloves.
• Do not hold by the wiring.
• Do not use the inverter if it drops during
handling.
6
4
3
4
7
8
