CHAPTER 2. TECHNICAL SPECIFICATIONS

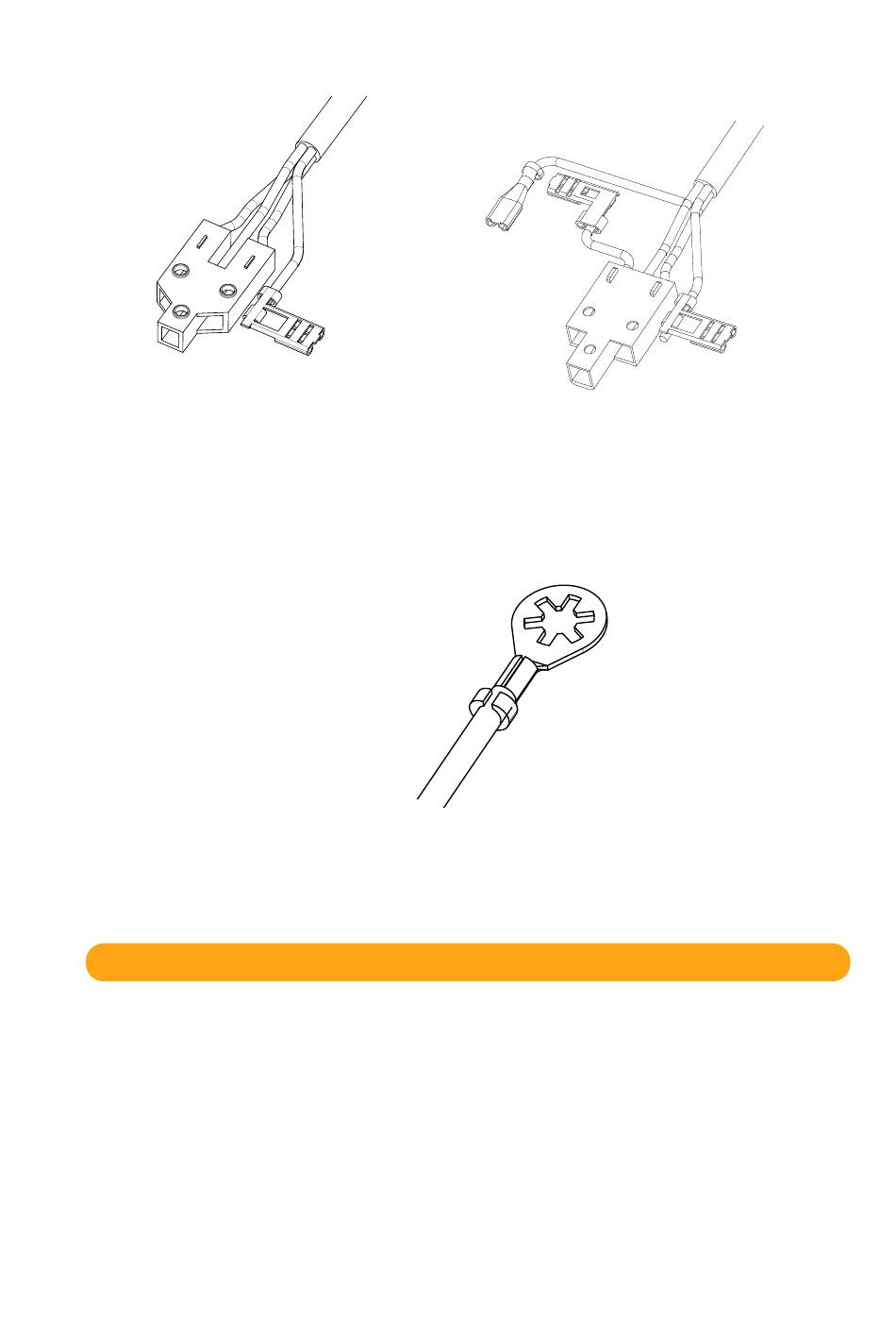

Figure 2.3: Motor cable for
VEG and FMF compressor
series
Indicator Description
Figure 2.3
Motor Cable
Motor Cable
Figure 2.4
With OLP
Safety Earth
Figure 2.5
EMI Earth
Figure 2.5
Inside the inverter enclosure, the compressor motor and Earth cables must be con-
nected as shown in Figure 2.6. Earth cables shall always be connected first to avoid
ESD.
Figure 2.5: EMI Earth and
Safety Earth Cable
Cable Specification
Standard
UL STYLE 2586 105°C 600 V
UL STYLE 2586 105°C 600 V
UL STYLE 1015 105°C 600 V
Cable
UL STYLE 1015 105°C 600 V
Cable
Figure 2.4: Motor cable for VNE
compressor series with OLP
Part Specification
13
Color
Black, Blue and
Brown
Black, Blue and
Brown
Green/Yellow
White
