CHAPTER 3. INSTALLATION
The Fullmotion CF10C Inverter comprises three basic elements:
1. Plastic body;
2. Electronic board;
3. Plastic cover;
4. Heat sink.
CF10C inverter is compatible with three compressor's family. Subsection 3.1.1 de-
scribes the compressor cable connection for VEG and FMF series, while subsection
3.1.2 the cable connection for VNE compressor series.

3.1.1 VEG and FMF compressor cable connection

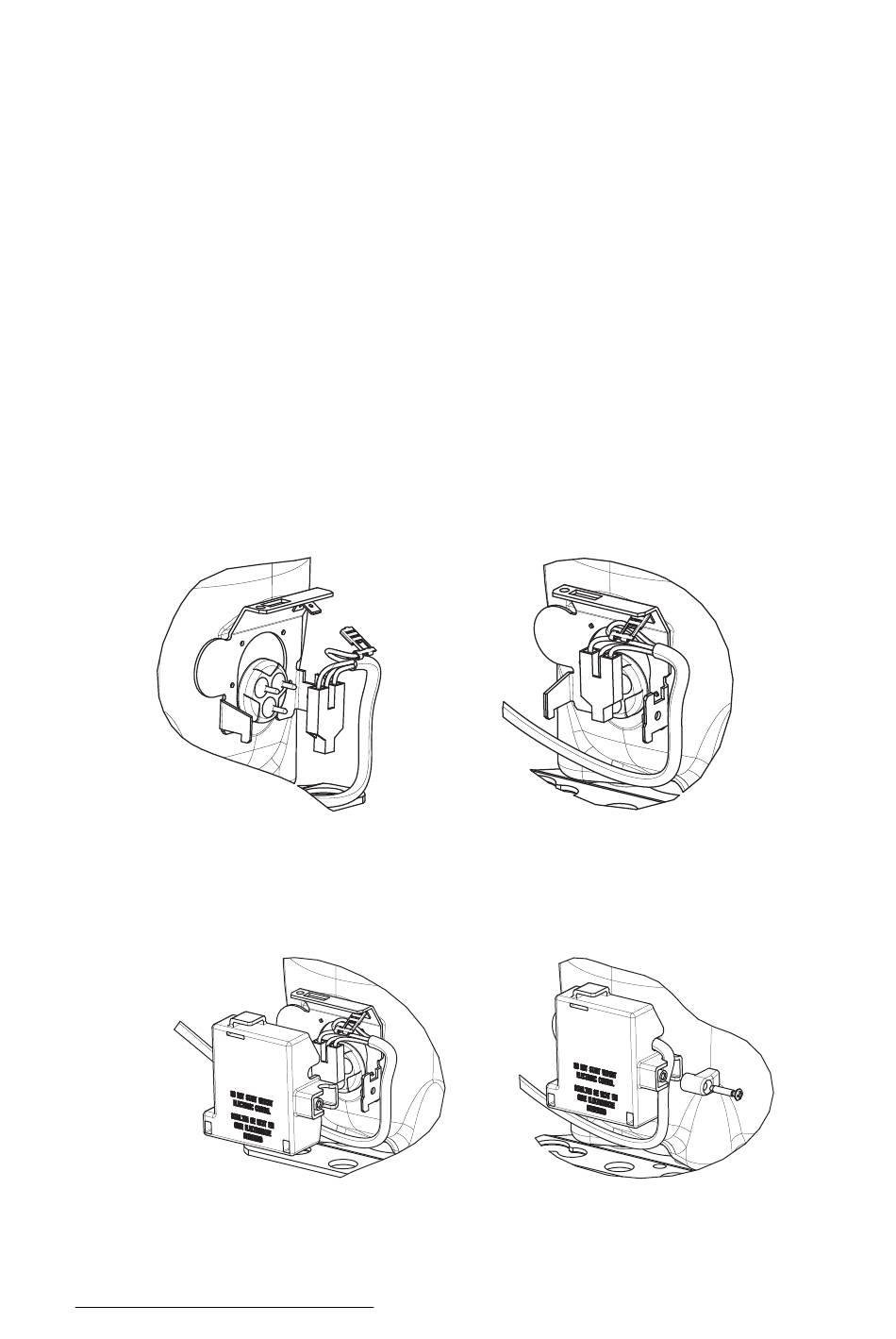

To connect the inverter to the compressor, attach the motor cable on the hermetic
compressor terminal, as shown in Figure 3.2 and Figure 3.3 * .
Figure 3.2: Step 1
Aſter performing the connections, assemble the compressor fence cover as shown
in the following sequence (Step 3 and 4).
Figure 3.4: Step 3
* The figures displayed here are merely illustrative
Figure 3.3: Step 2
Figure 3.5: Step 4
17
