CHAPTER 3. INSTALLATION
- the remaining terminal of customer's AC Fan to the Neutral (or Phase).
3.1.5 Inverter cables arrangement
The input and communication cables are not provided by Embraco. Therefore, in-
verter cables must be arranged according to the following instructions.
1. Push/pull repeatedly the cover plastic flap until it detach as much as neces-
sary to pass the cables.
2. Take care to positioning the EMI earth (when applied) and Safety earth cables
with the protecting tape beneath the cord relief as shown in Figure 3.10.
3. The cables must pass through the cord relief as shown in Figure 3.11.
4. Assemble the cord relief.

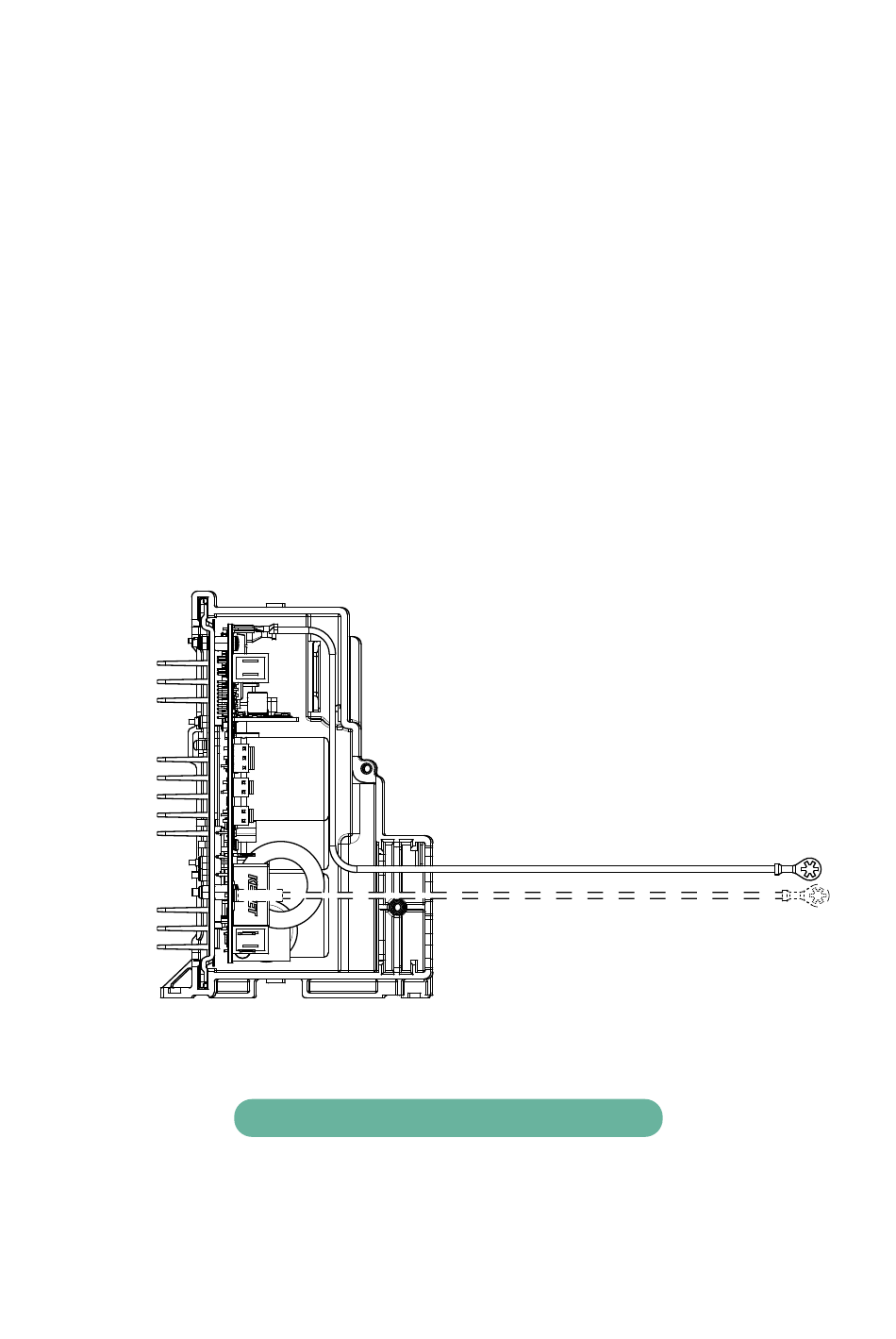

Figure 3.10: Cables arrangement
Routing Description
Indicator
1
2
EMI Earth Cable (optional)
3
Communication Cable
4
5
6
Description
AC Input Cable
FAN Cable
Cord Relief
Fixing Screw
25
