CHAPTER 3. INSTALLATION

3.1.2 VNE compressor cable connection

Electrical components installation
2.7.
To connect the inverter to the compressor, attach the motor cable on the hermetic
compressor terminal, as shown in the sequence * .

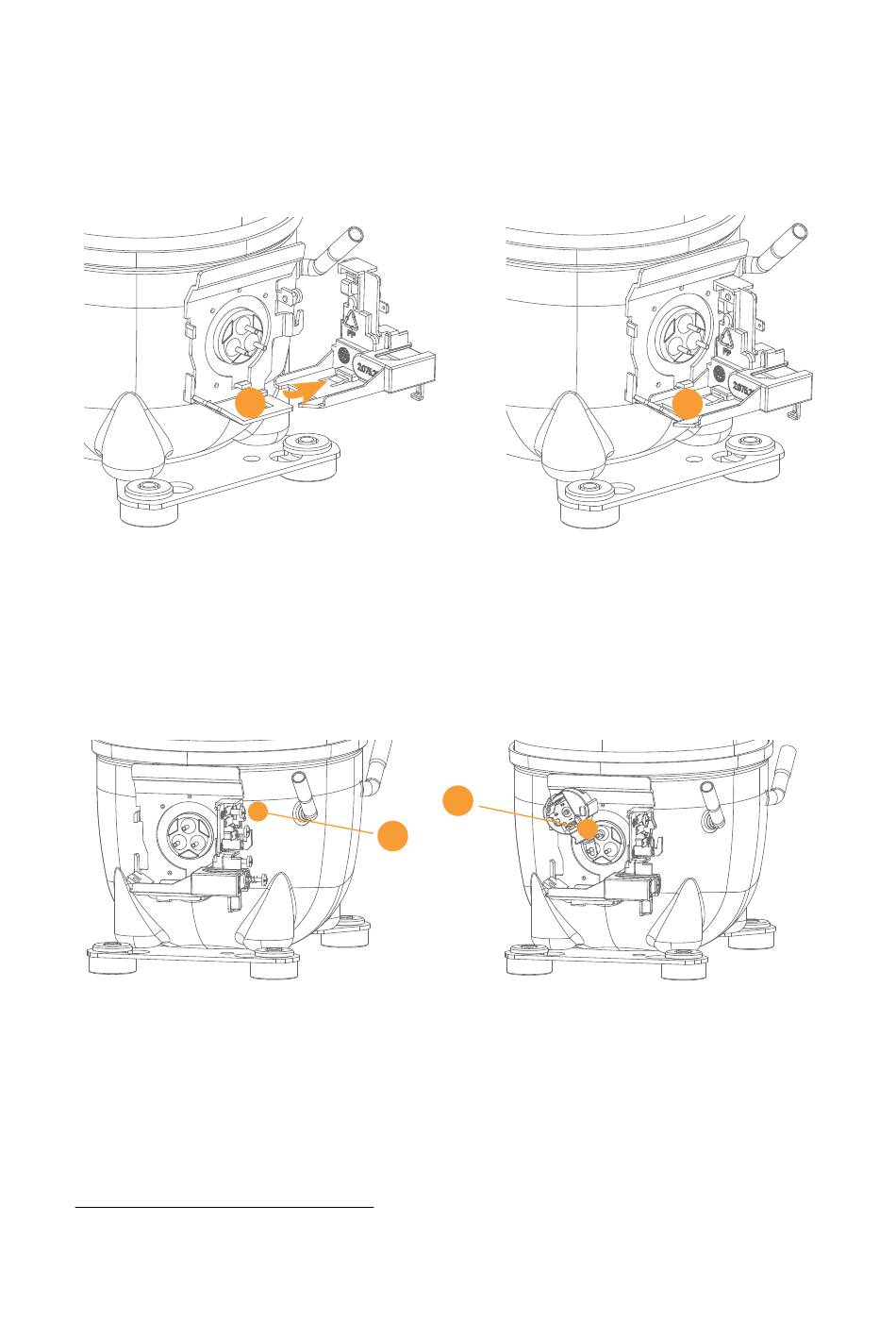

Step 1:
Check the cord anchorage position on
the fence support (1).
Step 3:
Grounding terminal to fasten the
screw in cord anchorage bracket (3)
(screw torque 0.1 - 0.6 N.m.).
* The figures displayed here are merely illustrative
1
3
Step 2:
Slide cord anchorage snap for
attachment on fence (2).
4
Step 4:
Insert OLP bracket in the hermetic
terminal pin (4).
