Drop-In Control Mode - Embraco Fullmotion CF10C Product Manual

CHAPTER 4. OPERATION
Thermostat TX

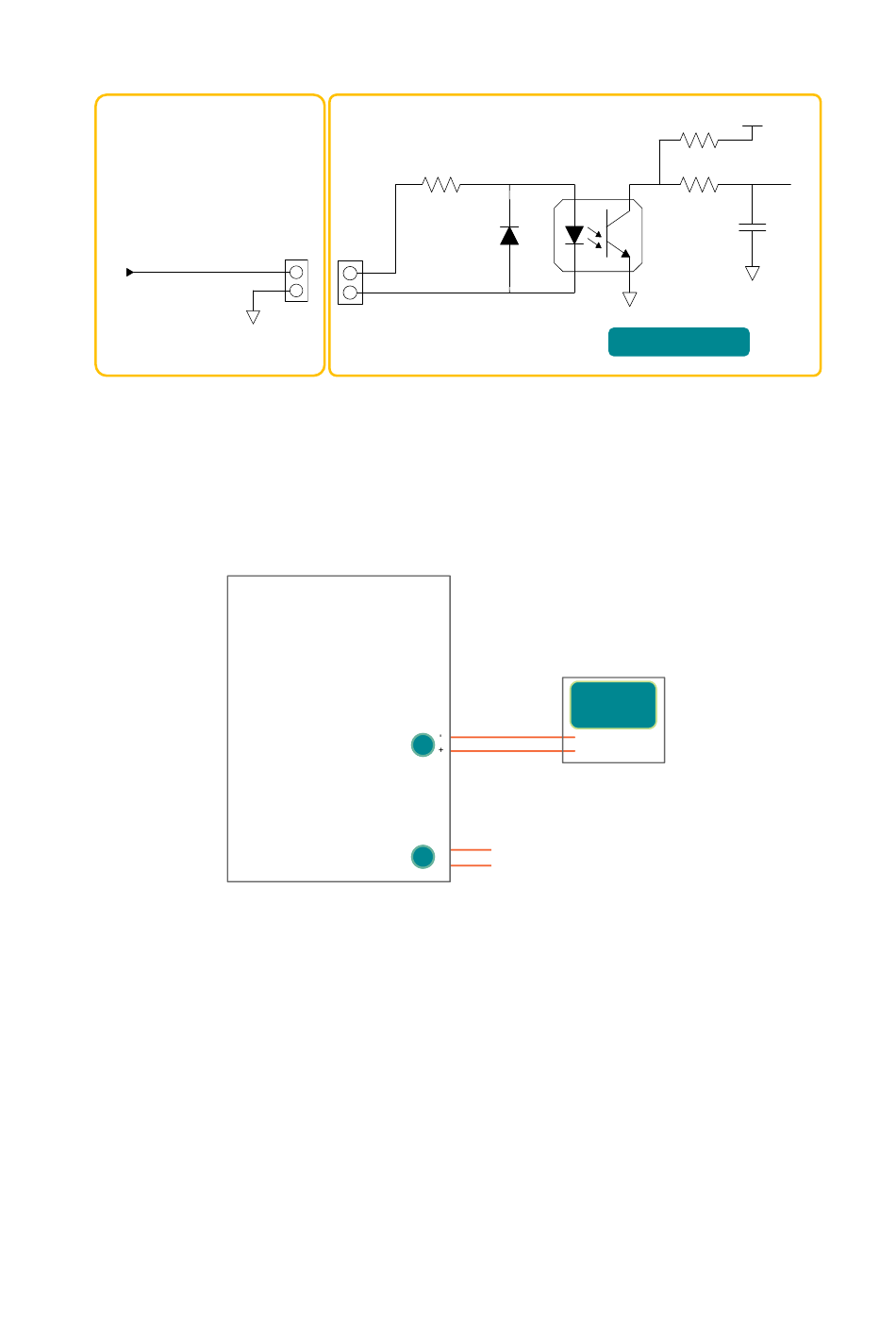

Figure 4.1: Electrical schematic of frequency communication
The following figure shows the right way to perform the Frequency Control Mode
connection according to the connectors described in Figure 2.2.
Thermostat TX
Thermostat RX
Figure 4.2: Frequency control mode connection

4.2 Drop-In control mode

The Drop-In mode is a Fullmotion CF10C Inverter control mode, where single ther-
mostat contact is used to set the compressor running conditions. Drop-In mode
allows the application to any refrigeration system with a simple ON/OFF thermo-
stat, without needing a control signal coming from an electronic thermostat. The
compressor speed will be adjusted automatically by the Inverter, in accordance to
the thermal load variation.
CN 203 pinout:
PIN 1 – Signal from Thermostat
PIN 2 – Thermostat GND
1
2
3
VCC
CF10C INVERTER CF10C INVERTER
2
4
CN 204
1
2
3
CN 204 pinout:
PIN 1 – Signal from Thermostat
PIN 2 – Thermostat GND
PIN 3 – Signal toThermostat
Eletronic
Thermostat
Collector current
range: 1 mA to 2 mA
Common (-)
Frequency Signal
Input (+)
Neutral
N
Phase
L
VCC
Inverter board
VCC
Inverter TX
VCC
Inverter RX
