1.SPECIFICATIONS
1-1. LCD PANEL(BASE ON PANEL)
1. DISPLAY AREA: 338(H)x270(V)mm
2. NUMBER OF PIXELS: 1280x1024
3. PIXEL PITCH: 0.264(H)x0.264(V)mm
4. CONTRAST RATIO: 500:1(Typical, Perpendicular)
5. VIEWING ANGLE(More than the contrast ratio of 10:1)
HORIZONTAL : 160 (Typical)
VERTICAL: 140 (Typical)
6. RESPONSE TIME: 25mS(Typical) "WHITE" TO "BLACK"
7. LUMINANCE: 400 cd/m2(Typical)
1-2. VIDEO AND SYNCHRONIZATION SIGNALS
1. SIGNAL CABLE: 15-Pin D-Shell Connector
2. VIDEO: Analog Levels
3. HORIZONTAL SYNC: TTL Positive/Negative
4. VERTICAL SYNC: TTL Positive/Negative
5. PIXEL FREQUENCY: 135MHz(Max.)
6. DISPLAY COLORS: Limited by VGA Card
7. VIDEO SIGNAL INPUT: 0.7VPP
1-3. DISPLAY DATA CHANNEL
COMPATIBILITY: VESA DDC 1/2B
1-4. SCANNING FREQUENCY
1. HORIZONTAL: 30 - 82 KHz .
2. VERTICAL: 50 - 75Hz .
1-5. POWER SUPPLY
AC INPUT: 100~240 VAC, 60/50Hz, 1.0A
1-6. ENVIRONMENT
1. OPERATING TEMPERATURE: 0 C ~ 40 C
2. OPERATING HUMIDITY: 10%~ 90%
3. STORAGE TEMPERATURE: -20 C ~ 60 C

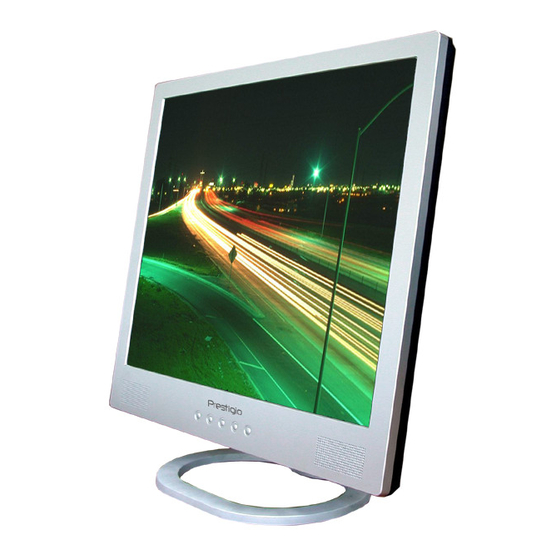

PRESTIGIO P178
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Prestigio P178
Summary of Contents for Prestigio P178
- Page 1 2. VERTICAL: 50 - 75Hz . 1-5. POWER SUPPLY AC INPUT: 100~240 VAC, 60/50Hz, 1.0A 1-6. ENVIRONMENT 1. OPERATING TEMPERATURE: 0 C ~ 40 C 2. OPERATING HUMIDITY: 10%~ 90% 3. STORAGE TEMPERATURE: -20 C ~ 60 C PRESTIGIO P178...
- Page 2 Open the Hinge Cover and screw off the Hinge c. Assemble one metal kit to the Real Cover d. Hang the LCD Monitor on the wall 3-3. POWER ON Turn on the Power Switch of both your LCD Monitor and your computer. PRESTIGIO P178...
- Page 3 Phase : Adjust the video distortion. It will appear vertical noise on the screen while adjust the Phase. Clock : Adjust the video distortion. It will appear horizontal noise on the screen while adjust the Clock. Exit : To the main menu PRESTIGIO P178...
- Page 4 Mode Select : Press \/ or /\ to select the mode Reset : Restore the default value(factory mode). Press “Menu Key” to executing Press \/ or /\ to adjust the volume setting Exit : To the main menu EXIT Exit : Exit the main menu PRESTIGIO P178...
- Page 5 Do not attempt to remove the back cover of the monitor by yourself. Contact your monitor dealer or authorized service personnel if your monitor needs to be repaired. To prevent fire or shock hazard, do not expose this monitor to rain or moisture. 7-2. Weight Approx. 4kgs(net) 7-3. VIDEO PIN ASSIGNMENTS PRESTIGIO P178...
- Page 6 DOC COMPLIANCE This digital apparatus does not exceed the Class B limits for radio noise emissions from digital apparatus as set out in the Radio interference Regulations of the Canadian Department of Communications. PRESTIGIO P178...
