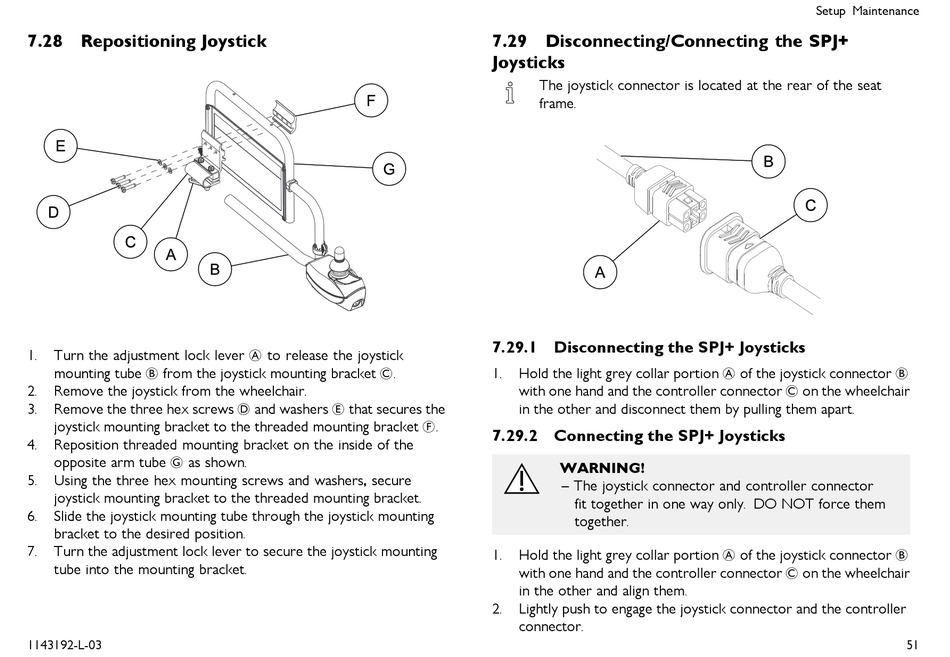

7.28 Repositioning Joystick
Turn the adjustment lock lever A to release the joystick
1.
mounting tube B from the joystick mounting bracket C.
2.
Remove the joystick from the wheelchair.
Remove the three hex screws D and washers E that secures the
3.
joystick mounting bracket to the threaded mounting bracket F.
4.
Reposition threaded mounting bracket on the inside of the
opposite arm tube G as shown.
5.
Using the three hex mounting screws and washers, secure
joystick mounting bracket to the threaded mounting bracket.
6.
Slide the joystick mounting tube through the joystick mounting
bracket to the desired position.
7.
Turn the adjustment lock lever to secure the joystick mounting
tube into the mounting bracket.
1143192-L-03
7.29 Disconnecting/Connecting the SPJ+
Joysticks
The joystick connector is located at the rear of the seat
frame.
7.29.1 Disconnecting the SPJ+ Joysticks
Hold the light grey collar portion A of the joystick connector B
1.
with one hand and the controller connector C on the wheelchair
in the other and disconnect them by pulling them apart.
7.29.2 Connecting the SPJ+ Joysticks
WARNING!
– The joystick connector and controller connector
fit together in one way only. DO NOT force them
together.
Hold the light grey collar portion A of the joystick connector B
1.
with one hand and the controller connector C on the wheelchair
in the other and align them.
2.
Lightly push to engage the joystick connector and the controller
connector.
Setup Maintenance
51
