Adjustable ASBA Seats

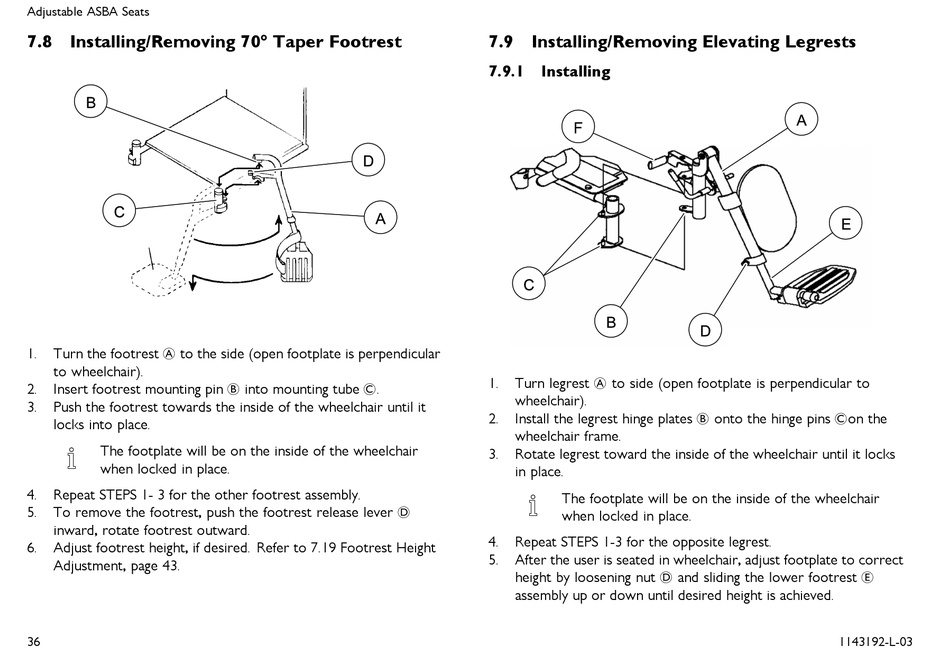

7.8 Installing/Removing 70° Taper Footrest
Turn the footrest A to the side (open footplate is perpendicular
1.
to wheelchair).
Insert footrest mounting pin B into mounting tube C.
2.
3. Push the footrest towards the inside of the wheelchair until it
locks into place.
The footplate will be on the inside of the wheelchair
when locked in place.
4. Repeat STEPS 1- 3 for the other footrest assembly.
5. To remove the footrest, push the footrest release lever D
inward, rotate footrest outward.
6. Adjust footrest height, if desired. Refer to 7.19 Footrest Height
Adjustment, page 43.
36

7.9 Installing/Removing Elevating Legrests

7.9.1 Installing

Turn legrest A to side (open footplate is perpendicular to
1.
wheelchair).
Install the legrest hinge plates B onto the hinge pins Con the
2.
wheelchair frame.
3. Rotate legrest toward the inside of the wheelchair until it locks
in place.
The footplate will be on the inside of the wheelchair
when locked in place.
4. Repeat STEPS 1-3 for the opposite legrest.
5. After the user is seated in wheelchair, adjust footplate to correct
height by loosening nut D and sliding the lower footrest E
assembly up or down until desired height is achieved.
1143192-L-03
