4. Slide heel loop up and off of footrest assembly.
5. To install heel loop, reverse STEPS 1 through 4.
When securing heel loop to the footrest assembly,
tighten mounting screw until the spacer is secure.

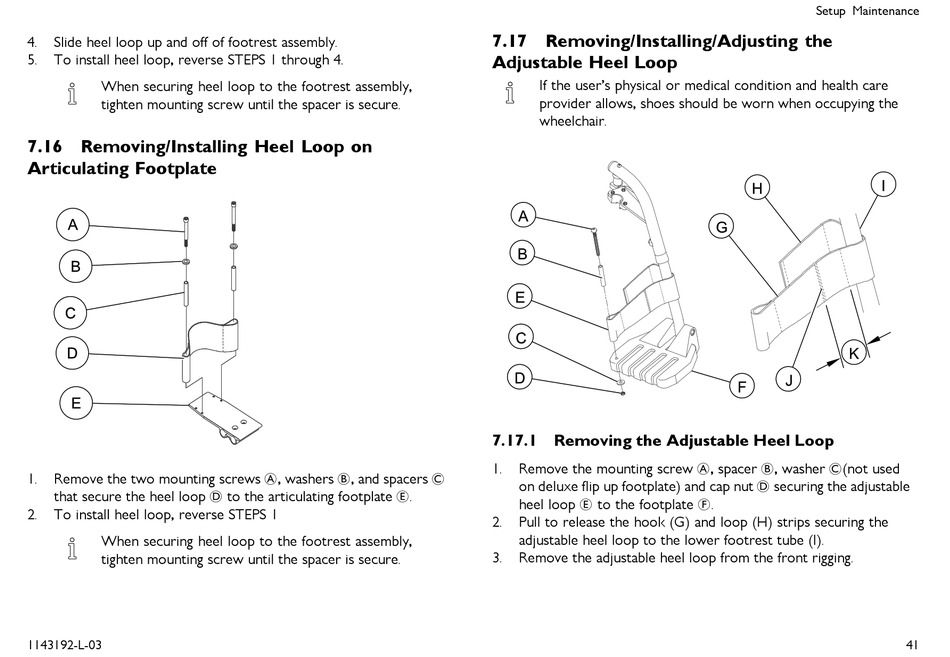

7.16 Removing/Installing Heel Loop on
Articulating Footplate
Remove the two mounting screws A, washers B, and spacers C
1.
that secure the heel loop D to the articulating footplate E.
2. To install heel loop, reverse STEPS 1
When securing heel loop to the footrest assembly,
tighten mounting screw until the spacer is secure.
1143192-L-03
7.17 Removing/Installing/Adjusting the
Adjustable Heel Loop
If the user's physical or medical condition and health care
provider allows, shoes should be worn when occupying the
wheelchair.

7.17.1 Removing the Adjustable Heel Loop

Remove the mounting screw A, spacer B, washer C(not used
1.
on deluxe flip up footplate) and cap nut D securing the adjustable
heel loop E to the footplate F.
2. Pull to release the hook (G) and loop (H) strips securing the
adjustable heel loop to the lower footrest tube (I).
3. Remove the adjustable heel loop from the front rigging.
Setup Maintenance
41
