Adjustable ASBA Seats

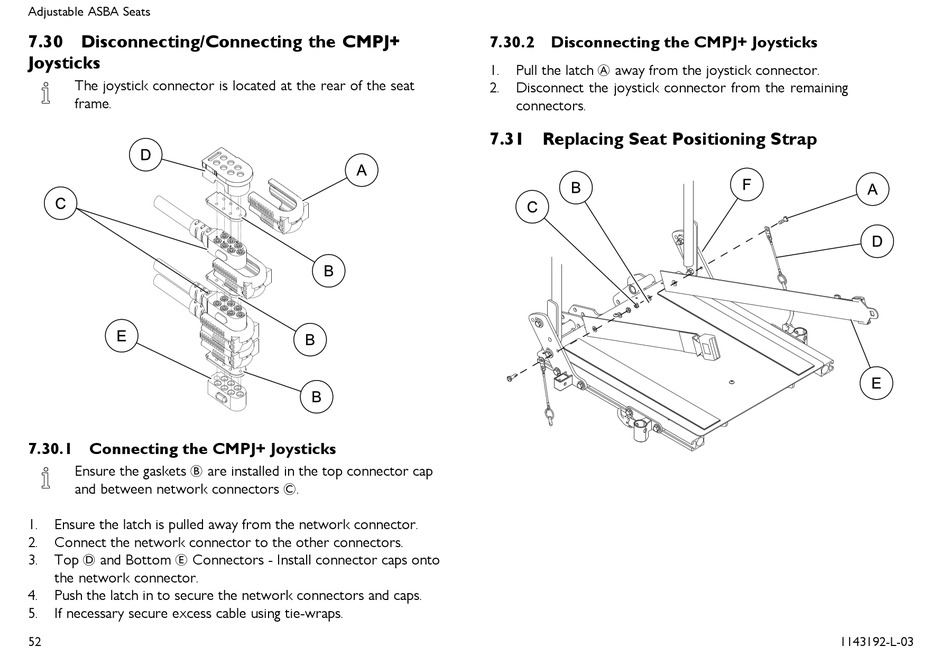

7.30 Disconnecting/Connecting the CMPJ+
Joysticks
The joystick connector is located at the rear of the seat
frame.

7.30.1 Connecting the CMPJ+ Joysticks

Ensure the gaskets B are installed in the top connector cap
and between network connectors C.
1. Ensure the latch is pulled away from the network connector.
2. Connect the network connector to the other connectors.
3. Top D and Bottom E Connectors - Install connector caps onto
the network connector.
4. Push the latch in to secure the network connectors and caps.
5. If necessary secure excess cable using tie-wraps.
52

7.30.2 Disconnecting the CMPJ+ Joysticks

1. Pull the latch A away from the joystick connector.
2. Disconnect the joystick connector from the remaining
connectors.

7.31 Replacing Seat Positioning Strap

1143192-L-03
