Adjustable ASBA Seats

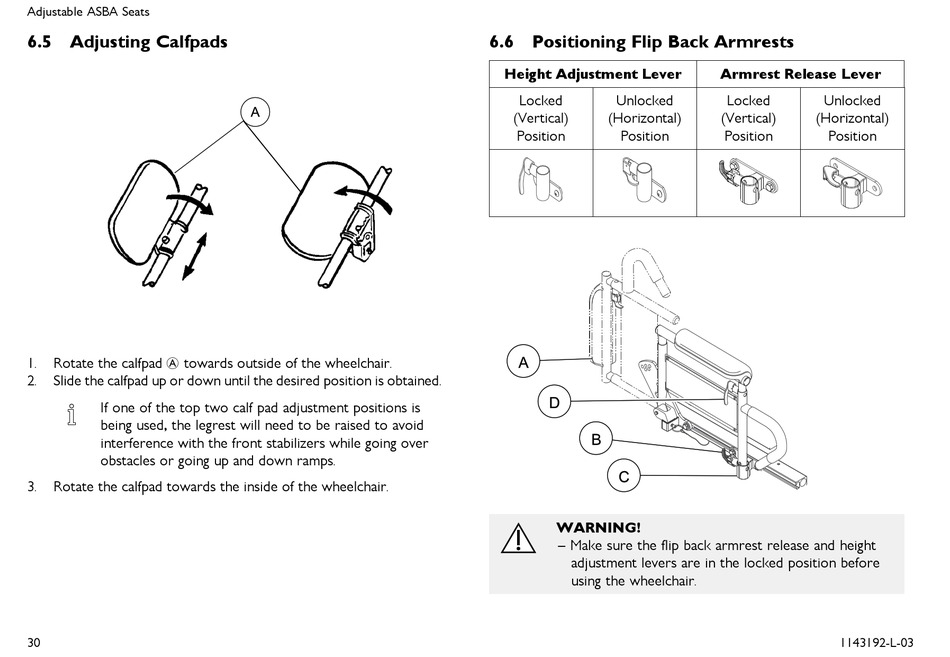

6.5 Adjusting Calfpads
Rotate the calfpad A towards outside of the wheelchair.
1.
2.
Slide the calfpad up or down until the desired position is obtained.
If one of the top two calf pad adjustment positions is
being used, the legrest will need to be raised to avoid
interference with the front stabilizers while going over
obstacles or going up and down ramps.
3.
Rotate the calfpad towards the inside of the wheelchair.
30
6.6 Positioning Flip Back Armrests
Height Adjustment Lever
Locked
Unlocked
(Vertical)
(Horizontal)
Position
Position
WARNING!
– Make sure the flip back armrest release and height
adjustment levers are in the locked position before
using the wheelchair.
Armrest Release Lever
Locked
Unlocked
(Vertical)
(Horizontal)
Position
Position
