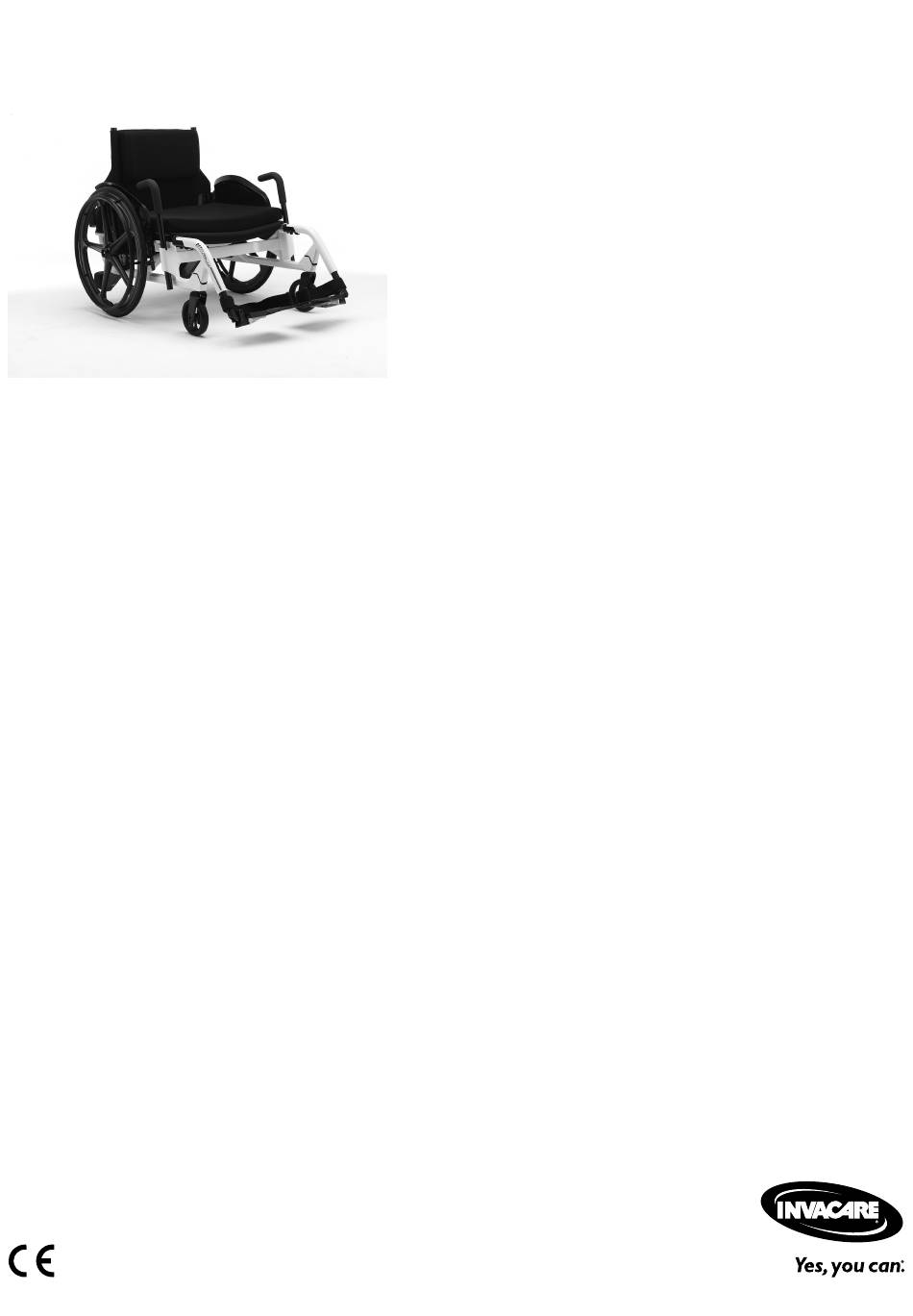

- Page 1 Invacare® Action® Ampla™ en Medium active wheelchair Service Manual PROVIDER: Keep this manual. The procedures in this manual MUST be performed by a qualified technician.
- Page 2 All rights reserved. Republication, duplication or modification in whole or in part is prohibited without prior written permission from Invacare. Trademarks are identified by ™ and ®. All trademarks are owned by or licensed to Invacare Corporation or its subsidiaries unless otherwise noted.
-
Page 3: Table Of Contents
Contents 1 General ......... 4 1.1 Introduction . -
Page 4: General
Invacare reserves the right to alter product specifications without further notice. Before reading this document, make sure you have the latest version. You find the latest version as a PDF on the Invacare website. For pre-sale and user information, see the user manual. -
Page 5: Safety
– Additional manuals can be ordered from Invacare. See addresses at the end of this document. – Due to regional differences, refer to your local Invacare catalog or website for available optional equipment or contact your local Invacare representative. See addresses at the end of this document. - Page 6 Invacare® Action® Ampla™ IMPORTANT! – If possible, continue to use the old identification label; if this is not possible, the new identification label must contain the same information and the old serial number. (Replacement of spare parts with serial numbers).
-
Page 7: Product Overview
Product Overview 3 Product Overview 3.1 Main parts of the wheelchair A Backrest with cushion B Clothes-guard C Seat with seat cushion D Parking brake E Transfer help F Hanger G Footplate H Castor fork with castor I Rear wheel with handrim 3.2 Dimensions 1650187-A... - Page 8 Invacare® Action® Ampla™ Seat width 505 mm Seat width 750 mm 1065 mm 1145 mm Overall length with leg rests Overall width 705 mm 960 mm Static stability downhill 26.5° Static stability uphill 36° Static stability sideways 24° Seat plane angle 5°...
-
Page 9: Servicing
Original spare parts must be used in all repairs. Otherwise the warranty and product declaration of conformity shall be rendered invalid. All spare parts must be obtained from the Invacare customer service department. An electronic spare parts catalogue can be found on your local Invacare website. -
Page 10: Reconditioning
Invacare® Action® Ampla™ 5 Reconditioning 5.1 Cleaning IMPORTANT! – The product does not tolerate cleaning in automatic washing plants, with high-pressure cleaning equipment or steam. IMPORTANT! Dirt, sand and seawater can damage the bearings and steel parts can rust if the surface is damaged. -
Page 11: Reconditioning Scheme
Reconditioning 5.4 Reconditioning scheme The following items must be reviewed and checked when reconditioning is required: Symptoms Faults Solution Incorrect tyre pressure on one The wheelchair does not Correct tyre pressure, see user manual rear wheel travel in a straight line Castor wheel bearings are dirty or Clean or replace the bearings or the complete castor damaged... -
Page 12: Instructions
Invacare® Action® Ampla™ 6 Instructions 6.1 Frame 6.1.1 Installing the frame supports The frame supports must be installed according to the positions in the tables below to meet the 2 different seat depths. Mudguard Fixation F F F in Pos. A:... -
Page 13: Seat
Instructions 6.2 Seat 6.2.1 Adjusting the front seat-to-floor height (FSTF) The front seat-to-floor height (FSTF) can be adjusted to four defined positions. Front seat-to-floor height (FSTF) according to castor fork position and castor wheel size Castor fork position FSTF Castor wheel Castor wheel [mm] size 5”... -
Page 14: Backrest
Invacare® Action® Ampla™ 6.3 Backrest 6.3.1 Replacing the backrest ■■□ Allen key (4 mm, 5 mm) / Adhesive Removing: 1. Remove bolts L, threaded axle sleeve C and screw E on both sides. 2. Remove the backrest plates B and O on both sides from the backrest A and the frame L. - Page 15 Instructions 1. Slide the backrest shroud A from above over the backrest frame B. 2. Mount the backrest shroud through its holes H to the backrest tube using bolts G. 3. Place the rubber spacers C into the holes of the backrest shroud.
-
Page 16: Leg Rests
Invacare® Action® Ampla™ 6.4 Leg rests The leg rests can be adjusted in 5 positions with steps of 25 mm. 6.4.1 Assembling the leg rest ■■□ Allen key (4 mm) 1. Place the nut B to the required position (1 – 5) in the telescopic tube C. - Page 17 Instructions 1. Remove bolt D from the leg rest hanger C. 2. Remove the footrest A. 3. Place the nut B in the required hole (pos. 1 - 5) in the footrest. 4. Reinsert the footrest into the leg rest hanger and secure with bolt through the nut.
-
Page 18: Sideparts
Invacare® Action® Ampla™ 6.5 Sideparts 6.5.1 Assembling the Mudguard ■□□ Allen key (4 mm) 1. Slide the mudguard support A into the mudguard B. 2. Secure both parts with bolt C. 3. Press the magnet D into the hole E. -
Page 19: Installing The Mudguard With Parking Brake
Instructions 1. Install the bearing D with washer E to the brake lever A using bolt C. 2. Completely slide the brake lever cover B on the brake lever end. 3. Install the brake lever to the mudguard using washer F, hub G and bolt H. - Page 20 Invacare® Action® Ampla™ 1. Install the stopper B into the required hole of the transfer help tube A using bolt C. Make sure that both clips H are placed in the transfer lever holder, see 6.1.1 Installing the frame supports, page 12.
-
Page 21: Castors
Instructions 6.6 Castors 6.6.1 Replacing the castor wheel ■□□ Allen key (3 mm) 1. Remove the sleeve nut E and bolt D. 2. Remove the castor wheel A with bearings B from the castor fork F. 3. Install the new castor wheel and the bearings in the required position of the castor fork. -
Page 22: Options
Invacare® Action® Ampla™ 1. Remove the castor wheel, see 6.6.1 Replacing the castor wheel, page 21. 2. Remove bolt L from the leg rest lock K. 3. Remove the nut J from the bolt E and remove washer(s) F, the castor fork D, washers G, insert H and sleeve I from the castor fork support A. -
Page 23: Installing The Transportation Bearing
Instructions 1. Dismount the transversal bar D with the form washer G from the vertical brace H by removing the adapter sleeve J and washer I on both sides. 2. Install the antitipper shoe F to the antitipper tube A using bolt E. - Page 24 Invacare® Action® Ampla™ 1. Dismount the transversal bar D with the form washer H from the vertical brace I by removing the adapter sleeve K and washer J on both sides. 2. Install the ball castors G to the transportation bearing support A using bolts E and square nut F.
-
Page 25: Installing The Push Bar
Instructions 6.7.3 Installing the push bar — ■□□ 1. Place both clamping parts B on the ends of the backrest tubes C. Make sure that the holes of the clamping parts are aligned with the holes of the backrest tube ends. 2. -
Page 26: Installing The Cane Holder
Invacare® Action® Ampla™ 1. Insert the drip stand rod A with its screw element B through the lock washer C and washer D into the required hole of the drip stand support E. 2. Secure the drip stand assembly to the drip stand support using the washer F and handle G by turning it clockwise. -
Page 27: Installing The Oxygen Holder
Instructions 1. Install the plastic casing A to the holder bar F using bolts B, spacers C, clamps D and nuts E. 2. Install the holder bar assembly to the cross brace G using the U-bolt H and nuts I. 3. -
Page 28: Installing The Posture Belt
Invacare® Action® Ampla™ 1. Install the tie-down shackles to the rear transversal bar E using bolts B and nuts C. 2. Install the tie-down shackles to the front frame F using bolts B and nuts C. The shackles must lie against the vertical bracing G. - Page 29 Notes...
- Page 30 Notes...
- Page 31 Notes...
- Page 32 Invacare distributors Asia: Australia: Belgium & Luxemburg: Danmark: Invacare Asia Ltd. Invacare Australia Pty. Ltd. Invacare nv Invacare A/S 1 Lenton Place, North Rocks NSW 2151 1 Lenton Place, North Rocks NSW 2151 Autobaan 22 Sdr. Ringvej 37 Australia Australia B-8210 Loppem DK-2605 Brøndby...
