Product 727002

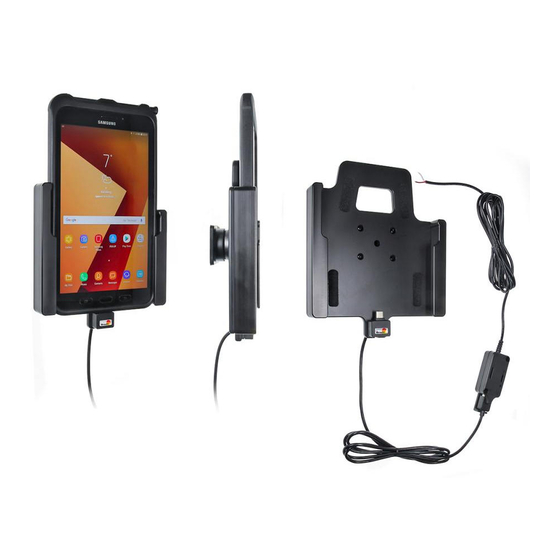

727002 Active holder for fixed installation Fits for devices with original skin. With tilt swivel.

This holder is equipped with a cable for fixed installation for charging of your device. It provides a discreet and

neat installation without any visible cables. 12/24 Volt. The product is E-approved. Connect the power cable with

a 2 A fuse. 2 A charger. Professional installation recommended. The holder is mounted onto a tilt swivel so you

can adjust the angle and switch between portrait and landscape mode.

Tablets should not be installed onto a car's dashboard if they block the view or block key controls. The ProClip is

designed for installation of smaller devices (phones), not for large devices (tablets). If you want to place a tablet

onto the car's dashboard, each combination of tablet-car must be examined in detail by you in order to determine

if such an installation is possible in the specific case. Consideration should be given to the position and how firmly

the ProClip is in place, as well as the size of the tablet you wish to use. Brodit will not give any recommendations

for such installations.

An installation of a tablet onto a vehicle's dashboard is always done on the customer's own responsibility. Brodit

recommends to use tablets on the car's headrest, installed onto a Brodit headrest mount.

This product supports Qualcomm QC 2.0 quick charge (provided the device supports Qualcomm QC 2.0 quick

charge).

EAN: 7320287270020

Item no 727002 fits:

Samsung Galaxy Tab Active 2. SM-T390/SM-T395 (For all countries)

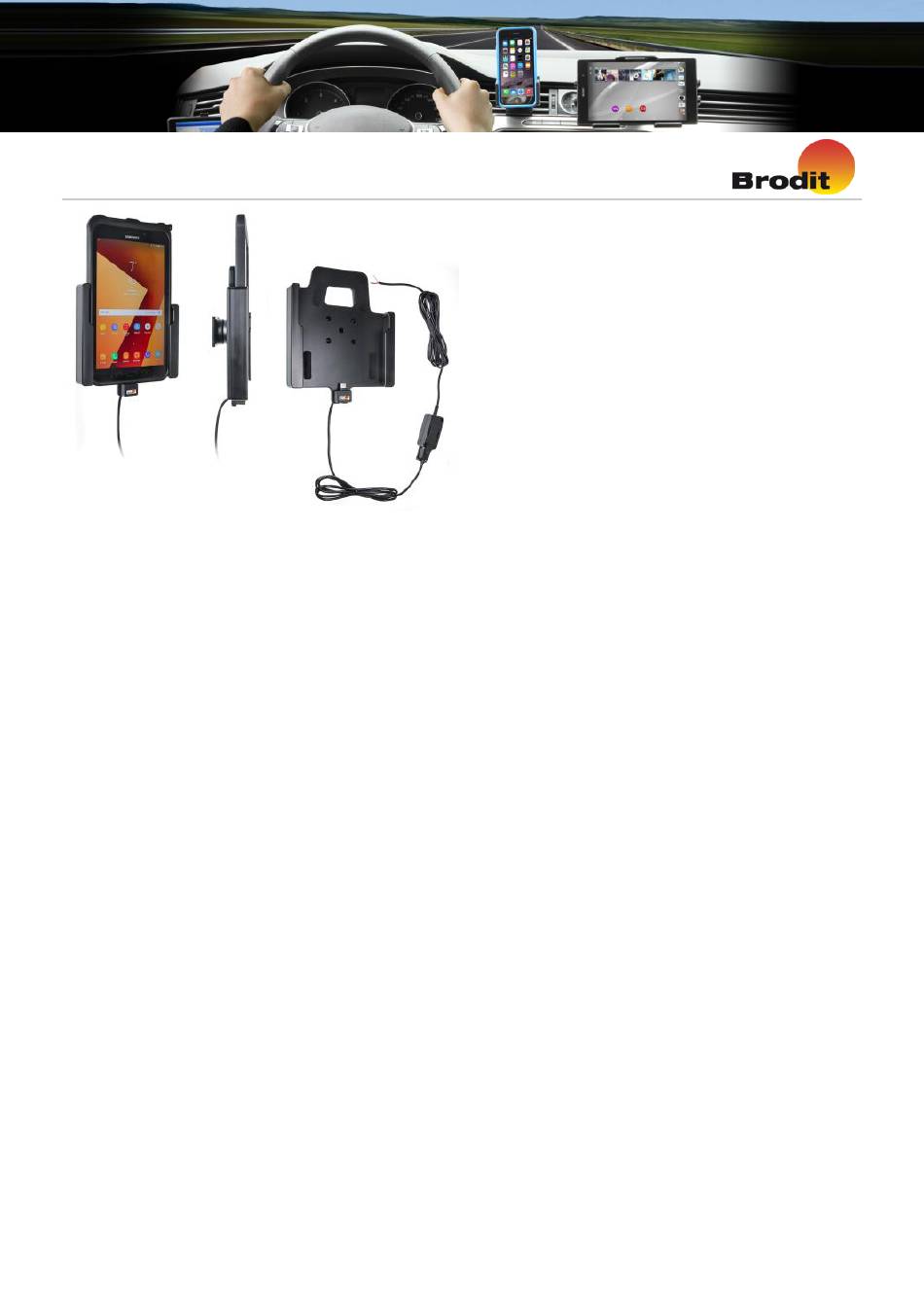

Page 1 Consideration should be given to the position and how firmly the ProClip is in place, as well as the size of the tablet you wish to use. Brodit will not give any recommendations for such installations.
Page 2 INSTALLATION INSTRUCTIONS Read all of the instructions and look at the pictures before attaching the holder. The charger unit is fused internally with 2 A automotive re-settable thermal fuse, but if an external fuse is to be installed then connect a 2 A fuse holder and fuse inline with the Red wire close to the power source.
