Product 711148

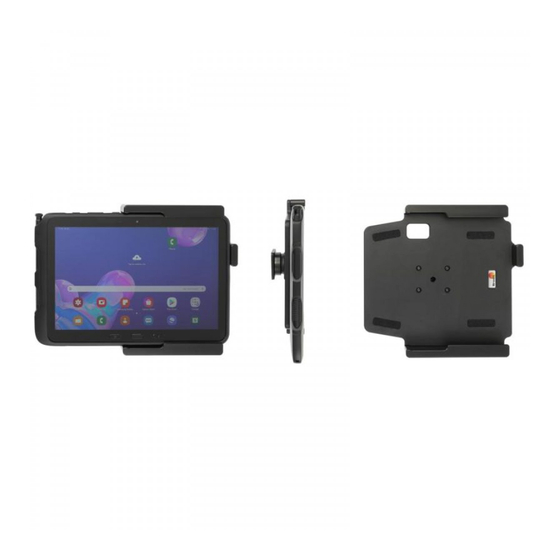

711148 Passive holder with tilt swivel Fits for devices with original skin.

With your tablet in a holder attached in your car you will always have it within easy reach. Safe, neat and

convenient! You have full access to the camera and all buttons and outlets when the device is in the holder. You

can connect a charging cable to the device when it is in the holder. The passive hodler has a perfect firm fit for

device with original skin.

The holder is mounted onto a tilt swivel. This mean that you can adjust the angle in order to avoid light reflection

on the screen. You can easily switch between portrait and landscape mode by turning the holder into desired

position. It is easy to put the device into place in the holder, and to take it with you when leaving the car. Tilts 17°

and swivels 360°. Mounting plate 42x50 mm with 4 mm AMPS-holes. Made of high grade black ABS/Acetal

plastic. Made in Sweden. Attach onto a Pedestal mount or a headrest mount.

Tablets (Surfpads) should not be installed onto a car's dashboard if they block the view or block key controls.

ProClip (Brodit's vehicle mounting bracket) is designed for installation of smaller devices like mobile phones and

GPS devices, ProClip is not designed for large devices like tablets. In some vehicles the ProClip has an extra firm

fit and can then be used also for installation of a tablet. If you want to place a tablet onto the car's dashboard,

each combination of tablet-car must be examined in detail by you in order to determine if such an installation is

possible in the specific case. Consideration should be given to the position and how firmly the ProClip is in place,

as well as the size of the tablet you wish to use. Brodit will not give any recommendations for such installations.

An installation of a tablet onto a vehicle's dashboard is always done on the customer's own responsibility.

EAN: 7320287111484

NEW!

Item no 711148 fits:

Samsung Galaxy Tab Active Pro T540/T545/T547/T547U (For all countries)

Page 1 Consideration should be given to the position and how firmly the ProClip is in place, as well as the size of the tablet you wish to use. Brodit will not give any recommendations for such installations.
Page 2 INSTALLATION INSTRUCTIONS Please read all of the instructions and look at the pictures before attaching the holder. 1. Loosen the screw in the center of the holder so you can remove the tilt swivel attaching plate on the back. 2. Place the attaching plate onto the desired position. Screw the attaching plate into place with the enclosed screws.
