Product 727196

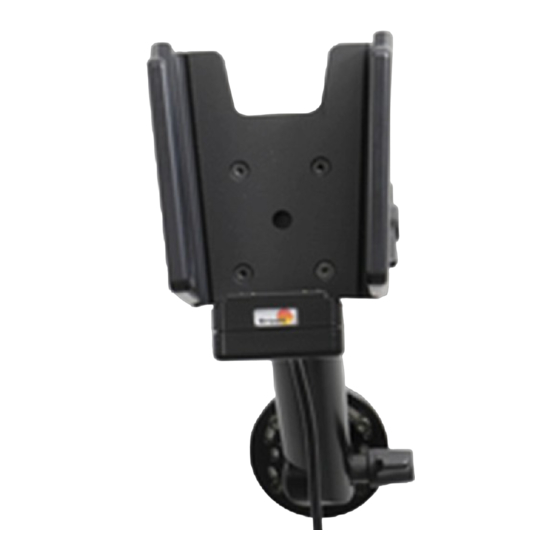

727196 Active holder for fixed installation With Easy-switching system. Charging via pogo pins. 12/24V.

An active holder which is to be connected inside the dashboard, this gives a discreet, neat installation without

cables hanging over the interior!

Easy-switching system:

The easy-switching system enables you to upgrade the holder only, and keep the installed cables. It saves you a

lot of time! When upgrading to a new device, you do not longer need to make a full installation. Same goes for

maintenance in case of warranty or damage. You simply disconnect the holder from the charging cable via the

Molex 6-pin quick connector, and then connect the new holder. The switch is done in a few seconds.

Made of high grade black ABS/Acetal plastic. Made in Sweden. Attach onto a Pedestal Mount or an ProClip

mounting platform.

EAN: 7320287271966

Item no 727196 fits:

Janam XG200 (For all countries)

Point Mobile PM550 (For all countries)

Page 1 29 November, 2020, www.brodit.com, © 2020 Brodit AB Product 727196 727196 Active holder for fixed installation With Easy-switching system. Charging via pogo pins. 12/24V. An active holder which is to be connected inside the dashboard, this gives a discreet, neat installation without...
Page 2 INSTALLATION INSTRUCTIONS Please read all of the instructions and look at the pictures before attaching the mount. 1. Place the holder into the desired position. 2. Attach the holder with the enclosed screws. 3. Put the device in place: Hold the device above the mount. Slide/press it straight into the mount so it is porperly held in place.
