Brodit 752271 Instructions

TELEPÍTÉS

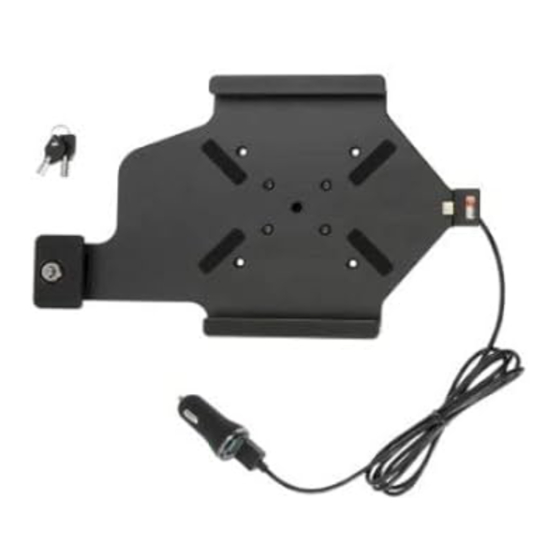

Holder with key-lock

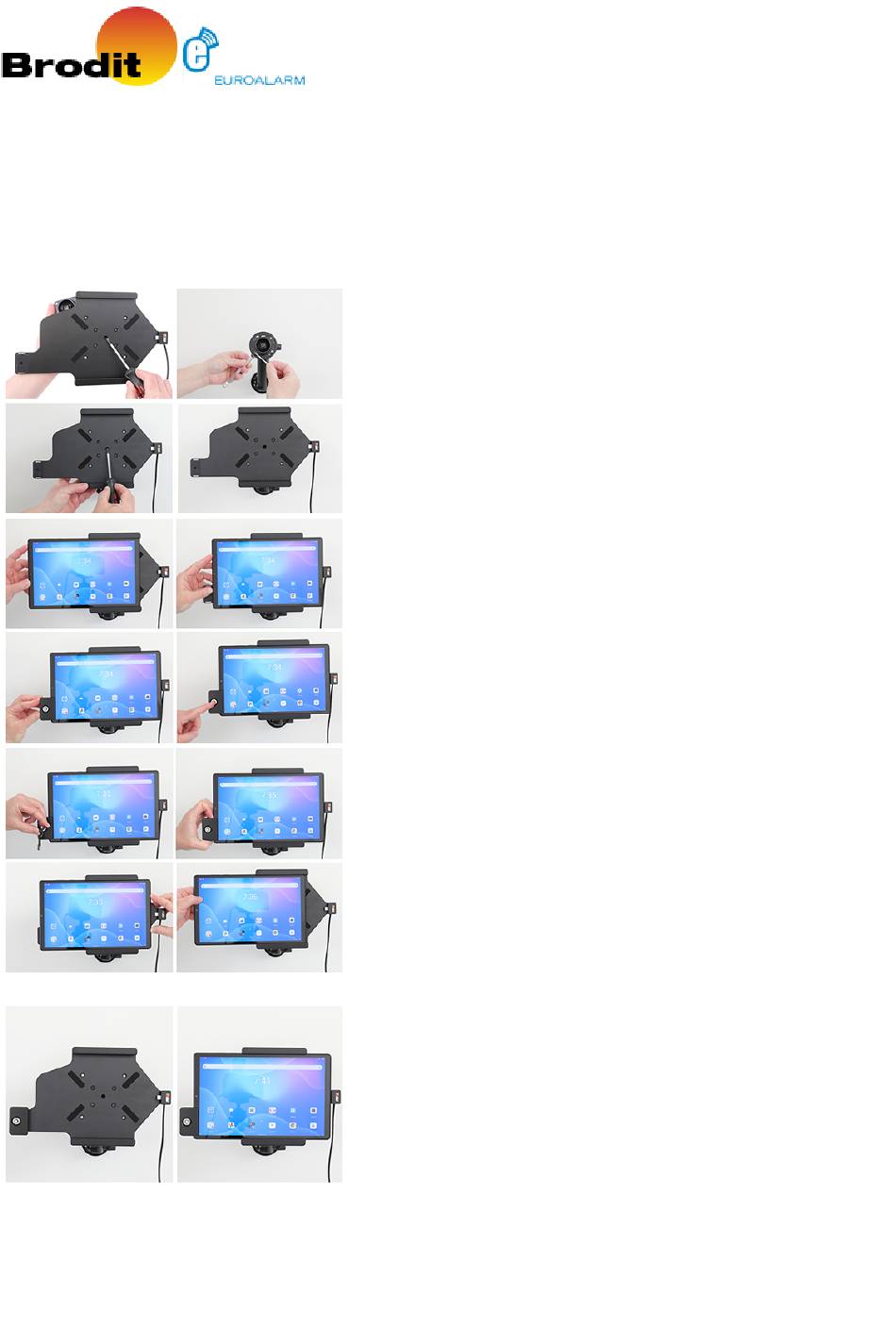

Please read all of the instructions and look at the pictures before attaching the holder.
1. Loosen the screw in the center of the holder so you can
remove the tilt swivel attaching plate on the back. Place the
attaching plate onto the desired position. Screw the
attaching plate into place with the enclosed screws. Place
the holder over the attaching plate so the screw fits in the
hole in the tilt swivel. Screw the holder onto the attaching
plate. Tighten the screw so the holder is firmly in place, but
still can be adjusted.
2. Slide the device sideways carefully into the holder. Press
the lock sideways onto the left part of the holder. Press the
button to lock.
3. Use the enclosed key to open the lock. Remove the lock
by slidning it sideways away from the holder. Slide the
device sideways out of the holder.
4. The holder is in place. Switch between portrait and
landscape mode by turning the holder into desired position.
