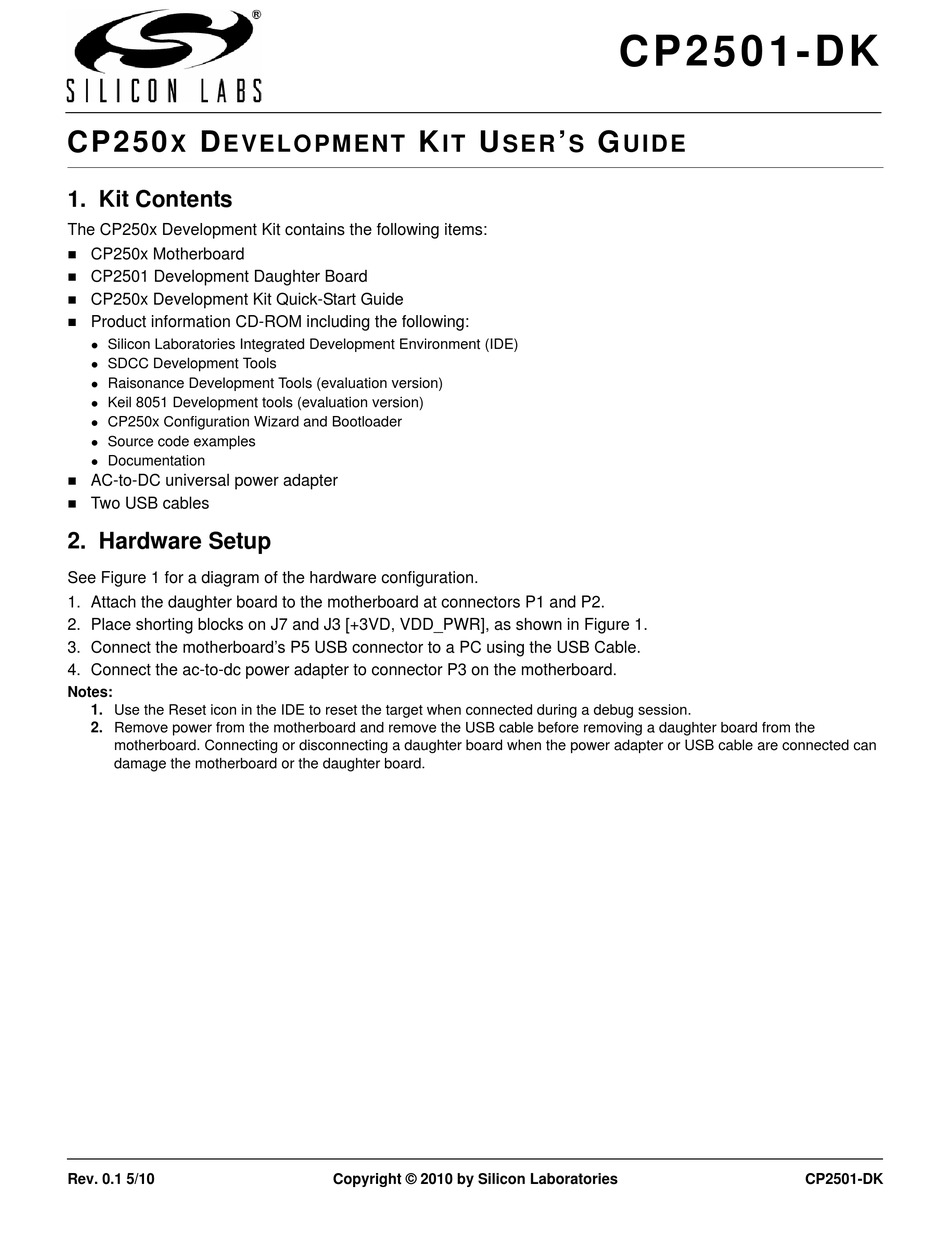

1. Kit Contents
The CP250x Development Kit contains the following items:
 CP250x Motherboard
 CP2501 Development Daughter Board
 CP250x Development Kit Quick-Start Guide
 Product information CD-ROM including the following:
Silicon Laboratories Integrated Development Environment (IDE)

SDCC Development Tools

Raisonance Development Tools (evaluation version)

Keil 8051 Development tools (evaluation version)

CP250x Configuration Wizard and Bootloader

Source code examples

Documentation

 AC-to-DC universal power adapter
 Two USB cables
2. Hardware Setup
See Figure 1 for a diagram of the hardware configuration.
1. Attach the daughter board to the motherboard at connectors P1 and P2.
2. Place shorting blocks on J7 and J3 [+3VD, VDD_PWR], as shown in Figure 1.
3. Connect the motherboard's P5 USB connector to a PC using the USB Cable.
4. Connect the ac-to-dc power adapter to connector P3 on the motherboard.
Notes:
1. Use the Reset icon in the IDE to reset the target when connected during a debug session.
2. Remove power from the motherboard and remove the USB cable before removing a daughter board from the
motherboard. Connecting or disconnecting a daughter board when the power adapter or USB cable are connected can
damage the motherboard or the daughter board.
