2. PREPARATION

2.1 Unpacking and Checking
Shipment

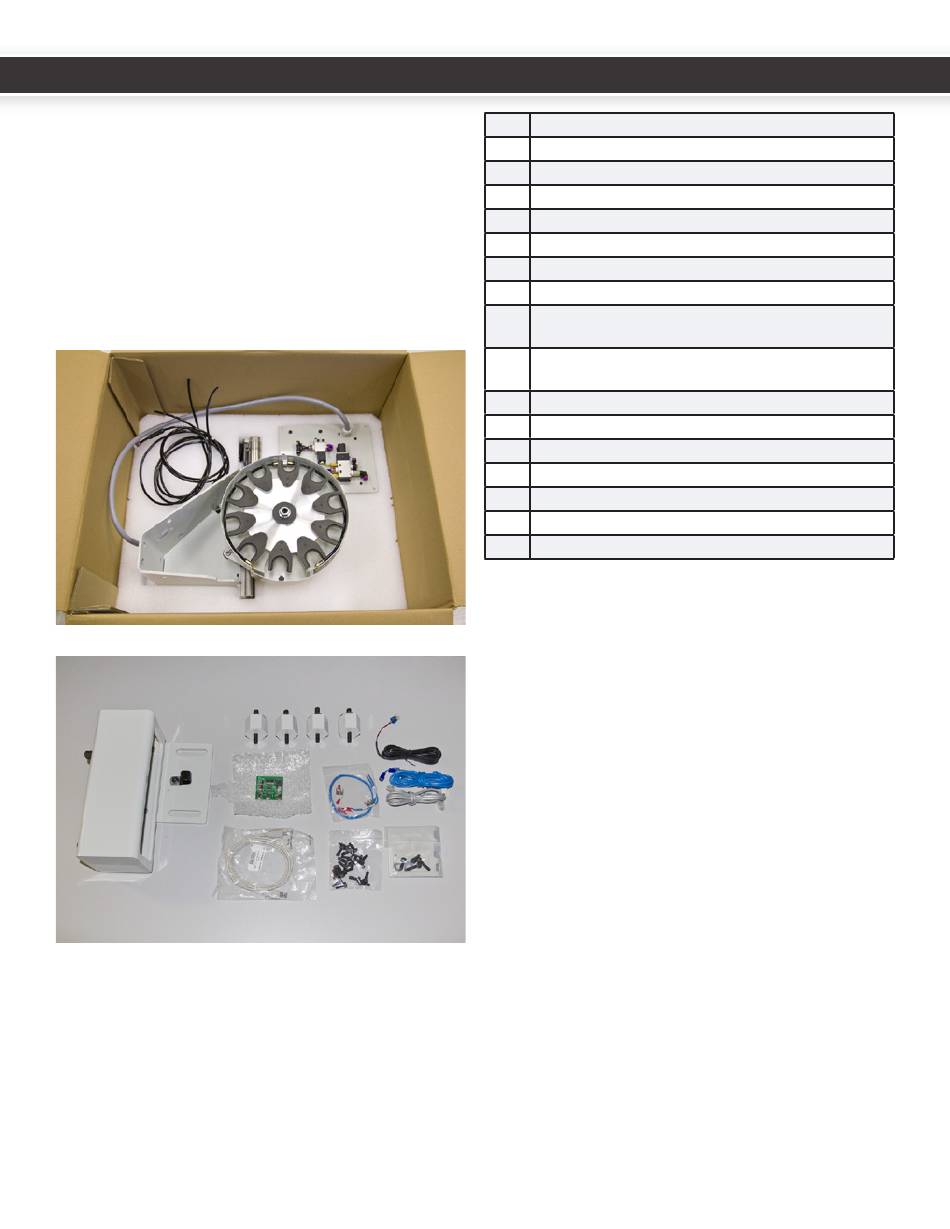

Upon receipt, carefully unpack the ATC and inspect to
ensure damage did not occur in transit and also to account
for all parts. If any damage is apparent, or parts missing,
please contact Tormach immediately.
With an assistant, lift the ATC onto a sturdy surface or
workbench to prepare it for use.
UM10081_TTS_ATC_PCNC1100_1013A
1 1 ATC assembly
2 4 ¼" air lines, one w/ check valve and push fitting
3 1 ATC square tube mount
4 4 hex standoffs with M8 and M10 studs
5 4 flange nuts and washers
6 20 nylon M6x16 hex bolts
7 1 USB cable
8 1 ATC communication RJ-11 cable (512-515)
9 1 Main power cable (503,504) terminated with 4 pin
Molex and spades
10 1 PDB power cable (501,502) terminated with PDB con-
nector and spades
11 1 VFD interconnect wiring kit (532-535)
12 1 coolant hose mounting plate w/ fasteners
13 Power Draw Bar power supply board
14 1 R8 TTS expanded collet
15 Operator's Manual
16 Software installation CD
17 2 5X20 glass fuses
The following items may or may not be included based on
the age of your machine and power draw bar installation:
1.
1 draw bar with 8 Belleville washers
2.
Power Draw bar control circuit board (if required based
on age of your power draw bar installation.)
3.
DC Bus Board
Check these items. Notify Tormach of any damage incurred
during transit or missing parts so any claims can be made
within the shipping carrier's deadline.
