INSTALLATION
Electrical Installation
WARNING - Failure to heed the following may result in permanent injury or death.
RISK OF ELECTRICAL SHOCK - Disconnect all AC power when installing or servicing this system.
l
Follow all state, local, and National Electrical Code(s) (provincial and Canadian Electrical Code(s) if
applicable). Use copper conductors only.
RISK OF ELECTRICAL SHOCK - All electrical connections should be made by a licensed electrician or
l
certified electrical contractor.
CAUTION - Failure to heed the following may result in equipment damage.
Connecting 230 Vac to a unit that has been configured to 110-120 Vac will result in permanent damage
l
to the unit. Damage due to incorrect wiring is not covered under the warranty.
Mounting the Power Center
Choose a mounting location for the power center that is close to the circulation pump electrical
source.
The power center should be mounted in a vertical position on the wall (flat surface), no more
than 15 ft. (4.6 m) away from the ChlorSync
Electrical conduit (rigid or flexible) must be used and installed as per NEC guidelines.
Circuit Protection: Single-pole 20 AMP device for 115V installations, or a two-pole 20 AMP
device for 220V installations, at the electrical panel.
Input: 95-130 VAC, 50/60Hz, 220 Watts (2 AMP) or 220-240 VAC, 50/60Hz, 220 Watts (1 AMP).
Output: 22-39 VDC @ 7.5 AMPS maximum from the power center.

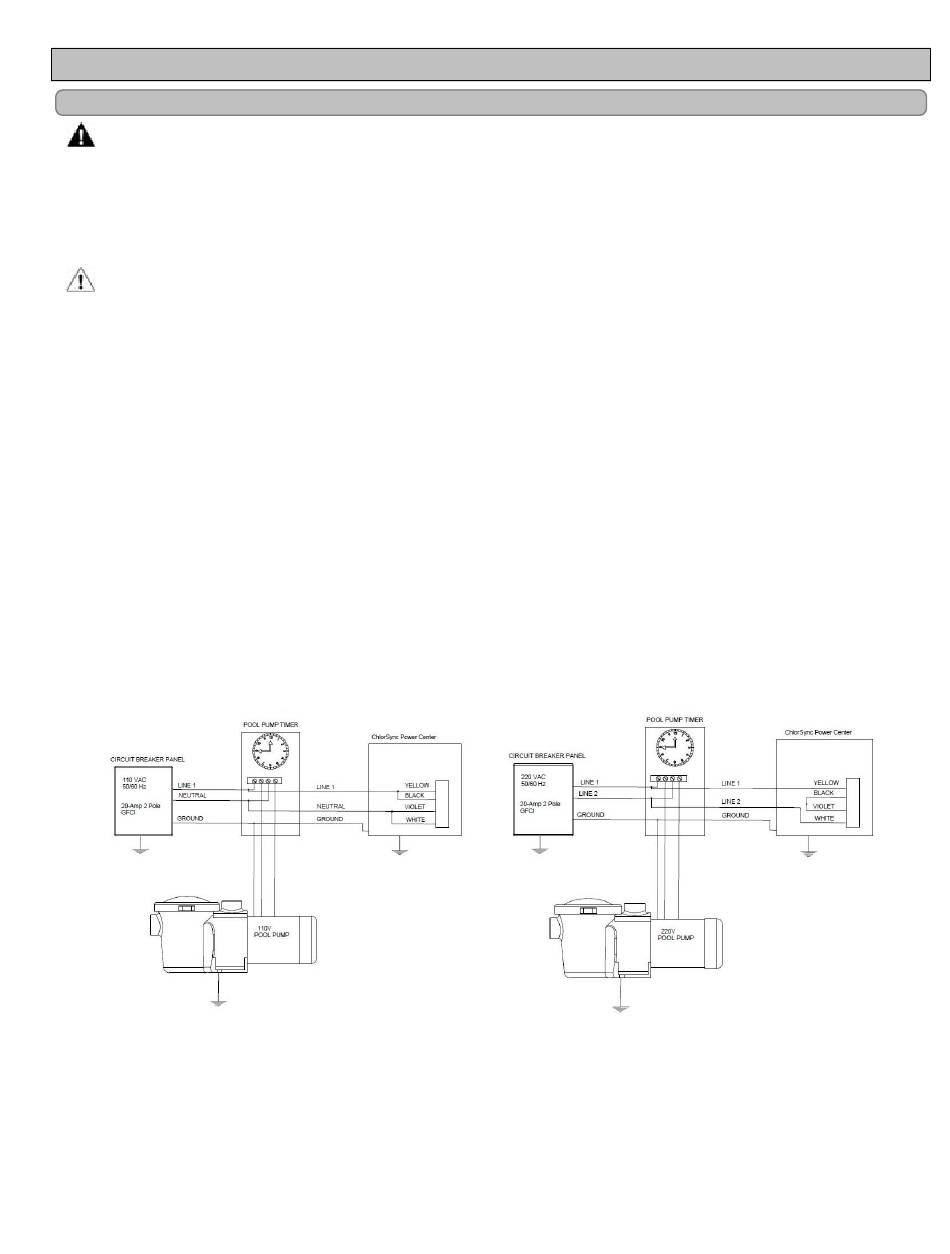

110VAC Basic System Wiring
Figure 8
Connect power to the LINE side.
®
cell. The wiring inputs should be facing downward.
220VAC Basic System Wiring
Figure 9
Page - 19
